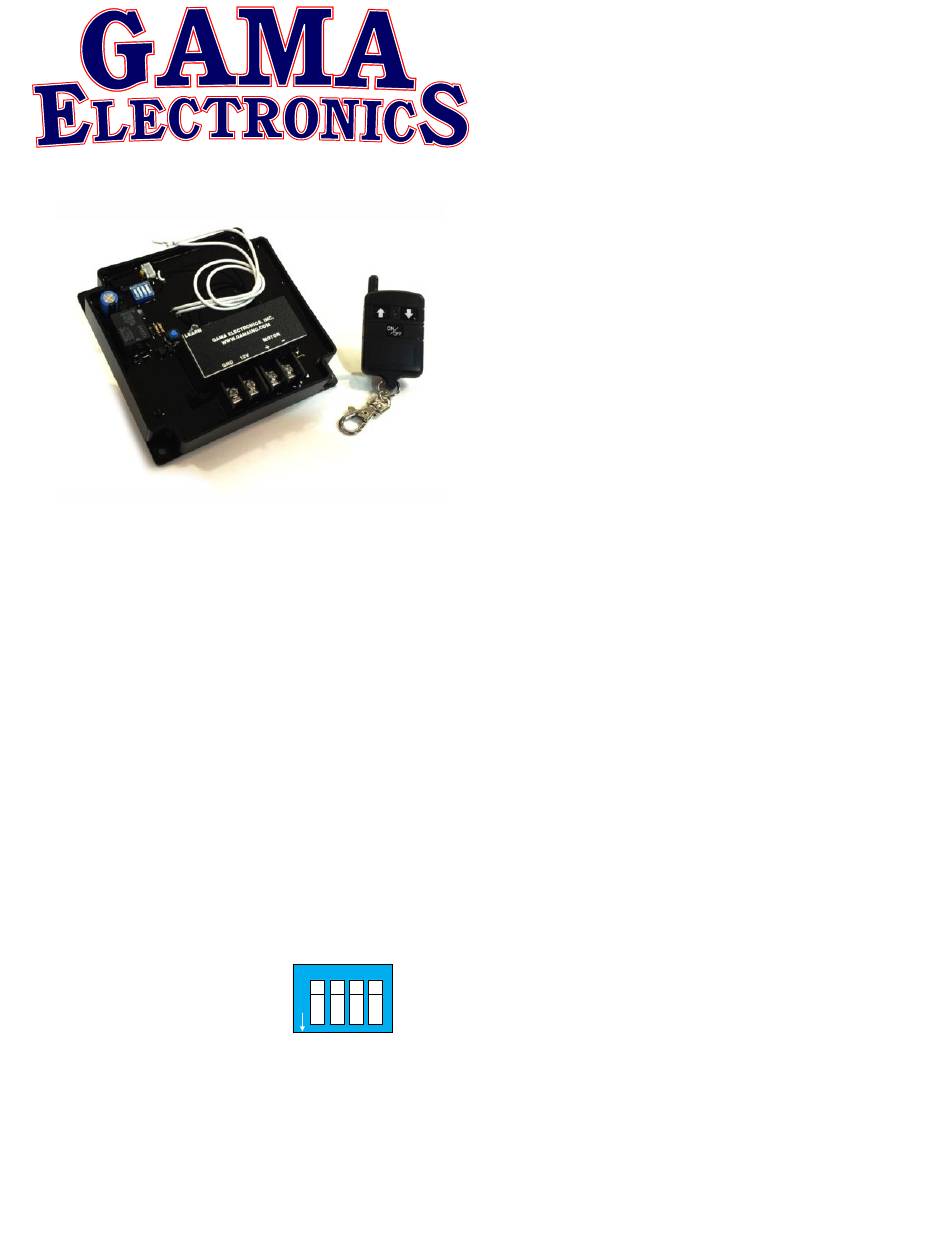

GAMA Electronics LRF12VPRWP-WPE-WPTX Instruction Manual

WWW.GAMAINC.COM
This receiver is a 340 MHz polarity reversing remote control. It is intended to be used in conjunction with the P44066
Transmitter. The receiver can be configured for either momentary or latching operation. The unit operates from 12VDC
and provides a 12VDC polarity reversing output. A third auxiliary relay provides a contact closure. All of the electronic
components are encapsulated so the receiver is capable of being operated in harsh environments.
Operating Temperature Range: 0°F to 160°F
Maximum Ratings: Power for the receiver can be in the range of 10VDC to 15VDC. It is recommended that a 12V deep
cycle marine battery be used to power the receiver. The receiver is reverse polarity protected.
Power Consumption: 10 Milliamperes when the relay is de-energized. 45 Milliamperes when the relay is energized.
Input/output Connections: 12VDC input power connects to the terminals marked "12V" and "GND" on the top panel of
the receiver. The two white wires provide a set of dry contact closures using the ON/OFF switch position on the
transmitter.
Dimensions: Receiver dimensions are 5.0"W x 5.0"D x 1.5"H. The receiver weighs 1.0 lb.
Dip Switch:
Switches Up= Latching Mode
Switches Down= Momentary Mode
Turning any of the 4 DIP switches to the On position enables the corresponding latching function. Pressing the transmitter
button once will energize the relay output. Pressing the same button a second time will de-energize the relay output. If the
DIP switches are in the Off position, the corresponding relay will have a momentary function. In this mode, the relays are
energized for as long as the transmitter button is depressed. Momentary and latching functions can be intermixed as
desired
O
1 2 3 4
F
F
RFR12VPRWP
Instruction Manual

Included in this Kit:

(1) RFR12VPRWP Receiver
(1) 3-Button Transmitter
Available accessories:
- Standard Transmitter P44066
- Waterproof Transmitter KF340-3WP
- Rechargeable Transmitter GKF-WPTX-3
- Long Range Antenna LRA-340
- Waterproof Enclosure GWE-663-812
- Clear Protective Transmitter Pouch ZLB-67
- 6-Pack of Replacement A-23 12V Batteries for
Transmitter A23-6

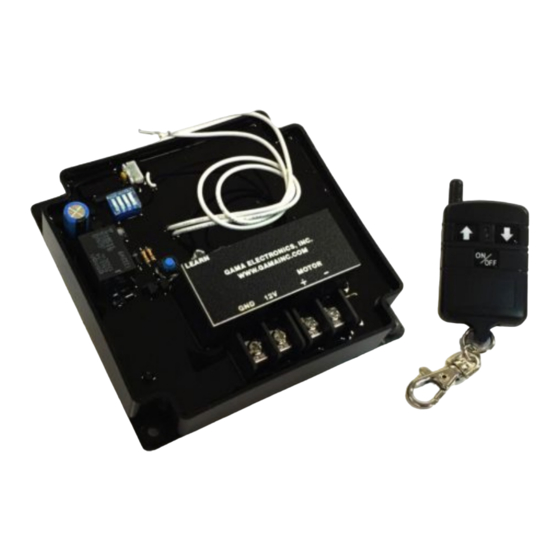

*Image shown with standard transmitter*
Page 1 REV A 06/17/20
