The RFAC-1L is a RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 120VAC to 240VAC
input power and provides one AC output at the input voltage. The receiver operates with Model KF340-2 transmitter. Up to
30 transmitters can be stored in the receiver's memory, and are programmed into the receiver's memory during the
programming process. A manual On/Off button will operate the control without the need for a remote control. The On/Off
button is also used to program remote controls to the receiver. An LED on the On/Off switch indicates the receiver's
programming status and illuminates when the relay is energized. The receiver is encased in a small, waterproof
enclosure. The receiver provides two wires for input power and two wires for output power. The unit operates a single
latching output. The relay will toggle on and off each time a switch is pressed on the transmitter.
Operating Temperature Range: 0°F to 160°F
Waterproof Rating: IP67
Maximum Ratings: Power for the receiver can be in the range of 100-250VAC. The output is rated at 1HP 20A @
120VAC and 1 1/2 HP 20A @ 240VAC.
Input/output Connections: 100-250VAC input power connects to the Black (line) and White (Neutral) wires. Output
power, identical to the input power, connects to the Blue (line) and Yellow (neutral) wires.
Dimensions: Receiver dimensions are 4.00"W x 2.00"D x 3.67"H.
RFAC-1L
Instruction Manual
Included in this Kit:
(1) RFAC-1L Receiver
(1) 2-Button Transmitter
Available accessories:
- Additional Transmitter KF340-2
- Waterproof Transmitter KF340-2WP
- Rechargeable Transmitter GKF-WPTX-2
- 6-Pack of Replacement A-23 12V Batteries A23-6
- Long Range Antenna LRA340A

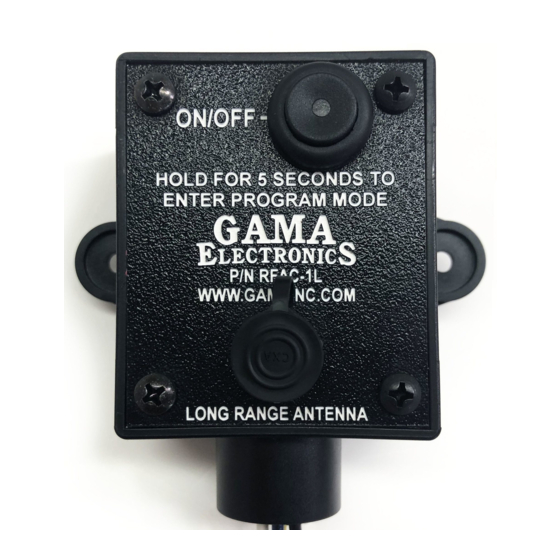

*Image shown with standard transmitter*
**SEE PAGE 3 FOR SETUP**
Page 1 REV O 09/10/20
Advertisement
Table of Contents
Related Manuals for GAMA Electronics RFAC-1L
Summary of Contents for GAMA Electronics RFAC-1L
- Page 1 **SEE PAGE 3 FOR SETUP** The RFAC-1L is a RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 120VAC to 240VAC input power and provides one AC output at the input voltage. The receiver operates with Model KF340-2 transmitter. Up to 30 transmitters can be stored in the receiver’s memory, and are programmed into the receiver’s memory during the...
- Page 2 RFAC-1L Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique address. The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter.
- Page 3 100 feet. When additional range is needed, or if the control is placed locations adverse to RF signal reception, a long range antenna can be added to the system. GAMA Electronics long range antenna, part number LRA-340A, replaces the internal antenna on the system. In normal operating conditions expected range is greater than 500 feet.
- Page 4 RFAC-1L Instruction Manual WWW.GAMAINC.COM 3.18” 2.50" ON/OFF HOLD FOR 5 SECONDS TO ENTER PROGRAM MODE P/N RFAC-1L WWW.GAMAINC.COM Dia. 0.20” TYP (2) LONG RANGE ANTENNA 10" Page 4 REV O 09/10/20...
- Page 5 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be at least 2-3 feet away from the receiver when operating the remote control.
