WWW.GAMAINC.COM
Overview:
The RF12V1PR-LS is an RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 12-Volts DC and
provides a polarity reversing output. The polarity reversing output incorporates current sensing that will monitor the output current
and turn off the output when the operating current exceeds the current setting of the switch. Limit switch inputs are included that will
interrupt the output when the limit switch is contacted. The receiver includes two inputs that are used with a manual switch to
control the polarity reversing output. The receiver also has a 12-Volt light output.
The transmitter has 3-switches, two for the control of the polarity reversing output and one to activate the light output. The receiver
can be configured to operate the output in momentary or latching mode. Up to thirty, three-button transmitters (model KF340-3) can
be used to activate the receiver's output. Each transmitter has a unique address that is transmitted when a button is pressed. A
"program" button is provided on the receiver to program the transmitter(s) address into the receiver's memory. An LED on the
receiver indicates the receiver's programming status and illuminates when either relay is energized.
The receiver includes inputs for manual control of the polarity reversing output. The inputs are labeled "UP Manual" and "Down
Manual".
The receiver electronics are encapsulated in a 5" x 5" x 1" mounting tray. The operating range is at least 100 feet.
Maximum Ratings: Power for the receiver can be in the range of 10 to 15Vdc. The receiver is reverse polarity protected. The relay
contacts are rated at 35 Amps @ 13.8Vdc.
Power Consumption: 10mA when the relays are de-energized, 45mA when the relay is energized.
Input Power Connection: 12Vdc power connects to the +12V and GND terminals.
Output Connection: The output of the receiver is connected to the terminals labeled "To Motor".
RF12V1PR-LS
Instruction Manual
Included in this Kit:
(1) RFR12V1PR-LS Receiver
(1) 3-Button Transmitter
Available accessories:
- Additional Transmitter KF340-3
- Waterproof Transmitter KF340-3L-WP
- 6-Pack of Replacement A-23 12V Batteries A23-6
- Long Range Antenna LRA340

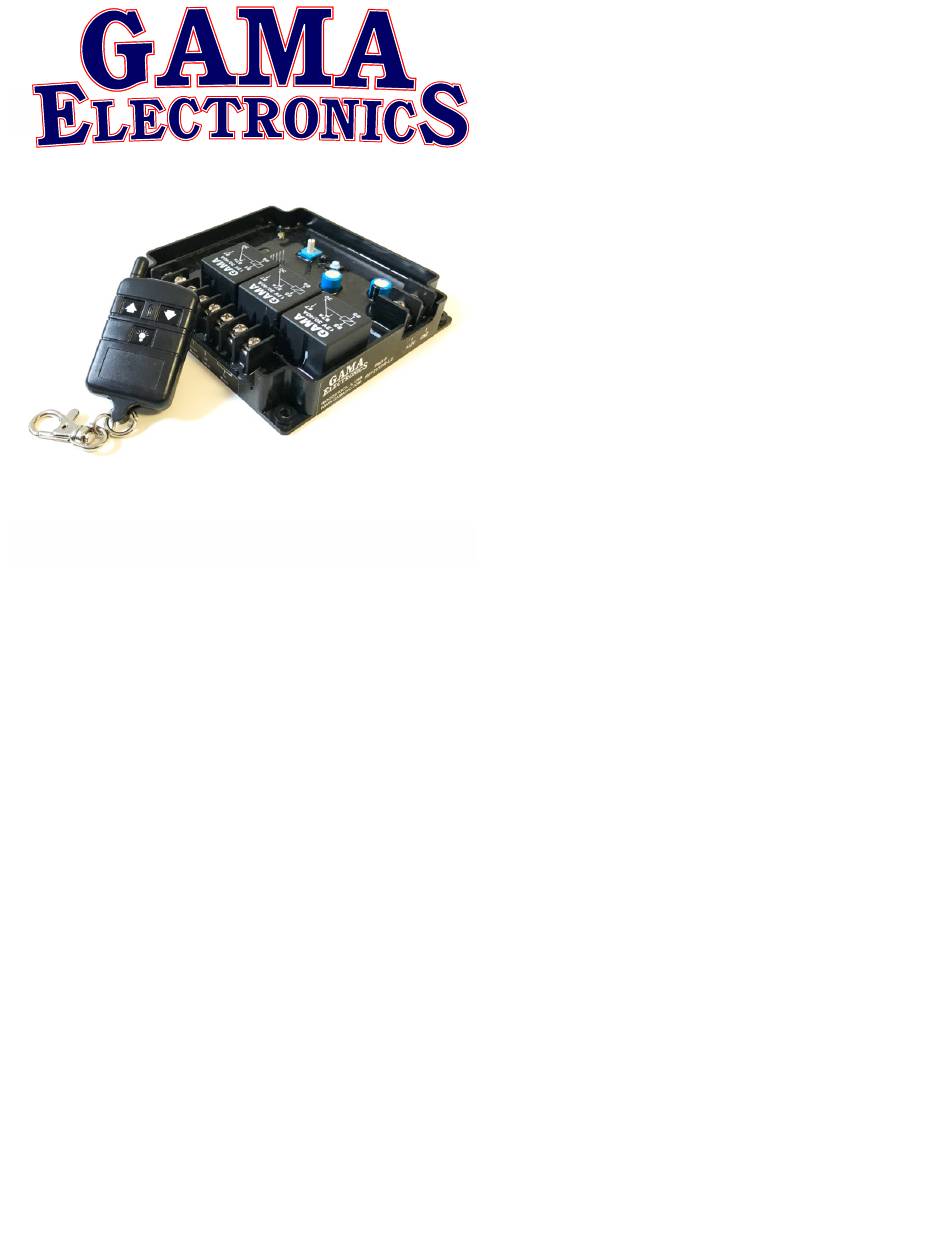

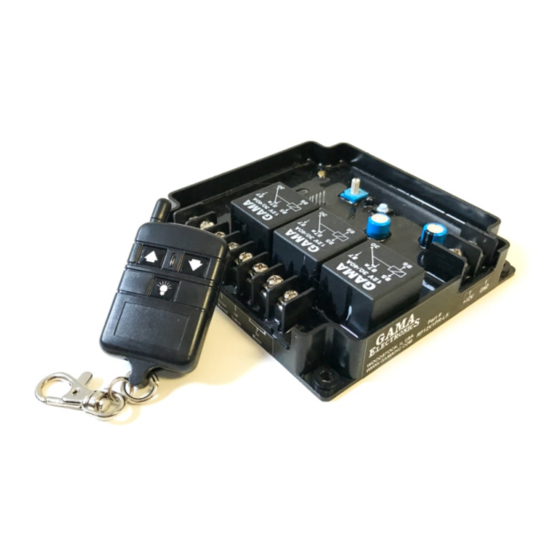

*Image shown with standard transmitter*
**SEE PAGE 3 FOR SETUP**
Page 1 REV B 02/25/21
Advertisement
Table of Contents
Related Manuals for GAMA Electronics RF12V1PR-LS
Summary of Contents for GAMA Electronics RF12V1PR-LS
- Page 1 Overview: The RF12V1PR-LS is an RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 12-Volts DC and provides a polarity reversing output. The polarity reversing output incorporates current sensing that will monitor the output current and turn off the output when the operating current exceeds the current setting of the switch.
- Page 2 RF12V1PR-LS Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique internal address along with the data as to which button is pressed and transmitted. The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter.
- Page 3 100 feet. When additional range is needed, or if the control is placed locations adverse to RF signal reception, a long range antenna can be added to the system. GAMA Electronics long range antenna, part number LRA- 340, replaces the internal antenna on the system. In normal operating conditions expected range is greater than 500 feet.
- Page 4 RF12V1PR-LS Instruction Manual WWW.GAMAINC.COM Wiring and Features Limit Switch Inputs: The receiver has provisions for two normally closed limit switches (not included with the remote control system). The provision on the receiver terminal block are labeled LIMIT UP and LIMIT DOWN. The receiver must see a +12V signal on these lines to operate with the remote control or the manual switch in the UP or DOWN direction.
- Page 5 RF12V1PR-LS Instruction Manual WWW.GAMAINC.COM Current Sensing Instructions Output Current Sensing: The current sensing circuit will monitor the output current and turn off the output and reset the output for 5-seconds when the output current exceeds the current trip setting of the switch. The output current sensing is adjustable from 5-Amperes to 35-Amperes.
- Page 6 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
