GAMA Electronics LRF240V-2WP Instruction Manual

WWW.GAMAINC.COM
The RF240V-2WP is a 340MHz AC motor control, intended to be used in conjunction with a 2-Button transmitter. The
receiver can be configured for either momentary or latching operation. The unit operates on 240VAC and provides two
isolated dry contact closures. All of the electronic components are encapsulated so the receiver is capable of being
operated in harsh environments.

Momentary and Latching Operation Setup:

To place a control in momentary mode set ALL 4 dip switch settings to the OFF position. In momentary mode, the relay
output is energized as long as a transmitter button is held down. Once the button Is released, operation will cease.
To place a control in latching mode se ALL 4 dip switch settings to the ON position. Pressing the transmitter button once
will energize the relay output. Pressing the same button a second time will de-energize the relay output.
Maximum Ratings: Power for the receiver is 240VAC. The output relays are rated at 25A @ 240VAC, 1½ HP 240VAC.
RF240V-2WP
Instruction Manual

Included in this Kit:

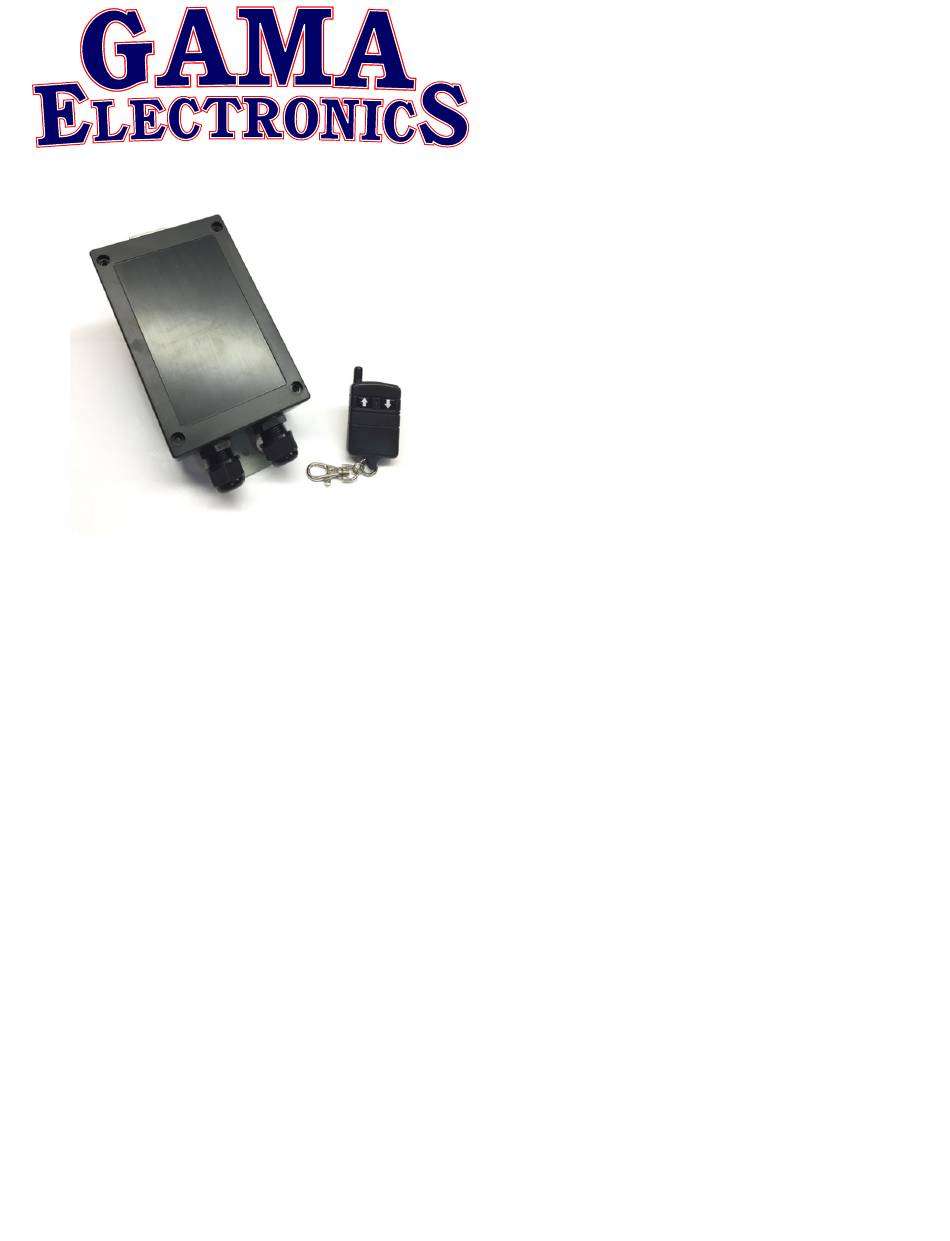

(1) RF240V-2WP Receiver
(1) 2-Button Transmitter with Light
Available accessories:
- Package of 6 A23 12V Alkaline Batteries A23-6
- 2-Button Waterproof Transmitter KF340-2WP
- Rechargeable Transmitter GKF-WPTX-2
- 2-Button Keyfob Transmitter KF340-2
- Long Range Antenna LRA340
- Clear Protective Transmitter Pouch ZLB-67
**See PAGE 3 FOR SETUP**
Page 1 REV B 03/09/20
