GAMA Electronics RF24V1C Instruction Manual

WWW.GAMAINC.COM
The RF24V1C is an RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 24VDC and
provides one isolated form C relay contact (normally open and normally closed contacts with one common). Up to
twelve, two button keyfob transmitters can be used to activate the receiver's relay. The relay can be configured to
function as a latching relay or momentary relay. Each transmitter has a unique address that is transmitted when a
button is pressed. A "program" button is provided on the receiver to program the transmitter(s) address into the
receiver's memory. The relay mode (latching or momentary) is programmed into the receiver's memory during the
programming process. An LED on the receiver indicates the receiver's programming status and illuminates when the
relay is energized. The receiver is encased in a small, waterproof enclosure. The typical operating range between
receiver and transmitter is up to 100 feet.
"Latching" vs. "momentary" relay operating modes: When the receiver is configured for "latching" mode, the relay will
energize when the "UP" button is pressed on the keyfob. The relay will remain energized until the "DOWN" button on
the keyfob is pressed. If multiple keyfobs are used any keyfob can energize the relay and any keyfob can de-energize
the relay. When the receiver is configured for "momentary" mode the relay will energize and remain energized as
long as the "UP" button is pressed on the keyfob. The "DOWN" button on the keyfob transmitter has no effect in this
mode
Maximum ratings:
Power for the receiver can be in the range of 21 to 24Vdc. The receiver is reverse polarity protected.
The relay contacts are electrically isolated from the DC power leads.
The relay contacts are rated at 10 Amps @ 30Vdc or 120/240Vac.
Power consumption:
10mA when the relay is de-energized. 45mA when the relay is energized
Dimensions:
1.65" X 1.46" X 1.04". The flexible whip antenna extends 3" from the enclosure.
Net weight 2.35 oz. .
RF24V1C
Instruction Manual

Included in this Kit:

(1) RF24V1C Receiver
(1) 2-Button Transmitter

Available accessories:

- Package of A23 12V Alkaline Batteries A23-6
- 2-Button Waterproof Transmitter KF340-2WP
- 2-Button Rechargeable Transmitter GKF-WPTX-2
- 2-Button Keyfob Transmitter KF340-2
- 340MHz Long Range Antenna LRA-340
- Clear Protective Transmitter Pouch ZLB-67

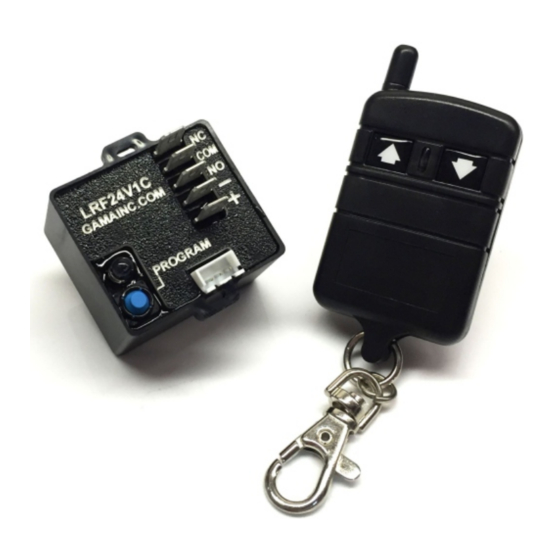

*Image shown with standard transmitter*
*See Page 3 for Setup*
Page 1 REV A 07/07/20
