GAMA Electronics RF240V-2WP Instruction Manual

WWW.GAMAINC.COM

The RF240V-2WP is a 340MHz AC motor control, intended to be used in conjunction with a 2-Button transmitter. The

receiver can be configured for either momentary or latching operation. The unit operates on 240VAC and provides two

isolated dry contact closures. All of the electronic components are encapsulated so the receiver is capable of being

operated in harsh environments.

To place a control in momentary mode set ALL 4 dip switch settings to the OFF position. In momentary mode, the relay

output is energized as long as a transmitter button is held down. Once the button Is released, operation will cease.

To place a control in latching mode se ALL 4 dip switch settings to the ON position. Pressing the transmitter button once

will energize the relay output. Pressing the same button a second time will de-energize the relay output.

Maximum Ratings: Power for the receiver is 240VAC. The output relays are rated at 25A @ 240VAC, 1½ HP 240VAC.

RF240V-2WP

Instruction Manual

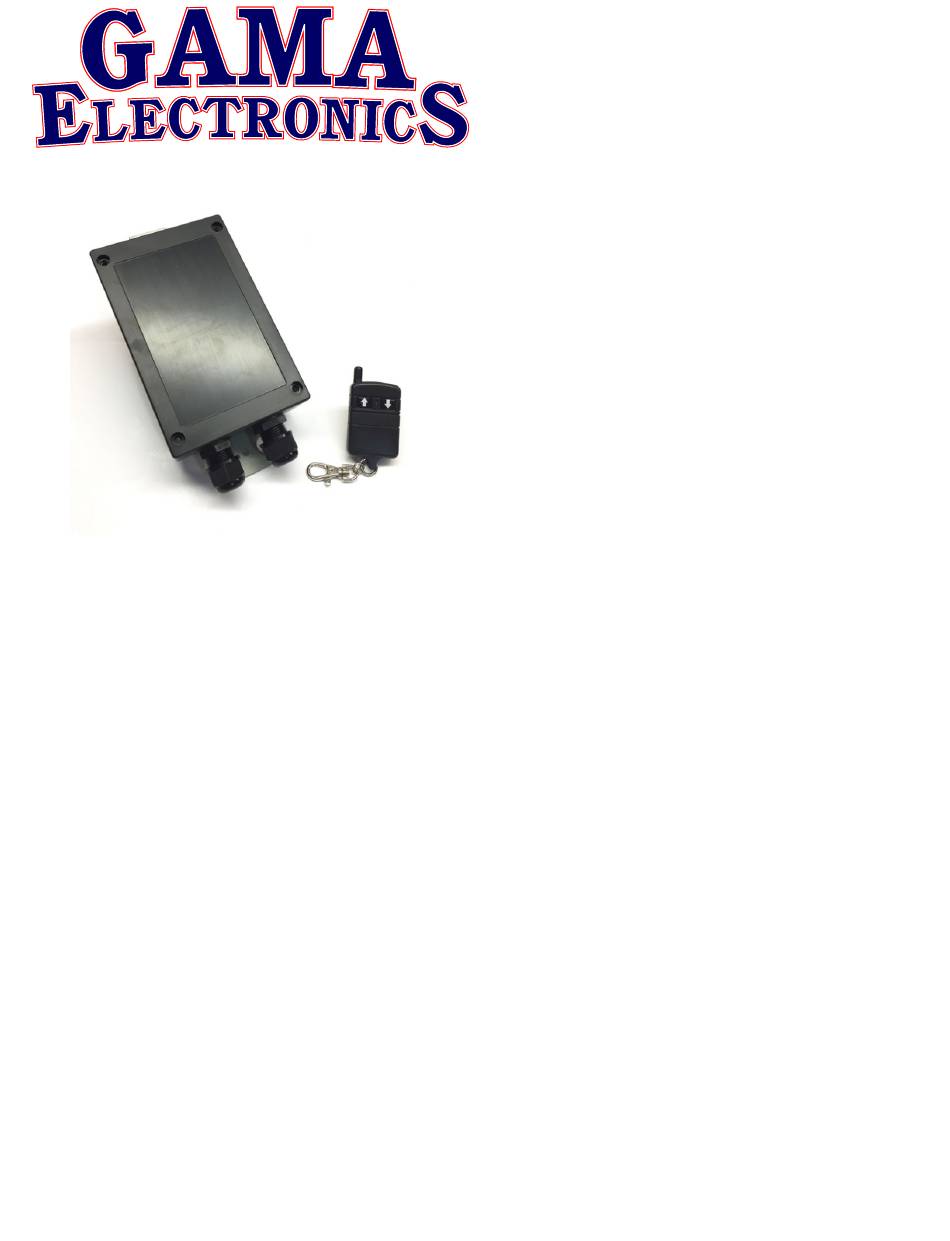

Included in this Kit:

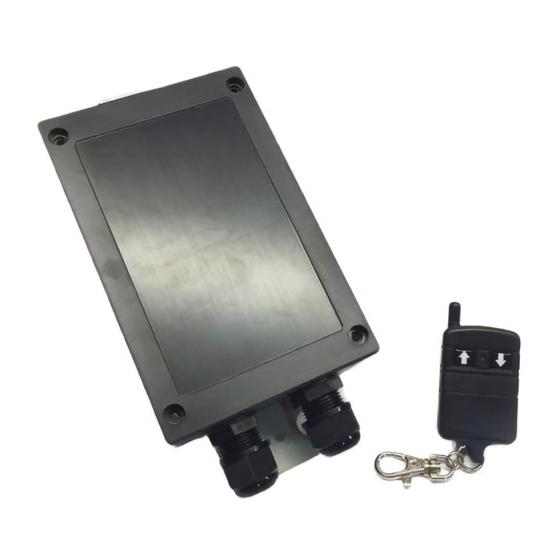

(1) RF240V-2WP Receiver

(1) 2-Button Transmitter with Light

(1) Long Range Antenna LRA340

- Package of 6 A23 12V Alkaline Batteries A23-6

- 2-Button Waterproof Transmitter KF340-2WP

- Rechargeable Transmitter GKF-WPTX-2

- 2-Button Keyfob Transmitter KF340-2

**See PAGE 3 FOR SETUP**

Page 1 REV B 03/09/20

Table of Contents

Do you have a question about the RF240V-2WP and is the answer not in the manual?

Page 1 - 2-Button Keyfob Transmitter KF340-2 The RF240V-2WP is a 340MHz AC motor control, intended to be used in conjunction with a 2-Button transmitter. The receiver can be configured for either momentary or latching operation. The unit operates on 240VAC and provides two isolated dry contact closures.
Page 2 RF240V-2WP Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique internal address along with the data as to which button is pressed and transmitted. The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter.
Page 3 100 feet. When additional range is needed, or if the control is placed locations adverse to RF signal reception, a long range antenna can be added to the system. GAMA Electronics long range antenna, part number LRA- 340, replaces the internal antenna on the system. In normal operating conditions expected range is greater than 500 feet.
Page 4 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
