GAMA Electronics RF340-DRC Instruction Manual

WWW.GAMAINC.COM
The RF340-DRC is an RF receiver operating at a fixed frequency of 340 MHZ. It connects to existing industrial overhead
doors to provide remote control operation of the up, down and stop functions. The control connects directly to the 3-button
operator control switch which will continue to function normally. The small, waterproof antenna can be mounted either
indoors or outdoors. With the antenna mounted outdoors, you can expect range of up to 500 feet. 100 foot range is typical
for an indoor mounted antenna.
Operating temperature range: 0°F to 160°F.
Power consumption: 10mA when the relays are de-energized. 45mA when the relay is energized
Installation: Locate the control close to the operator switch. Route the wires from the control to the switch and connect
the Up and Down leads to the terminals. For the Stop switch, disconnect the wire from the left screw terminal. Attach
either the red or orange wire to this terminal. Join the remaining lead (red or orange) to the wire previously disconnected
from the terminal using the supplied wire nut. Connect the plug-in power supply and the control is ready to be
programmed.
RF340-DRC
Instruction Manual

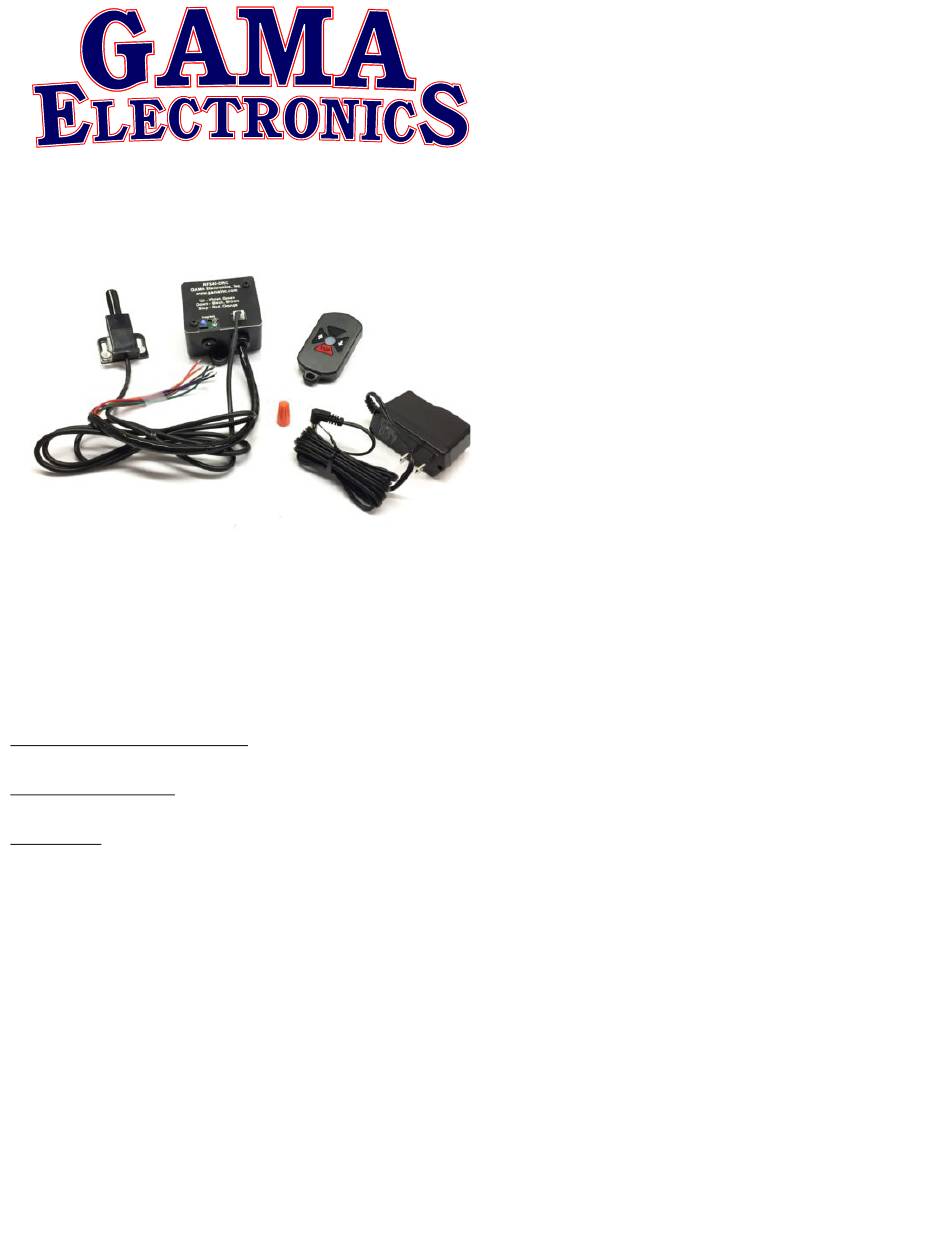

Included in this Kit:

(1) RF340-DRC Receiver

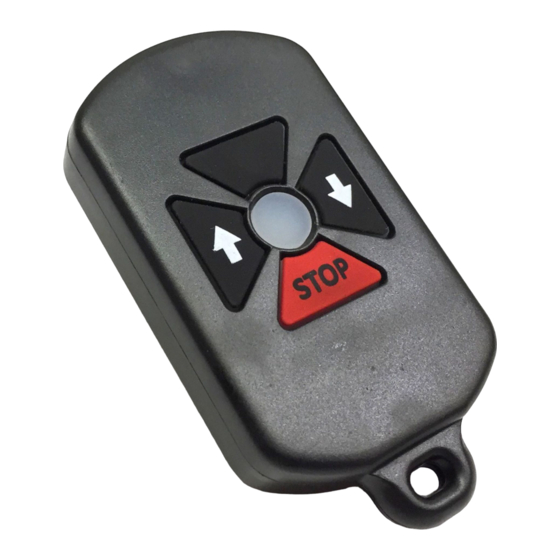

(1) 3-Button Transmitter
(1) Long Range Antenna LRA340
(1) 12VDC Wall Mount Power Supply
Available accessories:
- Wireless Outdoor Keypad KP340-DRC
- 3-Button Waterproof Transmitter KF340-DRC-WP
- 12-Button Transmitter RFT340-12DC-MB
- 12VDC Wall Mount Power Supply EPS120050
- Multi-Door Transmitter KF340-DRC-99
- Rechargeable Transmitter GKF-WPTX-DRC
**See PAGE 3 FOR SETUP**
Page 1 REV A 06/06/18
