WWW.GAMAINC.COM

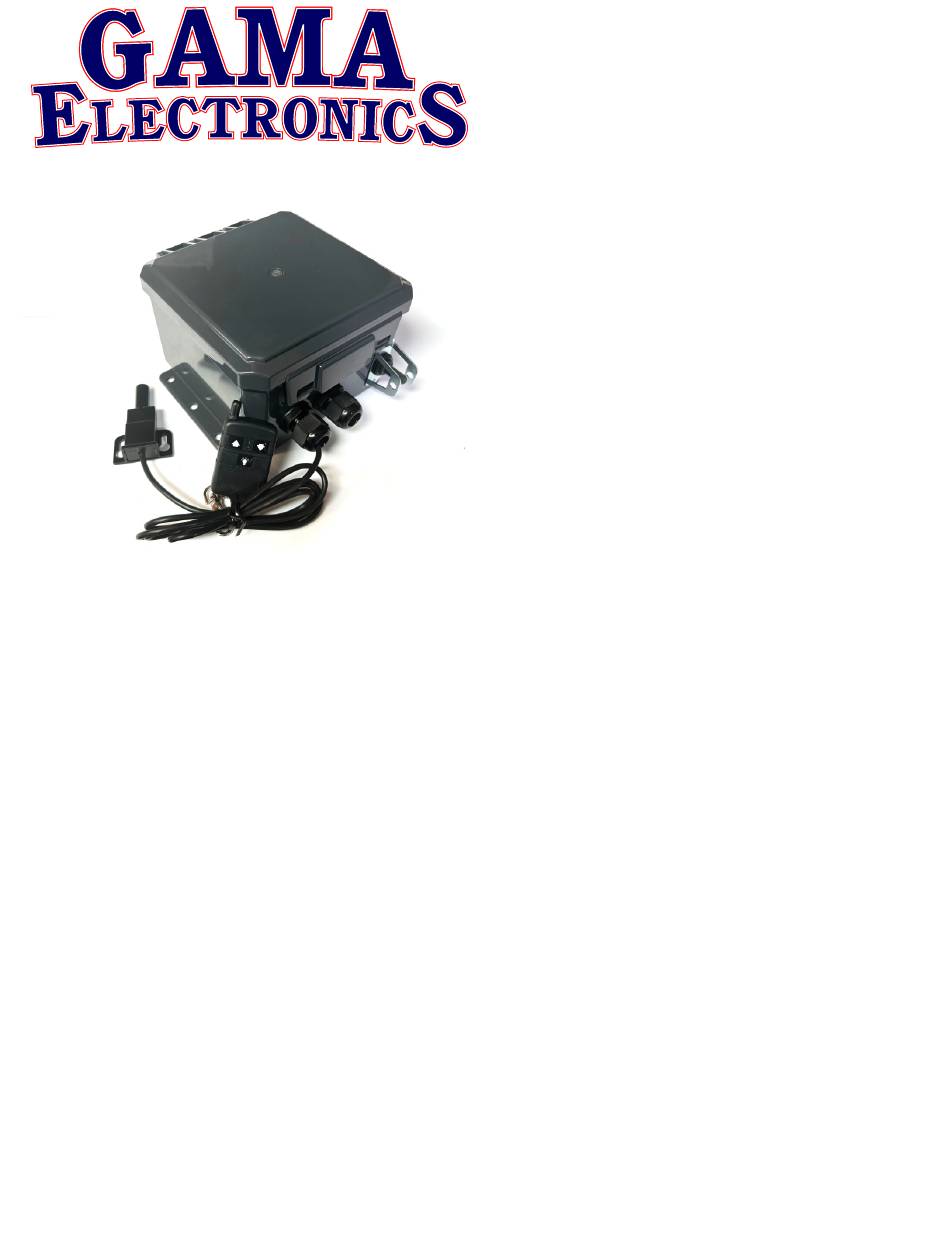

The LRF120VPR1L is an RF receiver operating at a fixed frequency of 340 MHZ. It operates from 120VAC and provides
one polarity reversing output for use with a four/six lead AC motor. The receiver has provision for two normally-closed
limit switches, one for either direction. The receiver is not designed to operate with any existing hand or drum switch.
The receiver is equipped with a manual toggle switch. An additional latching output is available for connecting to a
120VAC light. Up to thirty, three-button keyfob transmitters can be used to activate the receiver's relay. The receiver
has a terminal block for connecting the power and relay contacts. Each transmitter has a unique address that
is transmitted when a button is pressed. A "program" button is provided on the receiver to program the transmitter(s)
address into the receiver's memory. An LED on the receiver indicates the receiver's programming status and
illuminates when the receiver is energized. The receiver is encased in a waterproof enclosure. The operating range is
approximately 500 ft. Operating temperature range is 0°F to 160°F.
Polarity Reversing Output: The transmitter has two buttons assigned to the motor output. The up (^) button runs the
motor in one direction and the down (v) button runs the motor in the opposite direction. The reversing function
accomplished by reversing the phase on two of the four motor connections at the receiver output.
Manual Switch: The receiver is equipped with a manual switch. This switch replaces any hand or drum switch previously
connected to the motor.
Limit Switches: The receiver is equipped with 2 limit switch provisions. This switch allows the user to stop the motor
using a normally closed limit switch on either direction. *NOTE: The system is shipped with the limit switches disabled.
To use the limit switches you will need to remove the jumper wire between the COMMON and LIMIT SWITCH inputs.
Light Output: The light output is activated using the light button on the transmitter. Press the light button once to latch this
output on. Press the light button again to turn the light output off.
Maximum Ratings: Power for the receiver can be in the range of 100VAC to 132VAC. The relay contacts are rated at 20
Amps.
LRF120VPR1L-LS
Instruction Manual
Included in this Kit:
(1) LRF120VPR1L-LS Receiver
(1) 3-Button Transmitter with Light
(1) Long Range Antenna LRA340
Available accessories:
- Extra Long Range Antenna LRA-340
- 3-Button Waterproof Transmitter KF340-3L-WP
- Rechargeable Transmitter GKF-WPTX-3L
- 3-Button Keyfob Transmitter KF340-3
- Package of 6 A23 12V Alkaline Batteries A23-6
- Clear Protective Transmitter Pouch ZLB-67
Page 1 REV A 06/28/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRF120VPR1L-LS and is the answer not in the manual?

Questions and answers

Terry
August 2, 2025

Can't get the down function to operate

Summary of Contents for GAMA Electronics LRF120VPR1L-LS

  • Page 1 LRF120VPR1L-LS Instruction Manual WWW.GAMAINC.COM Included in this Kit: (1) LRF120VPR1L-LS Receiver (1) 3-Button Transmitter with Light (1) Long Range Antenna LRA340 Available accessories: - Extra Long Range Antenna LRA-340 - 3-Button Waterproof Transmitter KF340-3L-WP - Rechargeable Transmitter GKF-WPTX-3L - 3-Button Keyfob Transmitter KF340-3...
  • Page 2: Programming Instructions

    LRF120VPR1L-LS Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique internal address along with the data as to which button is pressed and transmitted. The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter.
  • Page 3: Wiring Instructions

    NOTE: After completing the installation, if the motor goes the wrong direction, simply swap the wires connected to T5 and T8 on the receiver. The motor will now rotate in the correct direction. The 120VAC light connects between “common” and “light” terminals on the receiver. 120VAC P/N LRF120VPR1L-LS LEARN MADE IN USA LIMIT...
  • Page 4: Truth Table

    LRF120VPR1L-LS Instruction Manual Schematic Truth Table K1 = Up or Down K4 = Up K2 = Light (Latch On/Latch Off) LIGHT T2, T4 T1, T3 AC IN NEUT 120VAC IN AC IN LINE Relays shown in off position Page 4 REV A 06/28/24...
  • Page 5: Troubleshooting

    WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
  • Page 6 LRF120VPR1L-LS Instruction Manual WWW.GAMAINC.COM Figure Figure Motor Name Motor Name STANDARD MOTOR WITH “T” NUMBERS See Figure 1 STANDARD MOTOR WITH “T” NUMBERS See Figure 1 STANDARD MOTOR WITH COLORED WIRE See Figure 2 STANDARD MOTOR WITH COLORED WIRE See Figure 2 See Figure 3 A.O Smith with L1, L2 Terminals &...
  • Page 7 LRF120VPR1L-LS Instruction Manual FIGURE 1 FIGURE 2 LINE IN LINE IN NEUTRAL IN NEUTRAL IN T1,T3 BLUE/ORANGE T2,T4 WHITE/YELLOW BLACK *USE WIRE NUTS TO CONNECT THE RECEIVER TO MOTOR WIRES FIGURE 3 FIGURE 4 LINE IN LINE IN NEUTRAL IN...
  • Page 8 LRF120VPR1L-LS Instruction Manual FIGURE 5 FIGURE 6 *MOTOR WIRES LINE IN BROWN & ORANGE LINE IN MUST BE CONNECTED NEUTRAL IN TO TERMINAL 3 NEUTRAL IN TERMINAL E TERMINAL 1 TERMINAL D TERMINAL 6 TERMINAL A TERMINAL 5 TERMINAL B...
  • Page 9 LRF120VPR1L-LS Instruction Manual FIGURE 9 FIGURE 10 LINE IN *USE WIRE NUTS LINE IN TO CONNECT THE RECEIVER NEUTRAL IN TO MOTOR WIRES NEUTRAL IN TERMINAL 1 TERMINAL 3 TERMINAL 1 MOTOR YELLOW & WHITE MOTOR RED TERMINAL 4 TERMINAL 2...
  • Page 10 LRF120VPR1L-LS Instruction Manual FIGURE 13 FIGURE 14 LINE IN LINE IN NEUTRAL IN NEUTRAL IN L2 (WHITE) L1 (BLUE) BLACK BLACK FIGURE 15 FIGURE 16 LINE IN LINE IN NEUTRAL IN WHITE NO CONNECTION (1) ORANGE (2) BLACK *4-NEUTRAL IN...
  • Page 11 LRF120VPR1L-LS Instruction Manual FIGURE 17 FIGURE 18 LINE IN LINE IN NEUTRAL IN NEUTRAL IN 1 BLUE/3 ORANGE NO CONNECTION T2, T4 2 WHITE/4 YELLOW *P2, T3-NEUTRAL 5 BLACK FROM AC INPUT 8 RED *P1-NEUTRAL FROM AC INPUT FIGURE 19...
  • Page 12 LRF120VPR1L-LS Instruction Manual FIGURE 21 FIGURE 22 LINE IN LINE IN P2, T3 ORANGE/P2 NO CONNECTION NO CONNECTION T2, T4 YELLOW/WHITE BLACK *P1-NEUTRAL AC INPUT *P1-NEUTRAL AC INPUT FIGURE 23 FIGURE 24 LINE IN LINE IN NEUTRAL IN BROWN P2, ORANGE T3...
  • Page 13 LRF120VPR1L-LS Instruction Manual FIGURE 25 FIGURE 26 LINE IN LINE IN BROWN/ORANGE WHITE (2) BROWN (7/P2) NO CONNECTION NO CONNECTION BLUE (1) YELLOW/WHITE ORANGE (3) BLACK (5) BLACK RED (8) *YELLOW (4)-AC INPUT NEUTRAL BLUE -AC INPUT NEUTRAL FIGURE 27...
  • Page 14 LRF120VPR1L-LS Instruction Manual FIGURE 29 FIGURE 30 LINE IN LINE IN NEUTRAL IN BLACK, YELLOW 3,4 (BLUE) NO CONNECTION 1,2 (WHITE) RED, BROWN WHITE BLACK BLUE/WHITE BLUE -AC INPUT NEUTRAL FIGURE 31 FIGURE 32 LINE IN LINE IN T3, P2...
  • Page 15 LRF120VPR1L-LS Instruction Manual FIGURE 33 FIGURE 34 LINE IN LINE IN NEUTRAL IN 2, 4, 7, 9 (JUMPER TO T1,T3) (WHITE, YELLOW) JUMPER TO NEUT. 2 (RED) (ORANGE, BLACK) 5 -AC INPUT NEUTRAL 4 (BLACK) - NO CONNECTION Page 15 REV A 06/28/24...
