WWW.GAMAINC.COM

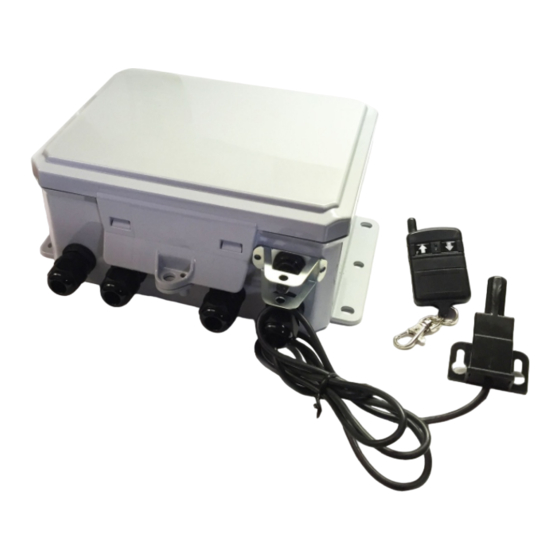

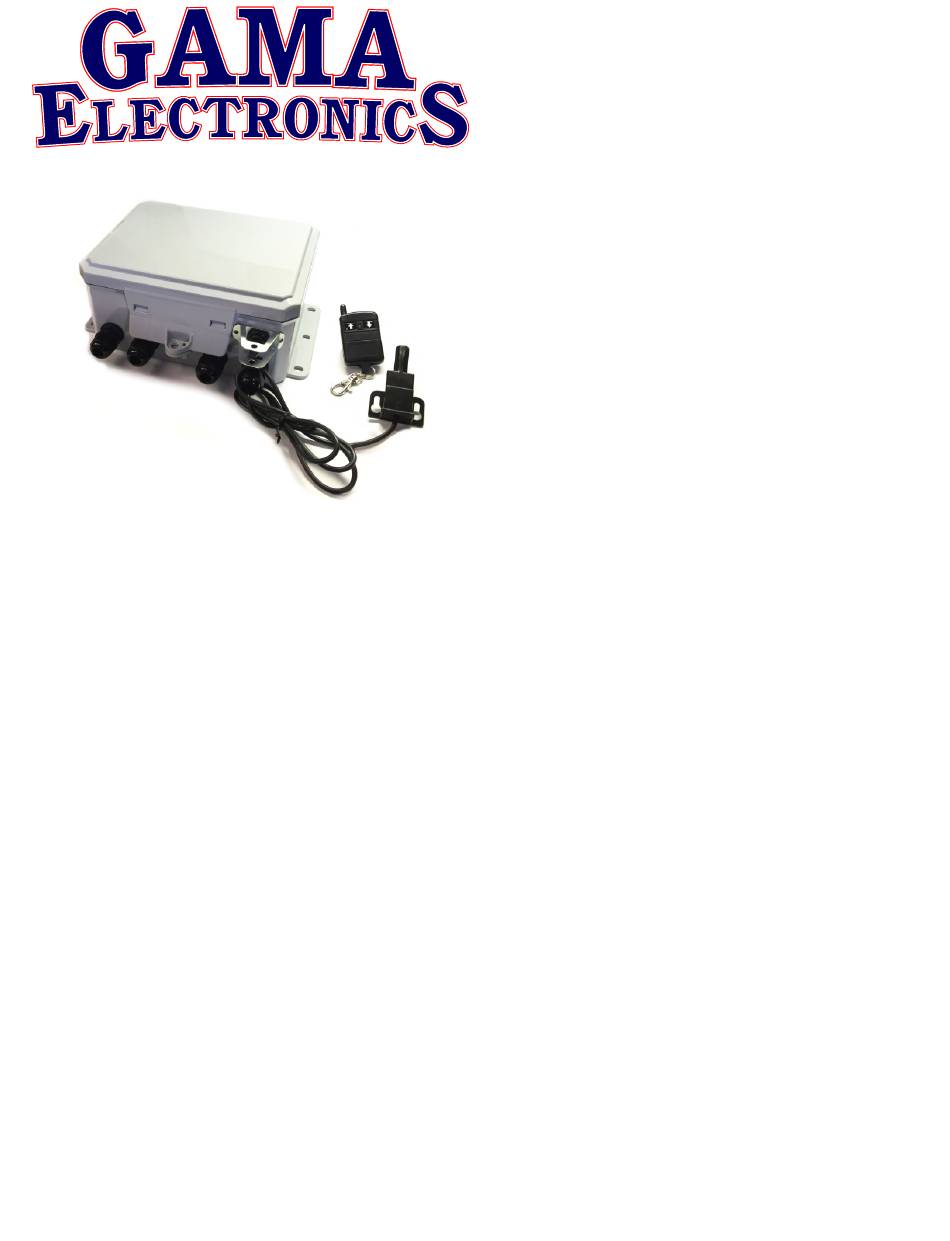

The RF340-400APR is a Heavy Duty, Long Range Polarity Reversing R.F. Remote Control is designed for bi-
directional control of DC motors. This control is intended for high current applications. The output is rated for a 100
amp continuous load and up to a 400 amp intermittent load (10% duty cycle).
This system is ideal for controlling lifts, jacks, winches, and agricultural applications where large capacity 12 VDC
polarity reversing DC motors are used. The keyfob transmitter has two buttons. The left button runs the motor in one
direction and right button runs the motor in the opposite direction. There are also auxiliary waterproof pushbutton
switches mounted on the receiver. This permits operation of the control without using a transmitter.
The control can be configured for either momentary or latching operation. In the momentary mode, the motor will
operate as long as the buttons are held down. In the latching mode, pressing either button will start the motor and
pressing the button a second time will stop the motor. The auxiliary switches on the receiver only provide momentary
operation.
The control is housed in a IP-68 waterproof enclosure and is suitable for use in harsh environments. The enclosure
dimensions are approximately 9" L x 6" W x 4" H. The long range antenna is housed in a separate housing and
connects to the receiver with a 5 foot cable.
There are four screw terminals for the connections. Two connect 12 volts and Ground and the other two connect to
the DC motor. Transmit range is greater than 500 feet under normal operating conditions and can go as far as 900
feet under ideal conditions. FCC Approved. Proudly made in the U.S.A.
RF340-400APR
Instruction Manual
Included in this Kit:
(1) RF340-400APR Receiver
(1) 2-Button Transmitter
Available accessories:
- Package of A23 12V Alkaline Batteries A23-6
- 2-Button Waterproof Transmitter KF340-2WP
- 2-Button Rechargeable Transmitter GKF-WPTX-2
- 2-Button Keyfob Transmitter KF340-2
- 340MHz Long Range Antenna LRA-340
Page 1 REV B 03/09/20
Advertisement
Table of Contents
Related Manuals for GAMA Electronics RF340-400APR
Summary of Contents for GAMA Electronics RF340-400APR
- Page 1 - 340MHz Long Range Antenna LRA-340 The RF340-400APR is a Heavy Duty, Long Range Polarity Reversing R.F. Remote Control is designed for bi- directional control of DC motors. This control is intended for high current applications. The output is rated for a 100 amp continuous load and up to a 400 amp intermittent load (10% duty cycle).
- Page 2 The receiver is now in the normal mode of operation. This completes the programming instructions. The receiver will retain all of its programming even when power is removed. Programming Switch Programming PROGRAM -12V +12V RF12V1PR-ASL GAMA Electronics, Inc. www.gamainc.com Long Range Long Range Antenna Antenna Jack Page 2 REV B 03/09/20...
- Page 3 100 feet. When additional range is needed, or if the control is placed locations adverse to RF signal reception, a long range antenna can be added to the system. GAMA Electronics long range antenna, part number LRA- 340, replaces the internal antenna on the system. In normal operating conditions expected range is greater than 500 feet.
- Page 4 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
