GAMA Electronics RF340-100APR Instruction Manual

WWW.GAMAINC.COM
The RF340-100APR is an RF receiver operating at a fixed frequency of 340 MHZ.The receiver operates from 12VDC and provides
polarity reversing output. Up to thirty, 2-Button keyfob transmitters can be used to activate the receiver's relay. The receiver provides
four terminals for connecting the power and relay contacts. Each transmitter has a unique address that is transmitted when a button
is pressed. A "program" button is provided on the receiver to program the transmitter(s) address into the receiver's memory. An LED
on the receiver indicates the receiver's programming status and illuminates when either relay is energized. The receiver is encased
in a small, waterproof enclosure. The operating range is at least 100 feet. Additionally, there is an external switch which allows the
receiver to be operated without using the remote transmitter.
Maximum Ratings: Power for the receiver can be in the range of 10VDC to 15VDC. The receiver is reverse polarity protected. The
output is rated for up to a 100A intermittent load.
Power Consumption: 10mA when the relays are de-energized, 2A when the relay is energized.
Input Power Connection: 12VDC power connects to the -12VDC and +12VDC terminals.
Output Connection: The output of the receiver is connected to the "M1", and "M2" terminals.
Momentary or Latching Operation: The transmitter and receiver can be configured for momentary or latching operation. For
momentary operation, the output of the receiver will be active for as long as the transmitter switch is depressed, and will turn off
when the switch is released. In the latching configuration, the receiver output will turn on as soon as the transmitter switch is
depressed and released. To turn off the latching output, the transmitter switch must be depressed and released again. For
instructions on how to set up latching or momentary operation, please see the "Programming Instructions" on page 2.
RF340-100APR
Instruction Manual

Included in this Kit:

(1) RFR340-100APR Receiver
(1) 2-Button Transmitter
Available accessories:
- Additional Standard Transmitter KF340-2
- Waterproof Transmitter KF340-2WP
- Rechargeable Transmitter GKF-WPTX-2
- Long Range Antenna LRA340
- 6-Pack of Replacement A-23 12V Batteries A23-6
- Clear Protective Transmitter Pouch ZLB-67

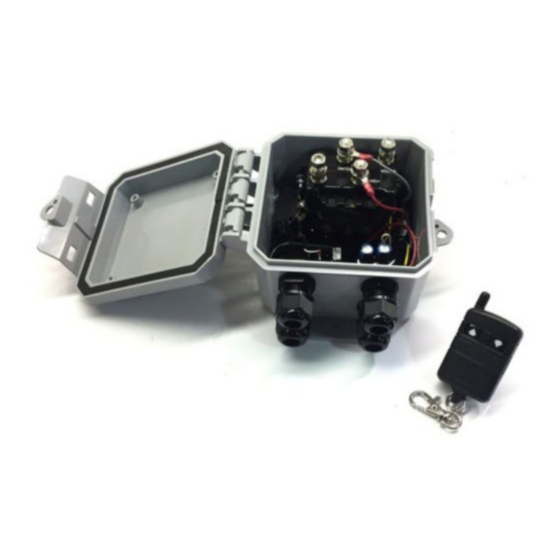

*Image shown with standard transmitter*
**SEE PAGE 3 FOR SETUP**
Page 1 REV A 07/10/20
