GAMA Electronics LRF240V-2PR1L Instruction Manual

WWW.GAMAINC.COM
The LRF120V2PR1L is an RF receiver operating at a fixed frequency of 340 MHZ. It operates from 240VAC and provides
two polarity reversing output for use with a four/six lead AC motor. The receiver has provision for two normally-closed
limit switches, one for either direction for each motor output. The receiver is not designed to operate with any existing
hand or drum switch. The receiver is equipped with a manual toggle switches. An additional latching output is available for
connecting to a 240VAC light. Up to thirty, transmitters can be used to activate the receiver's relays. The receiver
has a terminal block for connecting the power and relay contacts. Each transmitter has a unique address that
is transmitted when a button is pressed. A "program" button is provided on the receiver to program the transmitter(s)
address into the receiver's memory. An LED on the receiver indicates the receiver's programming status and
illuminates when the receiver is energized. The receiver is encased in a waterproof enclosure. The operating range is
approximately 500 ft. Operating temperature range is 0°F to 160°F.
Polarity Reversing Outputs: The transmitter has two buttons assigned to each motor output. The up (^) button runs the
motor in one direction and the down (v) button runs the motor in the opposite direction. The reversing function
accomplished by reversing the phase on two of the four motor connections at the receiver output. Using the ALL buttons will
operate both motors simultaneously
Manual Switches: The receiver is equipped with 2 manual switches. This switch replaces any hand or drum switch
previously connected to the motor.
Limit Switches: The receiver is equipped with 2 limit switch provisions for each motor. This switch allows the user to stop
the motor using a normally closed limit switch on either direction. *NOTE: The system is shipped with the limit switches
disabled. To use the limit switches you will need to remove the jumper wire between the switch inputs.
Light Output: The light output is activated using the light button on the transmitter. Press the light button once to latch this
output on. Press the light button again to turn the light output off.
Maximum Ratings: Power for the receiver can be in the range of 100VAC to 132VAC. The relay contacts are rated at 20
Amps. Two separate AC inputs are provided, one for each motor.
LRF240V-2PR1L
Instruction Manual

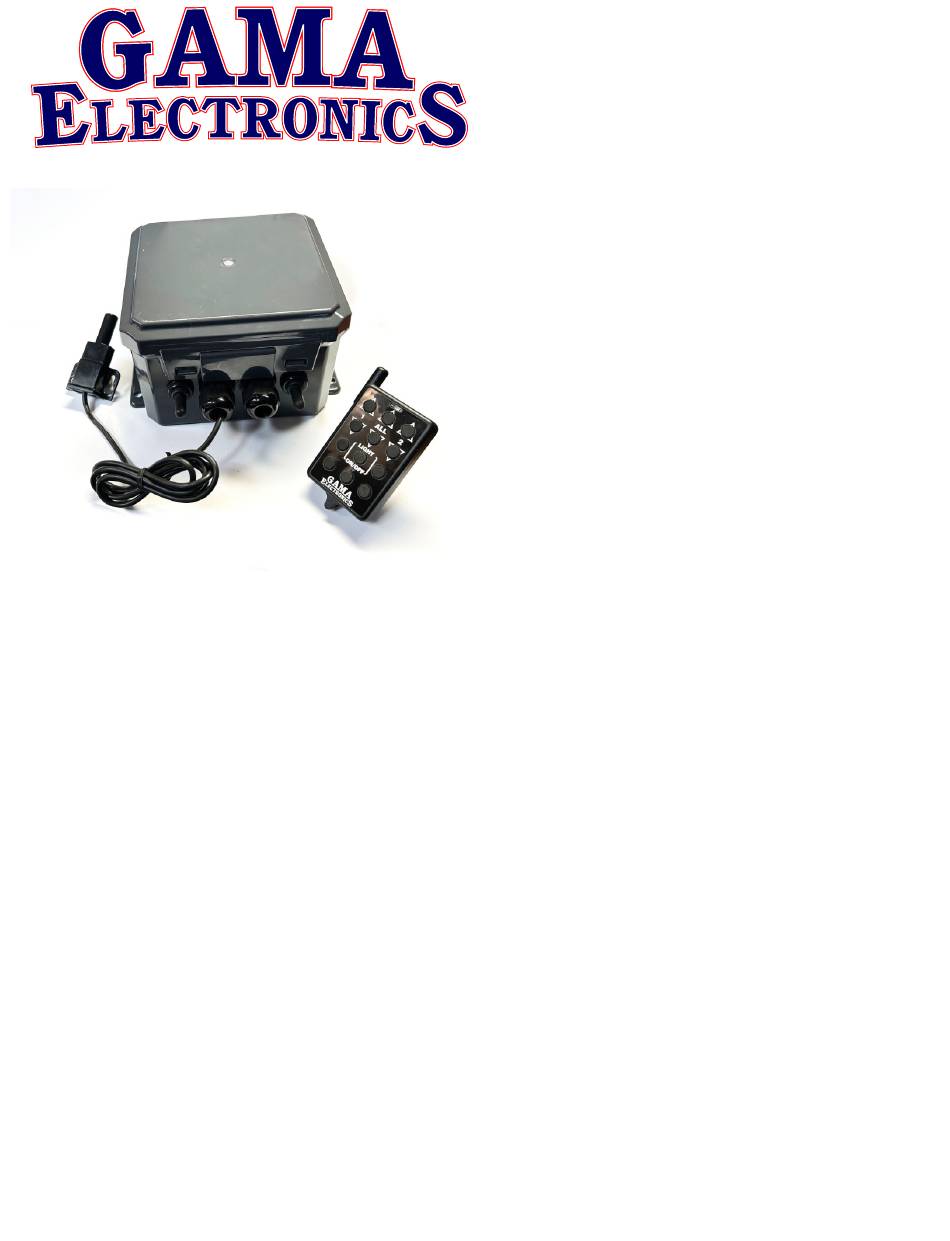

Included in this Kit:
(1) LRF240V-2PR1L Receiver
(1) Keyfob Transmitter
(1) Long Range Antenna LRA340
Available accessories:
- Extra Long Range Antenna LRA-340
- Additional Transmitter RFT340-2PR1L
- Waterproof Transmitter RFT340-2PR1L-WP
- Rechargeable Transmitter RFT340-2PR1L-WPTX
- Package of 6 A23 12V Alkaline Batteries A23-6
- Clear Protective Transmitter Pouch ZLB-67
Page 1 REV O 1/15/25
