Summary of Contents for Franke FIX906B1
- Page 1 USE AND CARE INDUCTION COOKTOPS FIX604B1 FIX906B1...
- Page 2 You are also entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. The benefits under FRANKE’s warranty are in addition to other rights you have at law in...
-
Page 3: Table Of Contents
Dear customer, Congratulations on your purchase of a Highland induction ceramic hob. In order to make the best use of your appliance, please carefully read the following use and care manual and keep it for later reference. SUMMARY SAFETY ............................4 ...................... -
Page 4: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connection of the appliance must be done by approved and qualified specialists. The manufacturer cannot be responsible for damage caused by installation or connection errors. • When used, the appliance must be correctly installed in a kitchen unit and an adapted and approved work surface. -
Page 5: Using The Appliance
Using the appliance • Switch the heating zones off after use. • Keep an eye on the hob when cooking with grease or oils as they may quickly ignite. • Be careful not to burn yourself during or after using the appliance. -
Page 6: Precautions Not To Damage The Appliance
Precautions not to damage the appliance • Raw pan bottoms or damaged saucepans (not enamelled cast iron pots) may damage ceramic glass. • Sand or other abrasive materials may damage ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. •... -
Page 7: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure • If a defect is noticed, switch off the appliance and turn off the electrical supply. • If the ceramic glass is cracked or fissured, you must unplug the appliance and contact after sales service. •... -

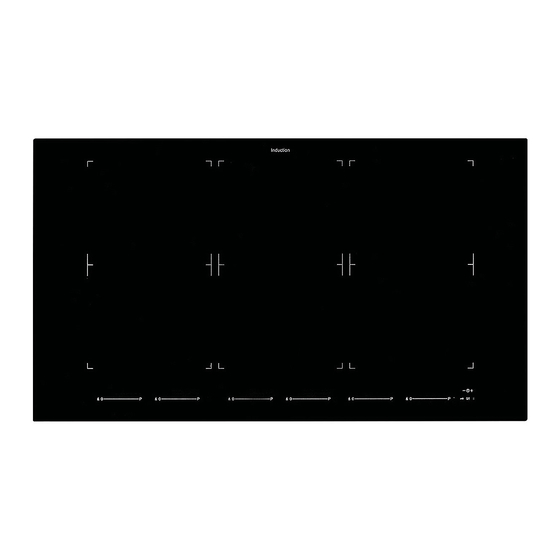

Page 8: Description Of The Appliance
7400 W 4 zones 220x180 mm 2100 W 2600 W 3700 W 100 mm FIX906B1 11100 W 6 zones 220x180 mm 2100 W 2600 W 3700 W 100 mm * The given power may change according to the dimensions and material of the pan. -
Page 9: Use Of The Appliance
USE OF THE APPLIANCE Display Display Designation Description Zero The heating zone is activated. 1…9 Power level Selection of the cooking level. No pan detection No pan or inadequate pan. Heat accelerator Automatic cooking. Error message Electronic failure. Residual heat The heating zone is hot. -
Page 10: Power Selection Zone "Slider" And Timer Setting Zone
Power selection zone “SLIDER” and timer setting zone To select the power with the slider, slide your finger on the “SLIDER” zone. You can directly access if you put your finger directly on the chosen level. Power selection zone “SLIDER” and timer setting zone “SLIDER“... -
Page 11: Residual Heat Indication
Residual heat indication After the heating zone is turned off, or the complete stop of the hob, the heating zones are still hot and indicates [ H ] on the display. The symbol [ H ] disappears when the heating zones may be touched without danger. When the residual heat indicators are on, don’t touch the heating zones and don’t put any heat sensitive object on them. -
Page 12: Timer
Timer The timer is able to be used simultaneously with all heating zones with different time settings (from 0 to 999 minutes) for each heating zone. • Setting and modification of the cooking time : Action Control panel Display Select the power level slide on the “SLIDER“... -
Page 13: Automatic Cooking
Automatic cooking All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power for a certain time, and will then reduce automatically the power on the pre-selected level. • Start-up : Action Control panel Display Power level selection slide on the “SLIDER“... -
Page 14: Bridge And Automatic Bridge Function
Bridge and automatic Bridge Function This function allows the use of 2 cooking zones at the same time with the same features as a single cooking zone. With this function the Booster function is allowed on the left and center zones. -
Page 15: Cooking Advice
COOKING ADVICE Pan quality Accepted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Not accepted materials : aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatible : •... -
Page 16: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water... -
Page 17: Environment Preservation
One or all cooking zone cut-off : • The safety system has actioned. • You forgot to cut-off the cooking zone for a long period of time. • One or more sensitive keys are covered. • The pan is empty and its bottom overheated. •... -
Page 18: Installation Instructions
Cut-size FIX604B1 560 x 490 mm FIX906B1 750 x 490 mm • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 19: Electrical Connection
2 Phases + N 4 x 1.5 mm² 16 A * H 05 RR - F * calculated with the simultaneous factor following the standard EN 60 335-2-6 CONNECTION OF THE HOB FOR FIX906B1 Mains Connection Cable diameter Cable Protection calibre... - Page 20 PR Kitchen & Washroom Systems Pty Ltd. 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au 23520/0...
