Summary of Contents for Franke FIG301S1N

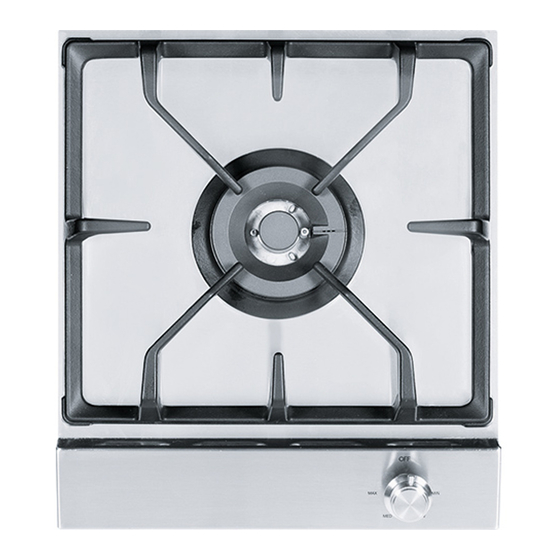

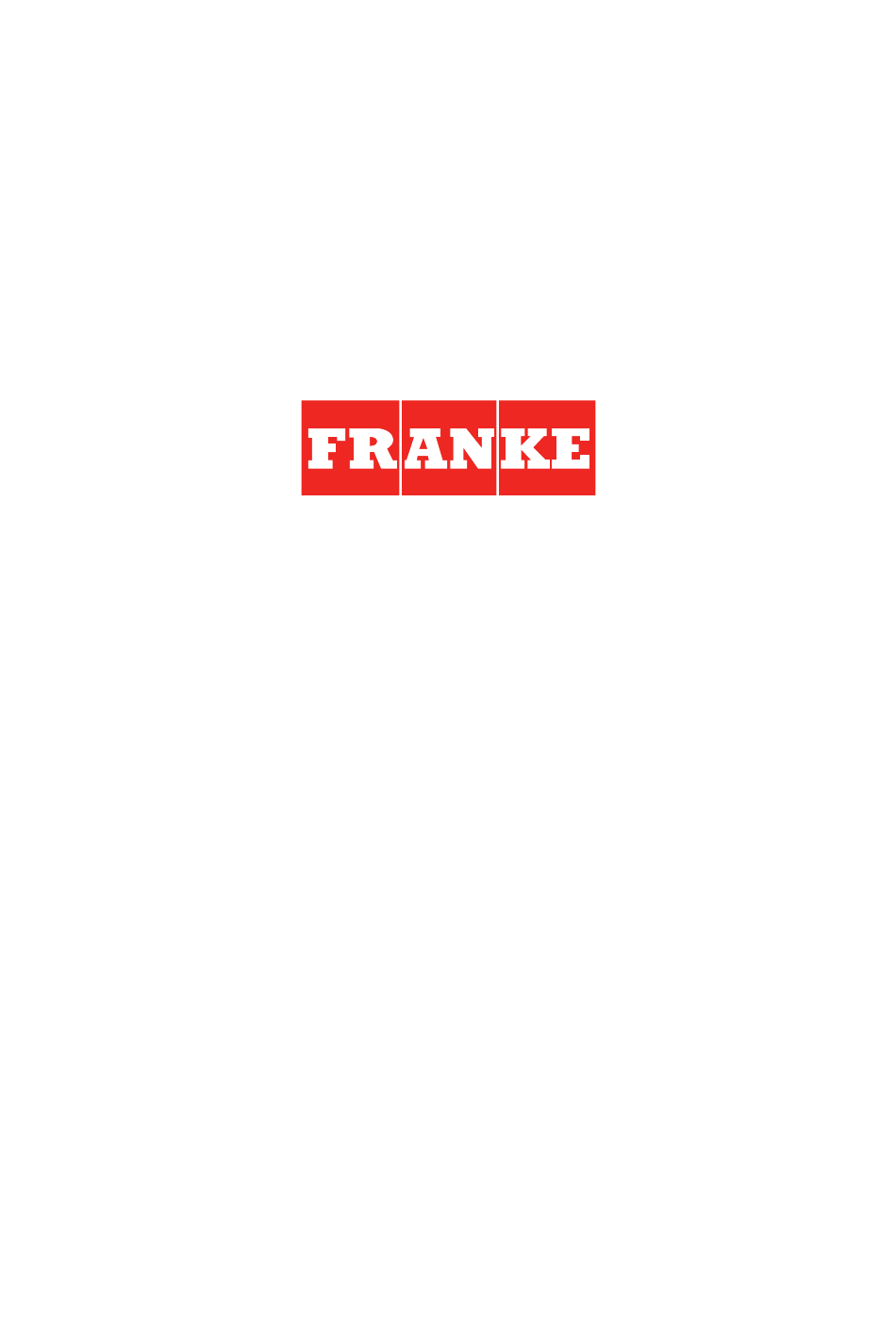

- Page 1 FRANKE PROFESSIONAL SERIES GAS COOKTOP OPERATION MANUAL FIG301S1 N/L & FIG301B1 N/L FIG604S1 N/L & FIG604B1 N/L FIG903S1 N/L & FIG903B1 N/L FIG906S1 N/L & FIG906B1 N/L FIG905B1 N/L FLG945B1 N/L FLG1003B1 N/L...
- Page 2 All FRANKE professional series appliances come with a 5 year parts and labour warranty. FRANKE will correct, free of charge, any defects in material or workmanship for the period of 5 years, subject to the terms of our warranty stated below. At FRANKE we place great importance on customer satisfaction and that is why we have established a dedicated and experienced customer support team that you can rely on.
-
Page 3: Table Of Contents
SAFETY ELECTRICAL AND GAS CONNECTION INSTALLATION INSTRUCTIONS LEGEND AND MANUAL IGNITION FOR GAS BURNERS GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION TO USE YOUR NEW FRANKE COOKTOP BURNER TOUCH CONTROL CARE AND MAINTENANCE FAULT FINDING / ABNORMAL OPERATION MODELS COVERED FIG301S1 N/L & FIG301B1 N/L FIG604S1 N/L &... -
Page 4: General Information
PLEASE KEEP AND READ FOR FUTURE REFERENCE The Franke range of cooktops are state of the art appliances featuring the latest in flame auto safety shut-off. Should the flame on any burner be extinguished accidentally then the gas flow to that burner will automatically cease to flow, ensuring no hazardous build up of flammable gas from the cooktop can then occur. -
Page 5: Safety When In Use
SAFETY WHEN IN USE Remember this appliance produces heat and therefore some parts will get hot. Let pan supports and other surfaces cool down before touching them. Do not leave children unattended near the appliance when it is hot or in use. Do not store or use petrol or other flammable vapours or liquids in the vicinity of this or any other gas appliance. -
Page 6: Safety
SAFETY PRECAUTIONS BEFORE USING • Unpack all the materials. • The installation and connection of the appliance must be done by approved and qualified specialists. The manufacturer cannot be responsible for damage caused by installation or connection errors. • When used, the appliance must be correctly installed in a kitchen unit and an adapted and approved work surface. •... - Page 7 SAFETY PRECAUTIONS NOT TO DAMAGE THE APPLIANCE • Raw pan bottoms or damaged saucepans (not enameled cast iron pots) may damage ceramic glass. • Sand or other abrasive materials may damage ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. •...
-
Page 8: Electrical And Gas Connection
FIG604S1N/L, FIG604B1N/L FIG905B1N/L, FLG945B1N/L FIG906S1N/L, FIG906B1N/L FIG301S1N/L, FIG301B1N/L GAS CONNECTION An appliance suitable for gas connection must only be installed by an authorised person. The installation must comply with these instructions, any local regulations and the requirements of AS/NZS 5601. -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS The installation comes under the exclusive responsibility of service. The installer must respect the legislation and the standards enforce in his home country. How to stick the gasket The gasket supplied with the cooktop avoids all infiltration of liquids in the cabinet. Installation has to be done carefully, in conformity of the following drawing. - Page 10 INSTALLATION INSTRUCTIONS FIG301 FIG604 352mm 405mm 505mm 660mm 65mm 60mm A+20mm 65mm 330mm 55mm 560mm 470mm 378mm 320mm FIG903 FIG905 405mm 850mm 520mm 960mm 50mm 65mm 80mm 50mm 817mm 378mm 470mm FIG906 505mm 985mm The distance from the top of the benchtop 60mm to the top of the wok trivet is 65mm and 55mm...
- Page 11 INSTALLATION INSTRUCTIONS OTE: CONNECTION OF THE APPLIANCE TO THE GAS SUPPLY MUST BE IN ACCORDANCE WITH THE REQUIREMENTS OF AS/NZS 5601. A ½ INCH BSP CONNECTION AT THE INLET IS RECOMMENDED AND THE GAS SUPPLY LINE TO THE APPLIANCE MUST BE OF ADEQUATE LENGTH TO ALLOW SUFFICIENT WITHDRAWAL OF APPLIANCE FOR SERVICE OR DISCONNECTION.
-
Page 12: Legend And Manual Ignition For Gas Burners
GAS CONNECTION • Do not use as a room heater. • Do not allow clothing to pass over or near to the flame. • Do not leave handles of saucepans protruding out into the room or over adjacent burners. Always check that the pot is stable and will not be likely to tip its contents before you release your grip. -
Page 13: General Assembly Procedure For Installation
GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION PLEASE KEEP AND READ FOR FUTURE REFERENCE GENERAL ASSEMBLY PROCEDURE FOR INSTALLATION _______________________________________________________________________________________________________________________ Ensure all packaging, including polystyrene, plastic and cardboard has been removed from around the appliance and burner area. Ensure that all burner(s), trivets, grates and panels are correctly located and supported. ABNORMAL OPERATION _______________________________________________________________________________________________________________________ If you are aware of any change in the operation of the appliance consult a qualified service person. -
Page 14: To Use Your New Franke Cooktop
TO USE YOUR NEW FRANKE COOKTOP PLEASE KEEP AND READ FOR FUTURE REFERENCE 1. Select the control knob corresponding to the burner you wish to use, press down and turn the knob to the position shown below. NOTE: BURNERS WILL IMMEDIATELY BEGIN SPARKING VIA THE ELECTRONIC IGNITION SYSTEM WHEN ANY OF THE GAS CONTROLS ARE DEPRESSED. -
Page 15: Burner Touch Control
BURNER TOUCH CONTROL (FLG1003B1, FLG945B1) Set Time • Press and hold [+] [–] buttons together. • When the time begins to flash, release buttons. • Pres [+] button to go up. • Press [–} button to go down. • Press enter to set the minutes. •... -
Page 16: Care And Maintenance
BURNERS: The burner caps are solid brass with a black chrome finish to avoid discoloration of the brass. NOTE: The black chrome will eventually burn off with time however this will not affect the performance of the burners. The burners can be re- chromed with Franke`s exchange program, for a nominal fee. -
Page 17: Fault Finding / Abnormal Operation
FAULT FINDING / ABNORMAL OPERATION FAULT FINDING / ABNORMAL OPERATION _______________________________________________________________________________________________________________________ FAULT POSSIBLE SOLUTION(S) BURNER LIGHTS, BUT GOES OUT WHEN CONTROL IS RELEASED CONTROL KNOB IS TO BE PRESSED DOWN FIRMLY, AND HELD (GAS) FIRMLY, DURING IGNITION PROCEDURE FOR 5 SECONDS. CONTROL KNOB IS BOTTOMING OUT ON THE CONTROL PANEL AND NOT ENGAGING THE FLAME FAILURE DEVICE –... - Page 20 PR Kitchen & Washroom Systems Pty Ltd. 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au FRANKE PROFESSIONAL *T&C’s apply...
