Summary of Contents for Franke FRG302S1

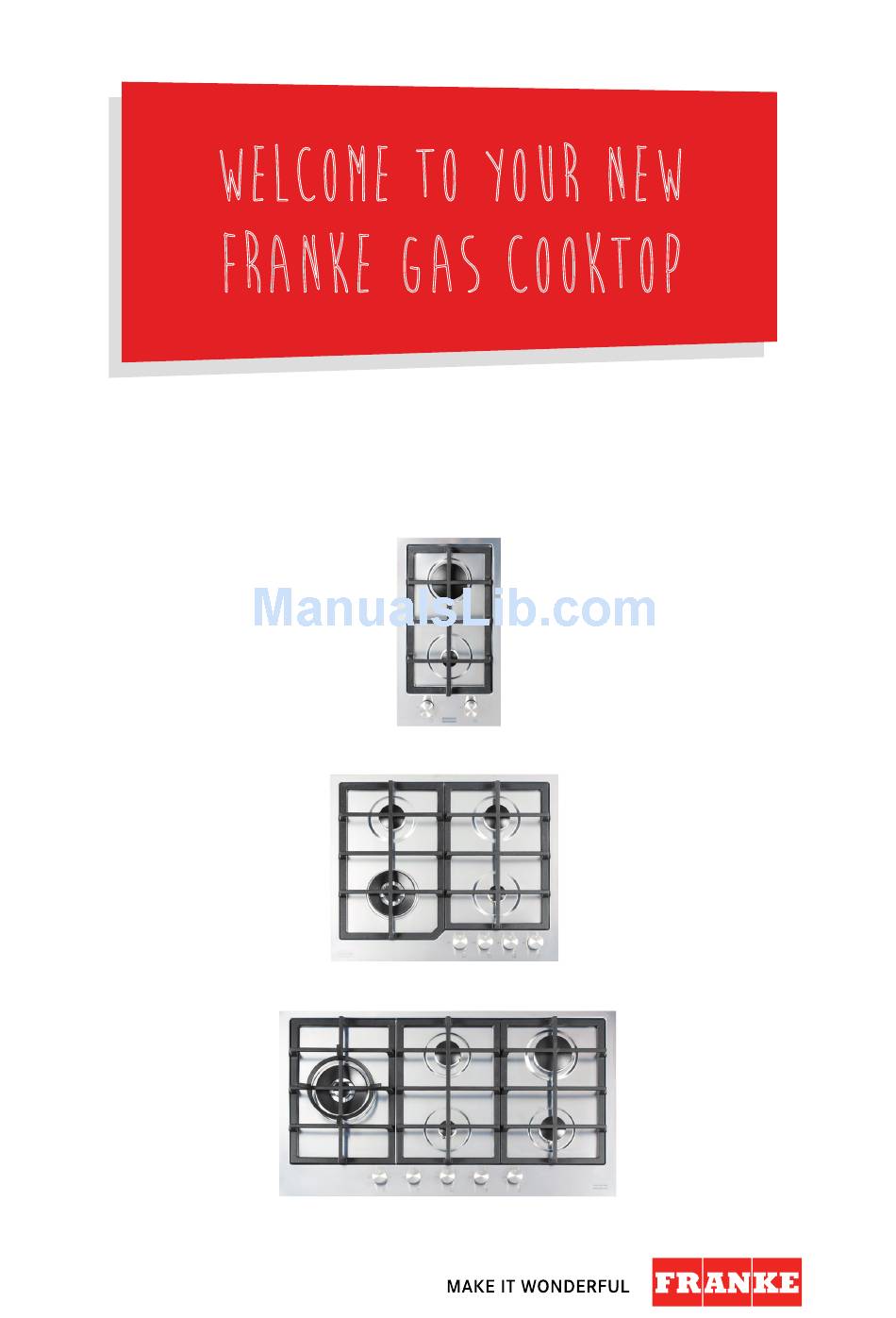

- Page 1 Welcome to your new Franke GAS COOKTOP You’re about to begin a very happy and delicious relationship. Let’s get started. This is no ordinary cooktop. FRG302S1 - 30CM GAS COOKTOP FRG604S1 - 60CM GAS COOKTOP FRG905S1 - 90CM GAS COOKTOP...
- Page 2 Australia: 03 9700 9100 | info@prks.com.au New Zealand: 09 964 0400 | info@prks.co.nz WARRANTY Your Franke product is protected by a 2-year warranty. Should you ever need to make a warranty enquiry, simply contact our service department. Australia: 03 9700 9100 | service@prks.com.au New Zealand: 09 964 0400 | service@prks.co.nz...
-
Page 3: Table Of Contents
Chapter 2: Life with your Franke Cooktop Operating your cooktop In case of power failure Pans Chapter 3: Getting the most out of your Franke Cooktop Cleaning and care Chapter 4: Problem, meet solution Trouble shooting Chapter 5: Last, but not least... -
Page 4: Chapter 1: Ready, Set Up, Go
CHAPTER 1 READY, SET UP, GO Your Franke cooktop is designed to be set up quickly and easily - so you can start creating delicious masterpieces even sooner. Chapter 1 Ready, set up, go... -
Page 5: Important Warnings
IMPORTANT WARNINGS • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children shall be kept away unless continuously supervised. • Prevent the children to hang around the appliance and warn them properly against the danger of burns. •... -
Page 6: Instructions For Use
INSTRUCTIONS FOR USE Instructions for use have been prepared for the user, and describe the appliance and the way it is handled. These instructions are intended for various types of appliances, so you may find some descriptions for the functions that your particular appliance may not have. These instructions are only valid of the country symbol is indicated on the appliance. - Page 7 WHEN THE APPLIANCE IS INSTALLED SO THAT THE BASE CAN BE TOUCHED, A PROTECTING SHIELD MUST BE FITTED. THIS SHIELD MUST BE AT LEAST 20 MM FROM THE LOWEST PART OF THE APPLIANCE AND BE CAPABLE OF WITHSTANDING THE APPLIANCE TEMPERATURES. •...
- Page 8 50 mm min. 20 mm min. 80 mm min. 5 mm 25-40 mm min. 250 mm Gas inlet is located at the rear right 25mm from the edge FRG302S1 FRG604S1 FRG905S1 288 mm 600 mm 880 mm 510 mm...
- Page 9 CONNECTING TO THE POWER MAINS • The appliance may ONLY be connected by an authorized qualified technician. • Electric system protection should comply with all relevant regulations. • The connection clips can be accessed when the connection clip covers are opened removed. •...
- Page 10 CONNECTING TO THE GAS SUPPLY • Connection to the gas supply, or conversion from one type of gas to another, should only be undertaken by an approved and registered gas installer in strict accordance with local and national safety and building regulations. •...
- Page 11 Connection There are two ways to carry out the connection to the main gas line: A. The hotplate can be connected with rigid pipe as specified in AS/NZS5601. B. The hotplate can be connected with a Flexible Hose, which complies with AS/NZS 1869 (Australian Certified), 10mm ID, class B or D, no more than 1.2m long and in accordance with AS/NZS5601.
- Page 12 MINIMUM FLOW ADJUSTMENT Instructions for Natural Gas Light the burner and bring it to the minimum position. Remove the control knobs, including the gaskets. Turn the adjustment screw on the side of the tap rod until a regular minimum flame is obtained: ·...
-
Page 13: Disposal
Dispose of all packaging in an environmentally friendly manner. Franke practises environmentally conscious behaviour, and this appliance is labelled in accordance with the used electrical and electronic appliances waste guidelines. If you have any questions on disposals, please call the Franke customer service team on 03 9700 9100. SURROUNDING AREA WARNINGS Cupboards around the cooktop must not interfere with the ventilation, or obstruct adequate airflow around the appliance. -
Page 14: Chapter 2: Life With Your Franke Cooktop
CHAPTER 2 life with your franke cooktop We designed this cooktop with one thing in mind. How do we create a wonderfully simple user experience for you, our customer? Chapter 2 Life with your Franke Cooktop... -
Page 15: Operating Your Cooktop
If there is a power failure, for example during a storm and there is no power available to ignite the cooktop, it is still possible to use your Franke appliance, following the above steps, but using a match to light the gas burner. Take extra caution when doing this and use long matches. -
Page 16: Chapter 3: Getting The Most Out Of Your Franke Cooktop
CHAPTER 3 getting the most out of your franke cooktop Getting the most out of your Franke cooktop. Your Franke cooktop turns work into play, and inspires creativity every single day. Chapter 3 Getting the most out of your Franke cooktop... -
Page 17: Cleaning And Care
CLEANING AND CARE We want your Franke Appliance to be looking this good for a long time to come. To ensure that the various surfaces are not damaged through cleaning, please observe the following: Plastic: Hot soapy water with a soft cloth. -
Page 18: Chapter 4: Problem, Meet Solution
CHAPTER 4 problem, meet solution We don’t expect your experience with your new Franke cooktop to be anything but wonderful, but here’s some trouble shooting remedies just in case. Chapter 4 Problem, meet solution... -
Page 19: Trouble Shooting
TROUBLE SHOOTING You shouldn’t have any issues with your Franke Appliance, however there are some problems which can easily be fixed by trouble shooting the table below. If you can’t find your problem, or the remedy has not fixed the issue, then give our friendly customer service team a call on 03 9700 9100. -
Page 20: Chapter 5 Last But Not Least
CHAPTER 5 last but not least This section contains the warnings, precautions and legal notices to make sure everything runs smoothly. Chapter 5 Last but not least... - Page 21 ELECTRIC SHOCK HAZARD Never carry out an repairs yourself, always get an authorized technician to do any repairs or maintenance on your cooktop. If any electrical components become damaged or there is exposed wiring, there is a risk of electrical shock. Ensure whenever the cooktop is in operation and you come into contact with it, that appropriate footwear is worn.
-
Page 22: Glossary
GLOSSARY Abrasive - a course and harsh substance capable of polishing or cleaning a surface by rubbing or grinding. Cabinetry - a collection of cupboards with drawers or shelves. Circuit breaker - and automatic device for stopping the flow of current in an electrical circuit for safety reasons. - Page 23 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au PR Kitchen & Washroom Systems NZ Ltd P.O Box 53171, Auckland Airport Auckland 2150 New Zealand Phone 09 964 0400 09 964 0401 info@prks.co.nz...
