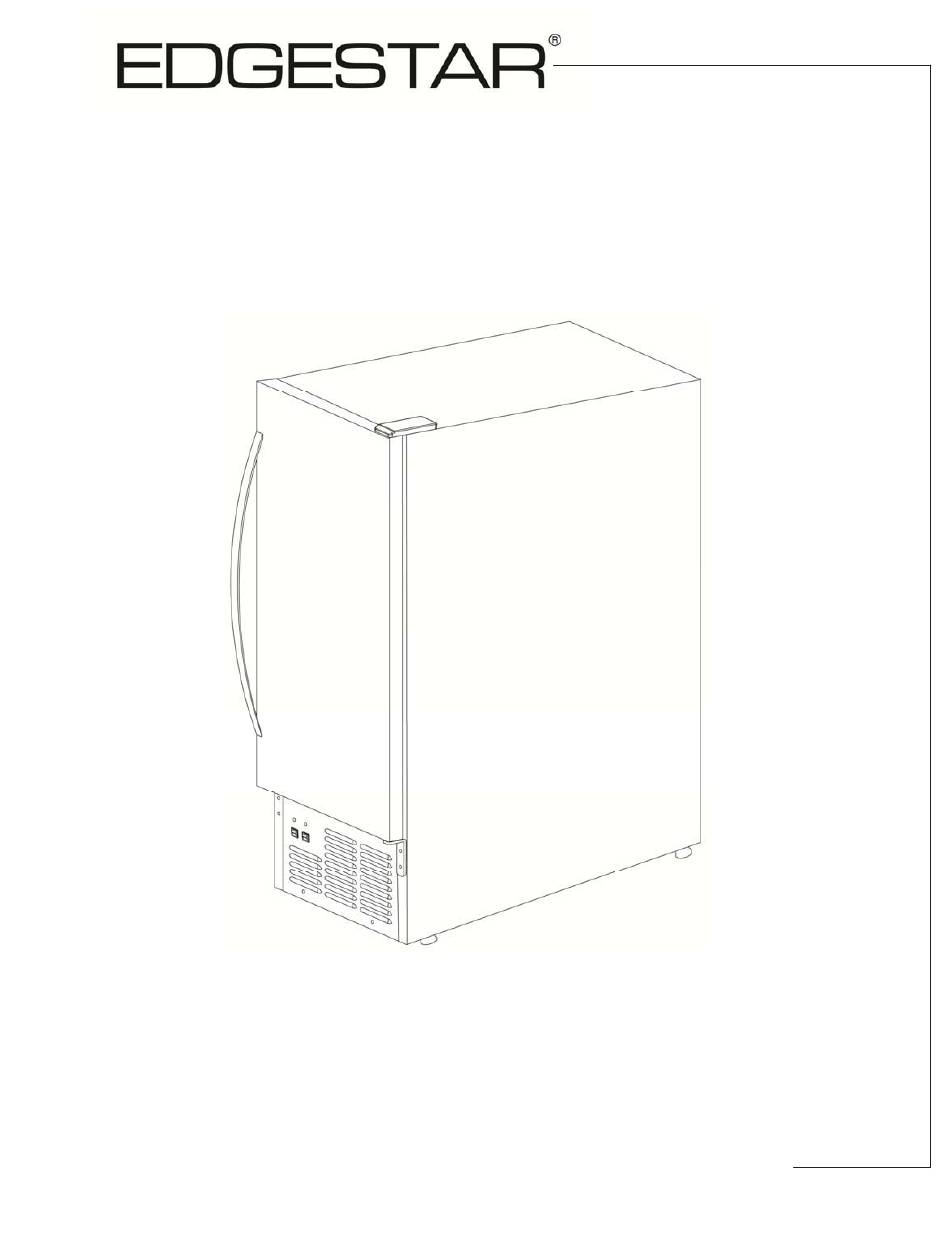

- Page 1 Outdoor Ice Maker OIM450SS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and/or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
Installation should only be done by a licensed plumber. This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your ice maker for the latest technical information. EdgeStar Built-in Ice Maker... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar ice maker. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Water Through Float Door Ice Storage Bin Power Indicator Light Clean Indicator Light On/Off Switch Clean Switch Leveling Foot Back View Ice Scoop Control Panel Cover Casters- Set of four Power Plug Water inlet Drain outlet EdgeStar Built-in Ice Maker... -
Page 6: Installing The Ice Maker
Installing the Ice Maker The ice maker should be installed by a licensed plumber to be in accordance with local electrical and plumbing code requirements. Before you plug the ice maker in to a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 7: Installation Clearance Requirements
• A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. • IMPORTANT: Do not kink or pinch the power supply cord between the ice maker and wall or cabinet. EdgeStar Built-in Ice Maker... -
Page 8: Electrical Requirements
Electrical Requirements Electrical Shock Hazard Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter. Never use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death Before you move your icemaker into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz.), properly grounded in... -
Page 9: Leveling The Ice Maker
IMPORTANT: Once you are ready to install it in a cabinet or directly on the floor, you must adjust the feet to level the ice maker. If the floor is level, just revolve the two front feet to touch the floor. EdgeStar Built-in Ice Maker... -
Page 10: Reversing The Door Swing
Reversing the Door Swing Tools needed: flathead screwdriver, Phillips screwdriver IMPORTANT: Before you begin, unplug the ice maker or disconnect power. To remove door from hinges: 1. Using a Phillips screwdriver, remove the screws and take off top hinge. Keep the parts together and set them aside. 3. -
Page 11: Water Supply Connections
A floor drain is also acceptable. 4. Pour 1 gallon of water into the ice storage bin to check for proper drainage. Note: a condensate pump can allow for installation further from your drain. Consult your plumber for advice. EdgeStar Built-in Ice Maker... -
Page 12: Operation
OPERATION Final Check List before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Did you clean the ice storage bin? 3. Have the installation instructions been followed, including connecting the machine to water and electricity? Does the unit have proper drainage? 4. -
Page 13: How The Machine Makes Ice
During the ice-making process, fresh water enters the water trough continuously as the water from the trough freezes continuously on the evaporator. Evaporator Water Inlet Water Pump Hot Gas Valve Condenser Compressor EdgeStar Built-in Ice Maker... -
Page 14: Normal Sounds
Normal Sounds Your new icemaker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. -
Page 15: Cleaning And Maintenance
If the door panel is stainless finish, it can discolor when exposed to chlorine gas and moisture. Clean stainless finish with a cloth dampened with a mild detergent and warm water solution. Never use an abrasive cleaning agent. EdgeStar Built-in Ice Maker... -
Page 16: Interior Cleaning
Interior Cleaning The ice storage bin should be sanitized occasionally. Clean the water trough before the ice maker is used for the first time and reused after stopping for an extended period of time. It is usually convenient to sanitize the trough after the ice making system has been cleaned and the ice storage bin is empty. -
Page 17: Water Distribution Tube Cleaning
9. Repeat step 5 to rinse the ice making system one more time. 10. Place the ICE/OFF/WASH selector switch to the “ICE ” position. The machine will return to the regular ice making mode. Discard the first batch of ice. EdgeStar Built-in Ice Maker... - Page 18 Control Panel (rear of unit) Descriptions of LEDs and buttons: 1. Ice Full (Red) LED: Ice Full indicator light. When this LED is lit, the ice storage bin is full of ice or there is something obstructing the ice-full probe. The unit will stop working. When ice Light cubes are taken out of the ice storage bin, clearing the ice-full probe, the red LED will keep flashing for 3 minutes.
-
Page 19: Troubleshooting
Use the correct plug and outlet. maker is electrified. Scale builds up The calcium level in the water is Use a water-softening apparatus installed in quickly inside the too high. front of the water inlet valve. machine. EdgeStar Built-in Ice Maker... -
Page 20: Specifications
Specifications Description of product Outdoor Ice Maker Model OIM450SS Voltage/Frequency AC 115V~60Hz Ice-Making / Ice-Harvest rated 3.0A / 3.6A current Estimated Power Consumption 12.2 kWh/100 lbs. of ice Color Stainless Steel Ice Storage capacity 25 lbs maximum Ice-making capability 50 lbs / day ** Refrigerant R134a, 3.17 oz. -
Page 21: Warranty
Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase. - Page 22 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2013 Living Direct, Inc. All rights reserved.
