Asus PRIME H110M2/FPT Manual page 13

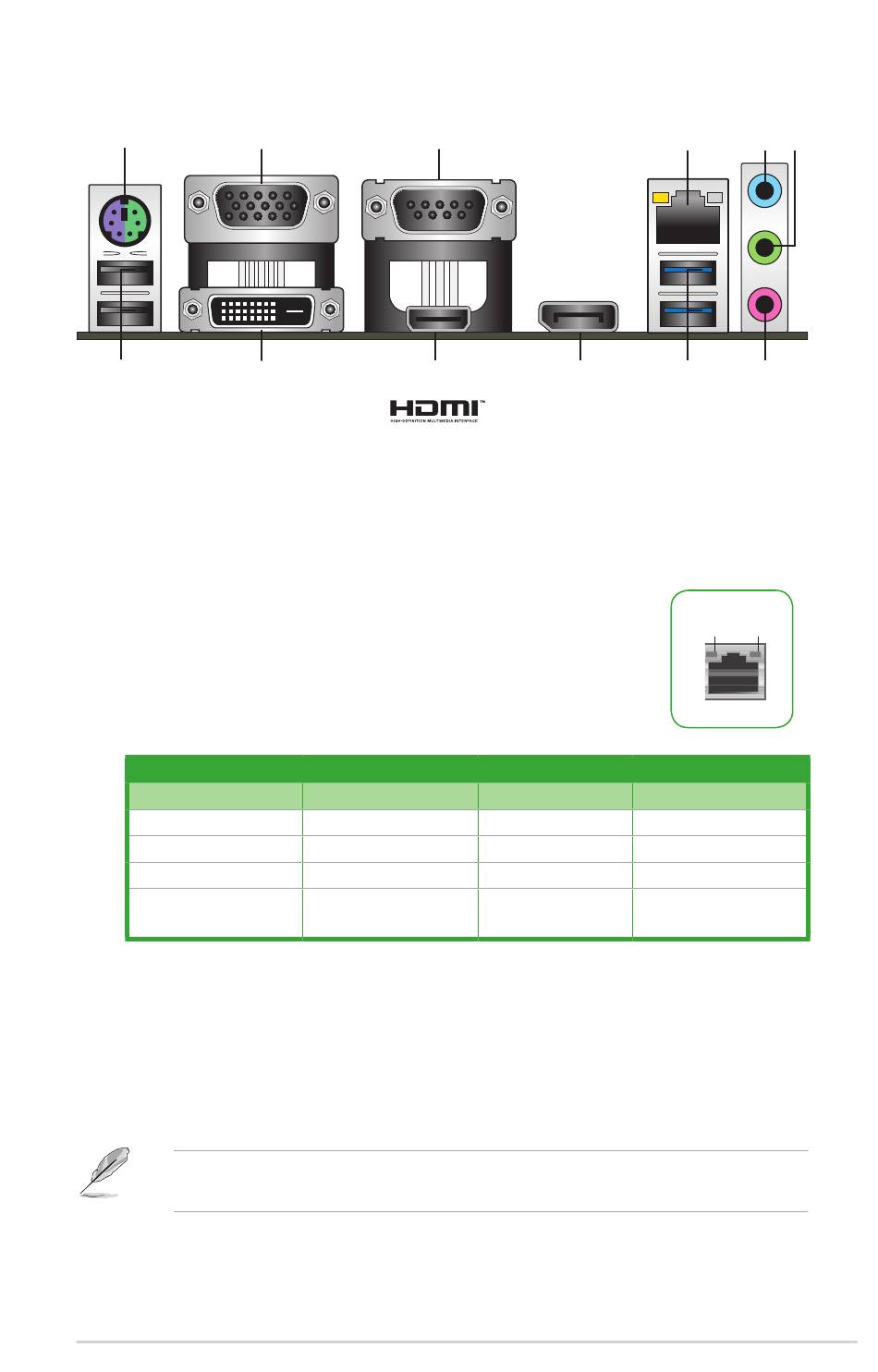

Rear panel connectors
1
12
1. PS/2 keyboard/mouse combo port. This port is for a PS/2 mouse or keyboard.
2. Video Graphics Adapter (VGA) port. This 15‑pin port is for a VGA monitor or other
VGA‑compatible devices.
3. Serial port connector (10-1 pin COM1). This port connects a modem, or other
devices that conform with serial specification.
4. LAN (RJ-45) port. This port allows Gigabit connection to a Local
Area Network (LAN) through a network hub.
LAN port LED indications
Activity/Link LED
Status
Off
Orange
Orange (Blinking)
Orange (Blinking
then steady)
5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
6. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1
and 7.1‑channel configurations, the function of this port becomes Front Speaker Out.
7. Microphone port (pink). This port connects to a microphone.
Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or
7.1‑channel configuration.
ASUS PRIME H110M2/FPT
2
11
Description
No link
Linked
Data activity
Ready to wake up
from S5 mode
3
10 9
Speed LED
Status
OFF
ORANGE
GREEN
_
4
5 6
8 7
Speed
Activity Link
LED LED
LAN port
Description
10Mbps connection
100Mbps connection
1Gbps connection
_
1‑5
