Intel
H110 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4)
®
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA
6.0 Gb/s signal cables.
System panel connector (10-1 pin F_PANEL)
This connector supports several chassis‑mounted functions.
Speaker connector (4-pin SPEAKER)
This 4‑pin connector is for the chassis‑mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.

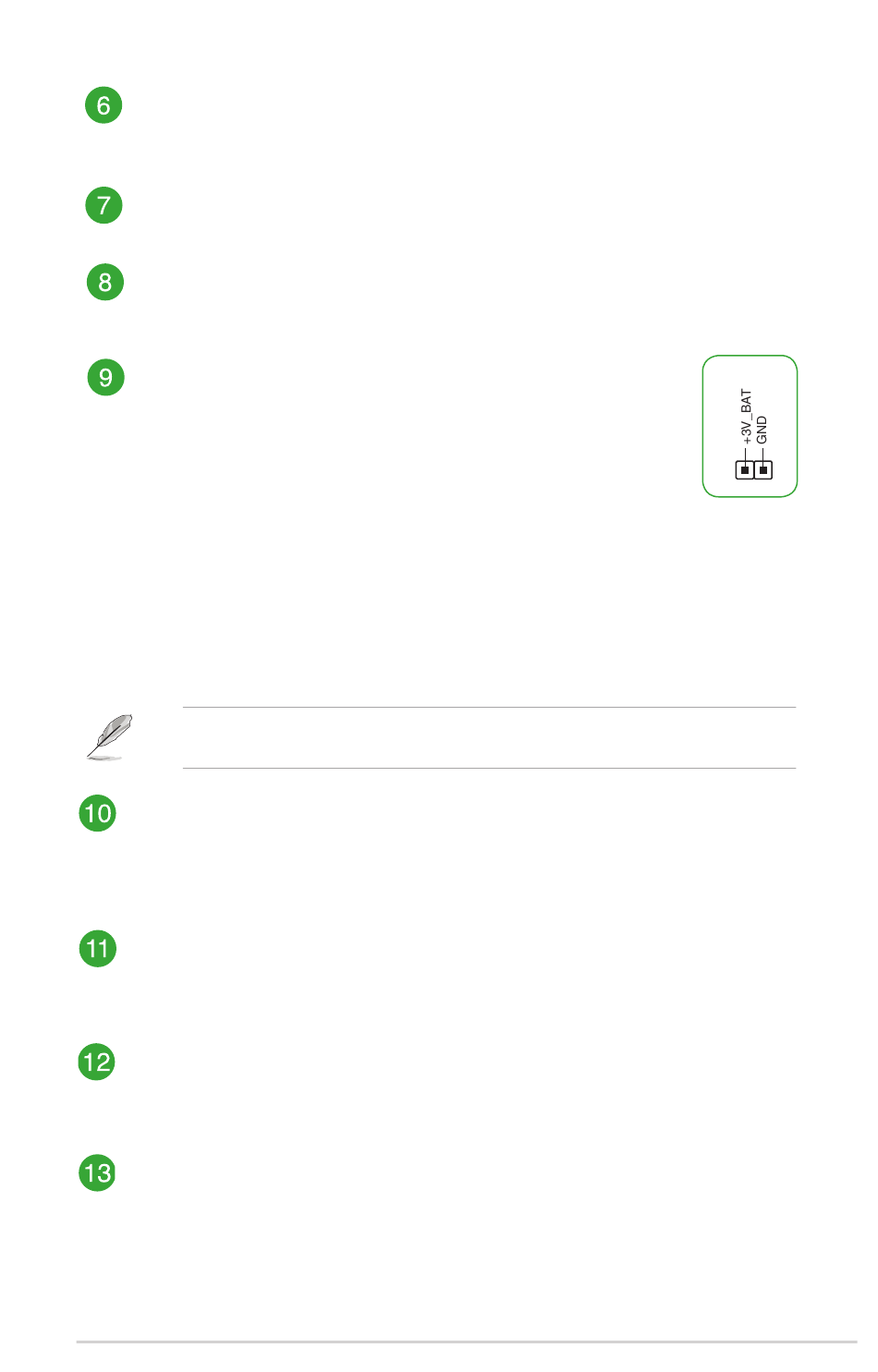

Clear RTC RAM (2-pin CLRTC)
This header allows you to clear the CMOS RTC RAM data of
the system setup information such as date, time, and system
passwords.
To erase the RTC RAM:
1.
Turn OFF the computer and unplug the power cord.
2.
Use a metal object such as a screwdriver to short the two
pins.
3.
Plug the power cord and turn ON the computer.
4.
Hold down the <Del> key during the boot process and enter
BIOS setup to re‑enter data.
If the steps above do not help, remove the onboard battery and short the two pins again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
USB 2.0 connectors (10-1 pin USBE12, USBE34, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connector, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specifications and supports
up to 480Mbps connection speed.
LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer.
LPT standardizes as IEEE 1284, which is the parallel port interface on IBM PC‑
compatible computers.
Serial port connector (10-1 pin COM2)
This connector is for a serial (COM) port. Connect the serial port module cable to
this connector, then install the module to a slot opening at the back of the system
chassis.
Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Connect the S/PDIF Out module cable to this connector, then install the module to
a slot opening at the back of the system chassis.
ASUS PRIME H110M2/FPT
CLRTC
PIN 1
1‑3
