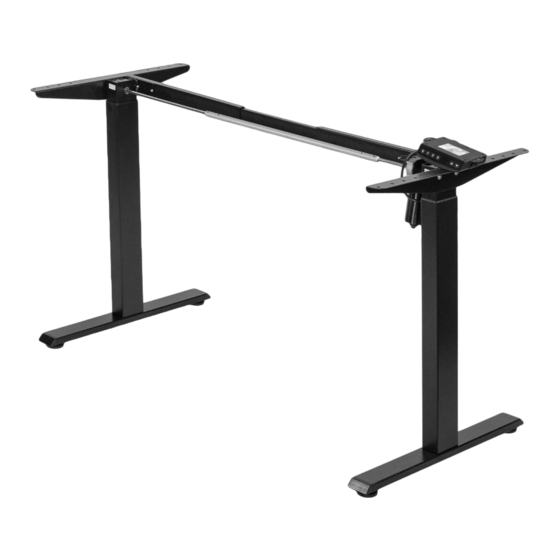

White Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-E-100W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e-100b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E-100W
Summary of Contents for Vivo DESK-E-100W
- Page 1 White Electric Single Motor Desk Frame Instruction Manual SKU: DESK-E-100W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e-100b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Tools Needed
DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (80kg) TOOLS NEEDED Phillips Drill Tape Screwdriver Measure ASSEMBLY STEPS STEP 1 Loosely assemble the Telescopic Cross Bar Set (A) making sure the locking holes are facing up as shown below. - Page 4 STEP 2 Attach Cross Bar (A) to both the Motorized Leg (B) and Non-motorized Leg (C) using M6x10 bolts (K), making sure the locking bolts are still facing up on the Cross Bar. Tighten with Allen Wrench (T). STEP 3 Attach Side Brackets (D) to both ends of the frame using M6x10 bolts (K).
- Page 5 Wrench (T). STEP 5 FOR VIVO DESKTOP: Adjust frame width until the Side Bracket (D) holes line up with the pre-drilled holes on the desktop. Adjust center crossbar section until all M6x8 bolts (J) are able to make contact, then fully tighten using Allen Wrench (T). To attach the desktop, refer to the manual included with your desktop.
-
Page 6: Set Screws
STEP 7 Loosen the preinstalled set screws on the Sync Rod Center Shaft (F) using Allen Wrench (S). Slide the Sync Rod Center Shaft (F) onto the installed motor Sync Rod Hex Shaft (G) as far as it will go. Then install the second Sync Rod Hex Shaft (G) into the Sync Rod Center Shaft (F). - Page 7 STEP 10 Plug cables together as shown below. Tidy up cables using Cable Clips (P). Attach AC Adapter (N) to desktop using ST4.8x16 screws (H), the Screw-on Eyelets (Q), and 10" Zipties (R) as shown below. Note: A desk reset is required before use. Refer to the Controller User Guide for operational instructions.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
