ATX PS/2 Keyboard/Mouse Ports

The ATX PS/2 keyboard and PS/2 mouse are located above USB Ports
0/1 on the motherboard.
VESA® DisplayPort™
DisplayPort, develped by the VESA consortium, delivers digital display at
a fast refresh rate. It can connect to virtually any display device using a
DisplayPort adapter for devices such as VGA, DVI or HDMI.

HDMI Port

One HDMI (High-Definition Multimedia Interface) port is located on the
I/O back panel. This connector is used to display both high definition
video and digital sound through an HDMI capable display using a single
HDMI cable (not included).

DVI Port

A DVI port is located on the I/O back panel. Use this port to connect to
a compatible DVI (Digital Visual Interface) display.
A
B
D
C
2-17
Chapter 2: Installation

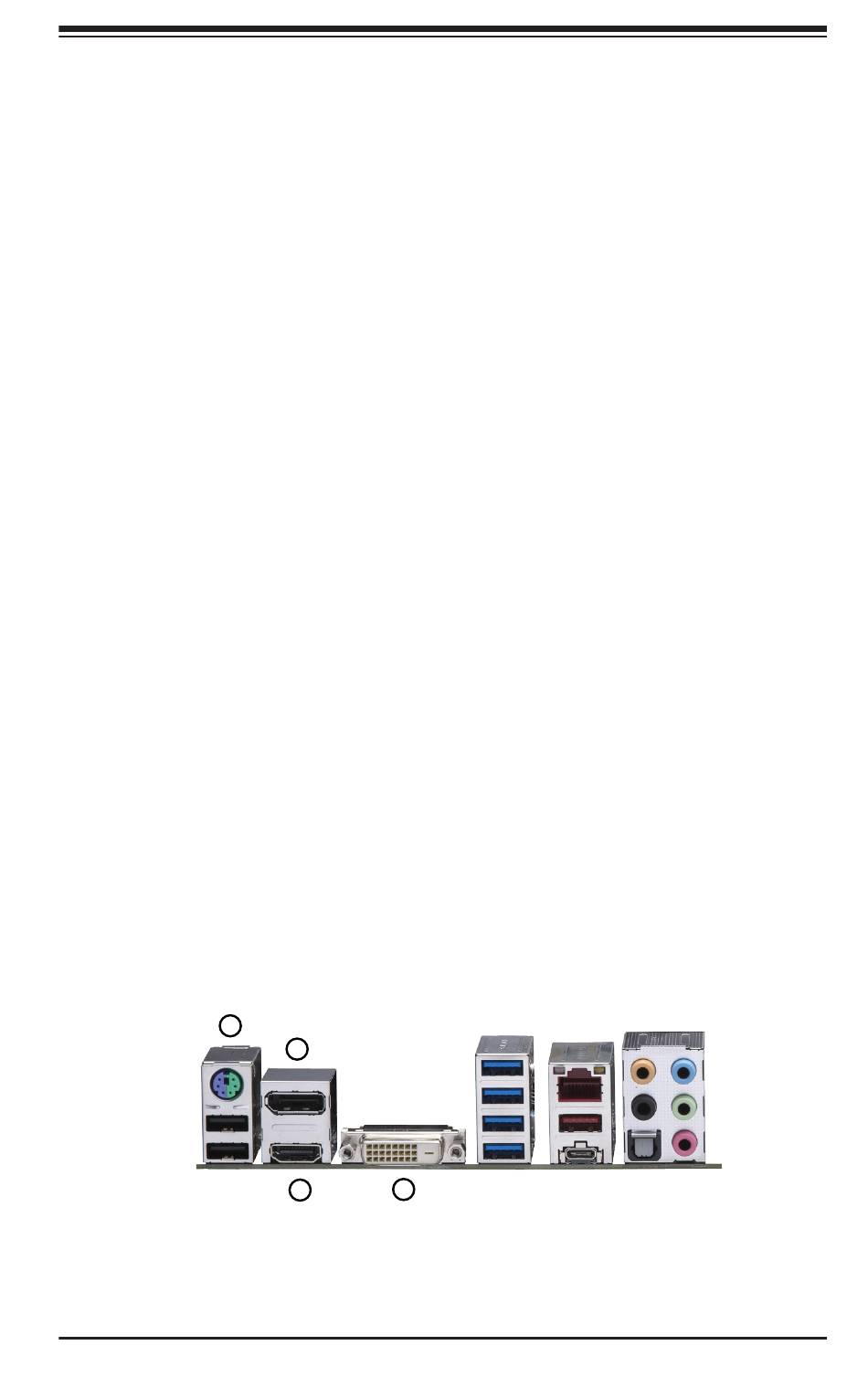

A. PS/2 Keyboard/Mouse Port
B. VESA Display Port
C. HDMI Port
D. DVI Port
