Icom IC-M423G Instruction Manual page 59

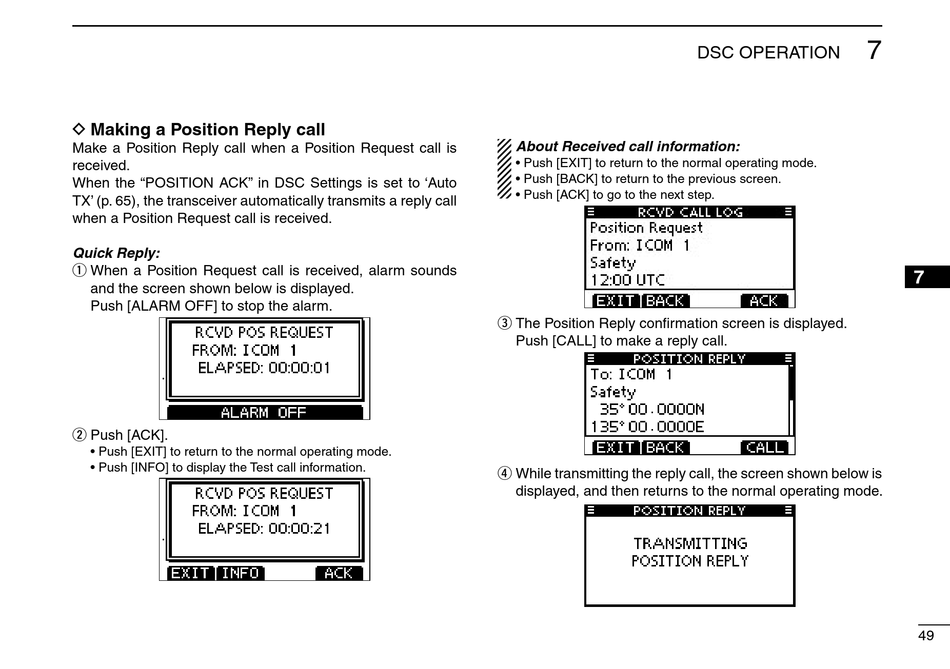

D Making a Position Reply call
Make a Position Reply call when a Position Request call is
received.
When the "POSITION ACK" in DSC Settings is set to 'Auto
TX' (p. 65), the transceiver automatically transmits a reply call
when a Position Request call is received.
Quick Reply:
q When a Position Request call is received, alarm sounds
and the screen shown below is displayed.
Push [ALARM OFF] to stop the alarm.
w Push [ACK].
• Push [EXIT] to return to the normal operating mode.
• Push [INFO] to display the Test call information.
About Received call information:
• Push [EXIT] to return to the normal operating mode.
• Push [BACK] to return to the previous screen.
• Push [ACK] to go to the next step.
e The Position Reply confirmation screen is displayed.
Push [CALL] to make a reply call.
r While transmitting the reply call, the screen shown below is
displayed, and then returns to the normal operating mode.
