Instruction Manual
1/2/4 Port USB 2.0 Extender over Cat5 or Cat6 - Up to 330 ft (100m)
USB2001EXT2/USB2002EXT2/USB2004EXT2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x USB 2.0 extender local unit
• 1 x USB 2.0 extender remote unit
• 1 x USB cable
• 1 x universal power adapter (NA, JP, EU, UK, ANZ)
• 1 x mounting kit
• 1 x quick-start guide
System Requirements
• USB enabled computer system with available USB port
• Available AC power outlet
• Solid core Category 5e unshielded twisted pair (UTP) or greater cabling.
Installation
1. Place the Local and Remote units at the desired locations and
connect together using RJ45 terminated Cat5 or Cat6 cabling.
a) If you are using surface cabling, ensure you have enough Cat5e
cabling to connect the Local Unit to the Remote Unit's location,
and that each end is terminated with a RJ45 connector. The cabling
cannot go through any networking equipment (i.e. router, switch).
OR
b) If you are using premise cabling, ensure that the Cat5e
cabling between the Local Unit to the Remote Unit has been
properly terminated in a wall outlet in each location and there is
a patch cable long enough to connect the Remote Unit to their
respective outlets. The cabling cannot go through any networking
equipment (i.e. router, switch).
2. Connect the included power adapter to the Local unit
(USB2002EXT2) or the Remote unit (USB2004EXT2/USB2001EXT2).
Note: connect an additional power adapter (sold separately) to the
local unit (USB2004EXT2/USB2001EXT2) for cases where the host
computer is not able to supply enough power.
3. Connect the Local unit to the host computer system with a USB
cable. The computer can be either powered On or Off. The operating
system should detect the extender and install it automatically.
4. USB devices can now be connected to the Remote unit. Once they
are connected they will be recognized and operate through the
extender.
For the most up-to-date information, please visit: www.startech.com

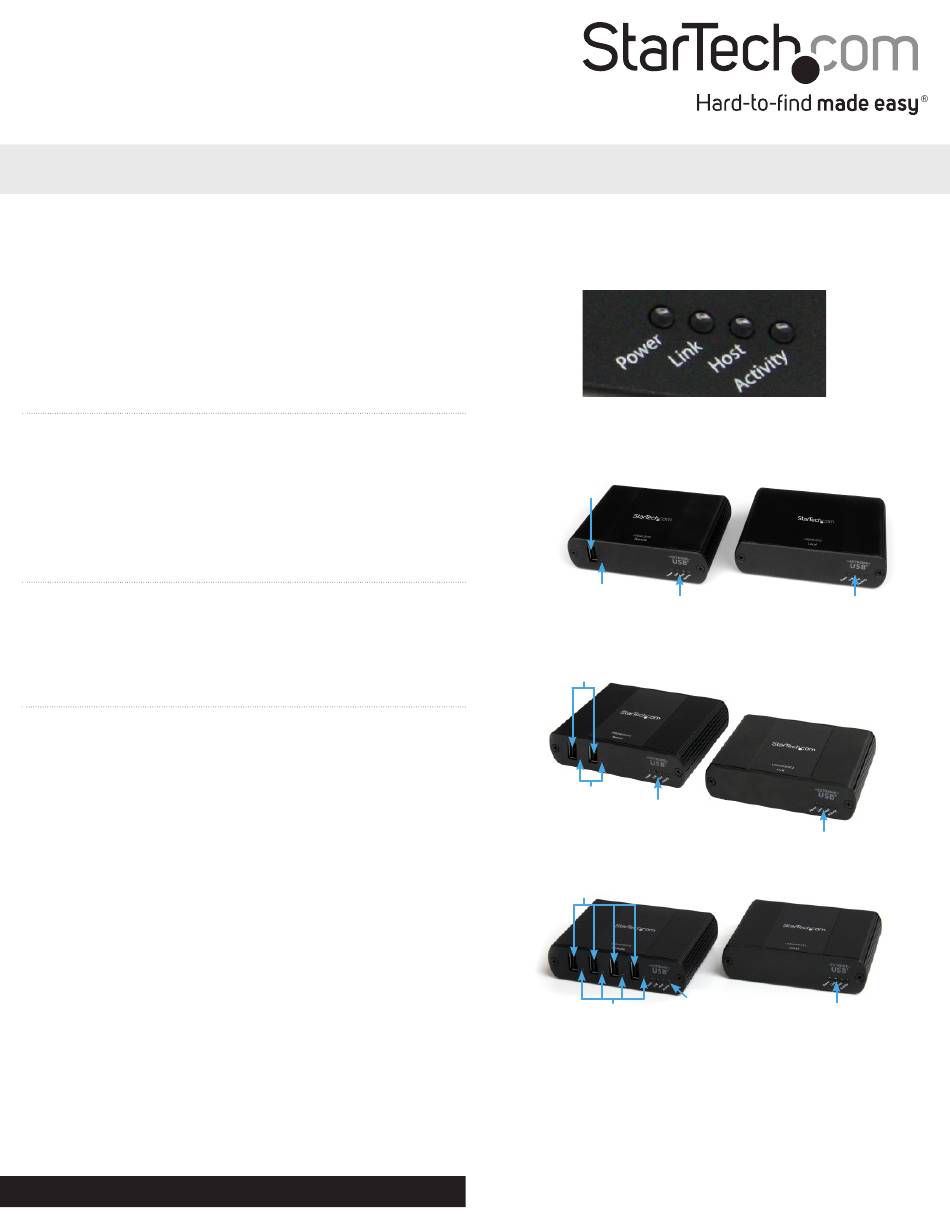

LED Status Indicators
USB2001EXT2 Front
Remote Unit
USB Type A
Connector
USB Device
Status LED
Extender Status
Indicators
LED Indicators
USB2002EXT2 Front
USB Type A
Remote Unit
Connector
USB Device
Status LED
Extender Status
Indicators
LED Indicators
USB2004EXT2 Front
USB Type A
Remote Unit
Connector
USB Device
Status LED
Indicators
Local Unit
Extender Status
LED Indicators
Local Unit
Extender Status
LED Indicators
Local Unit
Extender Status
Extender Status
LED Indicators
LED Indicators
Manual Revision: 02/23/2018
