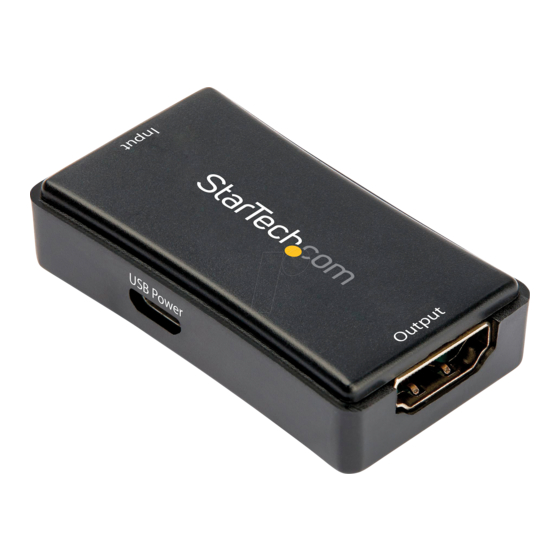

StarTech.com HDBOOST4K2 Quick Start Manual

HDMI® Signal Booster and Extender - 4K 60Hz

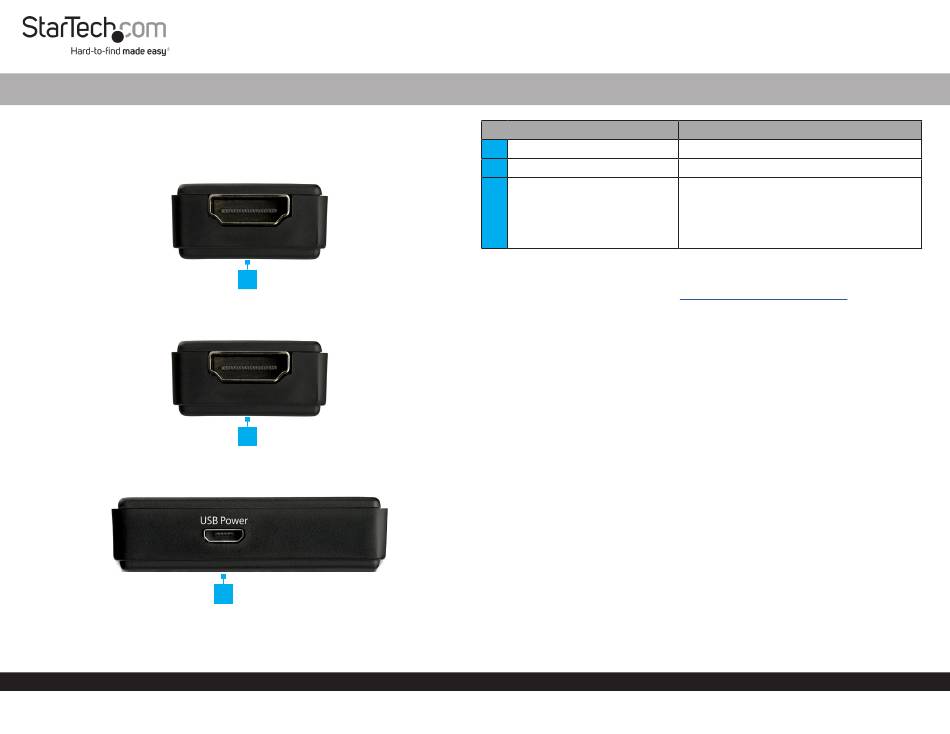

Product Diagram (HDBOOST4K2)
Front View
Rear View
Side View
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
2
3
Component
1
HDMI Input Port
2
HDMI Output Port
3
Micro USB Power Port
Requirements
For the latest requirements, please visit www.startech.com/HDBOOST4K2.
• HDMI Source Device x 1
• HDMI Display Device x 1
• HDMI Cables x 2
Notes: It is recommended that you use Premium HDMI Cables when connecting
Devices to the HDMI Signal Booster and Extender.
To achieve a full 4K60Hz image, it is recommended that Premium HDMI Cables no
longer than 7m on the HDMI Input and 7m on the HDMI Output ends are used.
• (Optional) USB Power Source x 1
Installation and Operation
1. Ensure all of the Devices are powered Off.
2. Connect an HDMI Cable to the HDMI Output Port on the HDMI Source Device and
to the HDMI Input Port on the HDMI Signal Booster and Extender.
3. Connect an HDMI Cable to the HDMI Output Port on the HDMI Signal Booster
and Extender and to the HDMI Input Port on the HDMI Display Device.
4. Power On all of the Devices.
Quick-Start Guide
Function
• Connect an HDMI Source Device
• Connect an HDMI Display Device
• Connect the Micro USB Cable to the HDMI
Signal Booster and Extender and a USB
Power Source when there is no signal
or an intermittent signal on your HDMI
Display Device
Manual Revision: July 4, 2019
