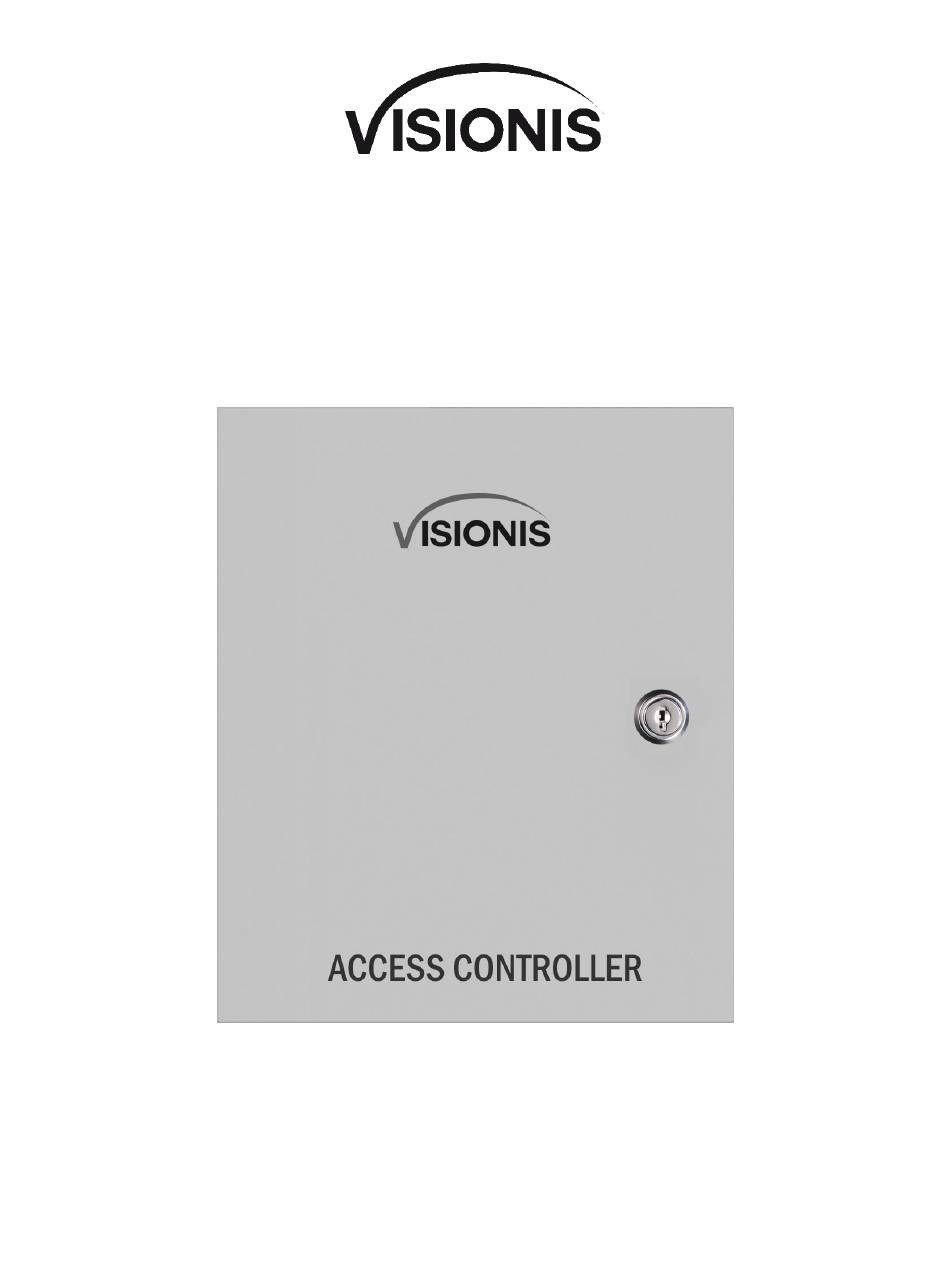

- Page 1 Four Door Access Controller Panel Board TCP/IP Wiegand with Software and Power Supply Included 10,000 Users VS-AXESS-4D-ETL-PCB Installation Manual...
- Page 2 (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Visionis. Unless otherwise stipulated, Visionis does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
- Page 3 Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 4 Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: Ensure unit is installed in a well-ventilated, dust-free environment. Keep all liquids away from the device. Ensure environmental conditions meet factory specifications. ...
-
Page 5: Table Of Contents
Content CHAPTER 1 PRODUCT DESCRIPTION ..................6 OVERVIEW........................ 6 PRODUCT FUNCTION ..................... 6 CHAPTER 2 APPEARANCE ......................7 CHAPTER 3 TERMINAL CONNECTION ..................9 TERMINALS DESCRIPTION ....................9 CHAPTER 4 EXTERNAL DEVICE WIRING ................. 12 CARD READER WIRING ..................... 12 INSTALLING DOOR LOCK .................... -
Page 6: Chapter 1 Product Description
Chapter 1. Product Description 1.1 Overview VS-AXESS-4D-ETL-PCB is a powerful and stable access controller, using the logical architecture design. VS-AXESS-4D-ETL-PCB is designed with TCP/IP network interface and its signal processed with special encryption and can be run offline. Anti-tampering function is also supported. -
Page 8: Chapter 2 Appearance
Chapter 2. Appearance 2.1 Component Description Access Controller Component Schematic Diagram The component schematic diagram is shown below. Figure 2-1 VS-AXESS-4D-ETL-PCB Component Schematic Diagram... - Page 9 Table 2-1 VS-AXESS-4D-ETL-PCB Component Description Component Description VS-AXESS-4D-ETL-PCB Door Lock 1/2/3/4 Indicator Power Indicator Network Indicator Jumper Cap for Restoring Factory Settings Working Indicator Alarm Output Indicator Alarm Output (NO/NC) Jumper Cap...
-
Page 10: Chapter 3 Terminal Connection
Chapter 3 Terminal Connection 3.1 Terminals Description Figure 3-1 VS-AXESS-4D-ETL-PCB Terminal Description Table-3-1 VS-AXESS-4D-ETL-PCB Terminal Description VS-AXESS-4D-ETL-PCB Alarm Input 4 Grounding Alarm Input 3 Alarm Input Alarm Input 2 Grounding Alarm Input 1 Door 4 Door Lock Relay Output (Dry Contact) - Page 11 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 3 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 2 BUTTON Door Button Input Grounding SENSOR Door Magnetic detector Door Lock Relay Output (Dry Contact) Door 1...
- Page 12 Card Reader Power Output Indicator of Card Reader Control Output (Valid Card Output) Indicator of Card Reader Control Output (Invalid Card Output) Wiegand Card Card Reader Buzzer Control Output Reader 3 Wiegand Head Read Data Input Data1 Wiegand Head Read Data Input Data0 Card Reader Power Output Indicator of Card Reader Control Output (Valid Card Output)
-
Page 13: Chapter 4 External Device Wiring
readers of door 1 , and the Wiegand card reader 3 and 4 respectively correspond to the entering and exiting card readers of door 2. For single-door access controller, the Wiegand card reader 1, 2, 3 and 4 respectively correspond to the entering card readers of door 1, 2, 3, and 4. -
Page 14: Installing Door Lock
4.2 Installing Door Lock 4.2.1 Installation of Cathode Lock Figure 4-2 Wiring diagram of cathode lock... -
Page 15: Installation Of Anode Lock
4.2.2 Installation of Anode Lock Figure 4-3 Wiring diagram of anode lock 4.3 Connecting the External Alarm Device Figure 4-4 External Alarm Device Connection... -
Page 16: Door Button Wiring Diagram
4.4 Door Button Wiring Diagram Figure 4-5 Power Button Connection 4.5 The Connection of Magnetics Detection Figure 4-6 Magnetics Connection... -
Page 17: Connecting Power Supply
4.6 Connecting Power Supply Figure 4-7 Power Supply Connection Chapter 5 Settings 5.1 Initializing the Hardware Steps: 1. The jumper cap jumps from Normal to Initial. 2. Disconnect the power and restart the access controller, the controller buzzer buzzes a long warning. -
Page 18: Relay Input No/Nc
Note: The initializing of the hardware will restore all the parameters to the default setting and all the device events are wiping out. 5.2 Relay Input NO/NC 5.2.1 Lock Relay Output Lock Relay Normally Open Status Figure 5-2 Normally Open Status Lock Relay Normally Closed Status Figure 5-3 Normally Closed Status... -
Page 19: Alarm Relay Output Status
5.2.2 Alarm Relay Output Status Alarm Relay Output Normally Open Figure 5-4 Alarm Relay Output Normally Open Alarm Relay Output Normally Closed Figure 5-5 Normally Closed Status Work Flow of Software For detailed information, please see the user manual of the client software. Refer to the following work flow:... - Page 20 Figure 6-1 Software Client Work Flow...
-
Page 21: Chapter 6 Activating The Control Panel
Chapter 6 Activating the Control Panel Purpose: You are required to activate the control panel first before you can use the control panel. Activation via SADP, and Activation via client software are supported. 6.1 Activation via SADP Software SADP software is used for detecting the online device, activating the device, and resetting the password. - Page 22 STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
-
Page 23: Activation Via Client Software
6.2 Activation via Client Software The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the control panel. Steps: 1. - Page 24 4. Check the device status from the device list, and select an inactive device. 5. Click the Activate button to pop up the Activation interface. 6. Create a password and input the password in the password field, and confirm the password. Click OK button to start activation.
- Page 25 7. Click OK button to start activation. 8. Click the button to pop up the Network Parameter Modification interface. 9. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. 10.
