Summary of Contents for Visionis VS-AXESS-4DLX

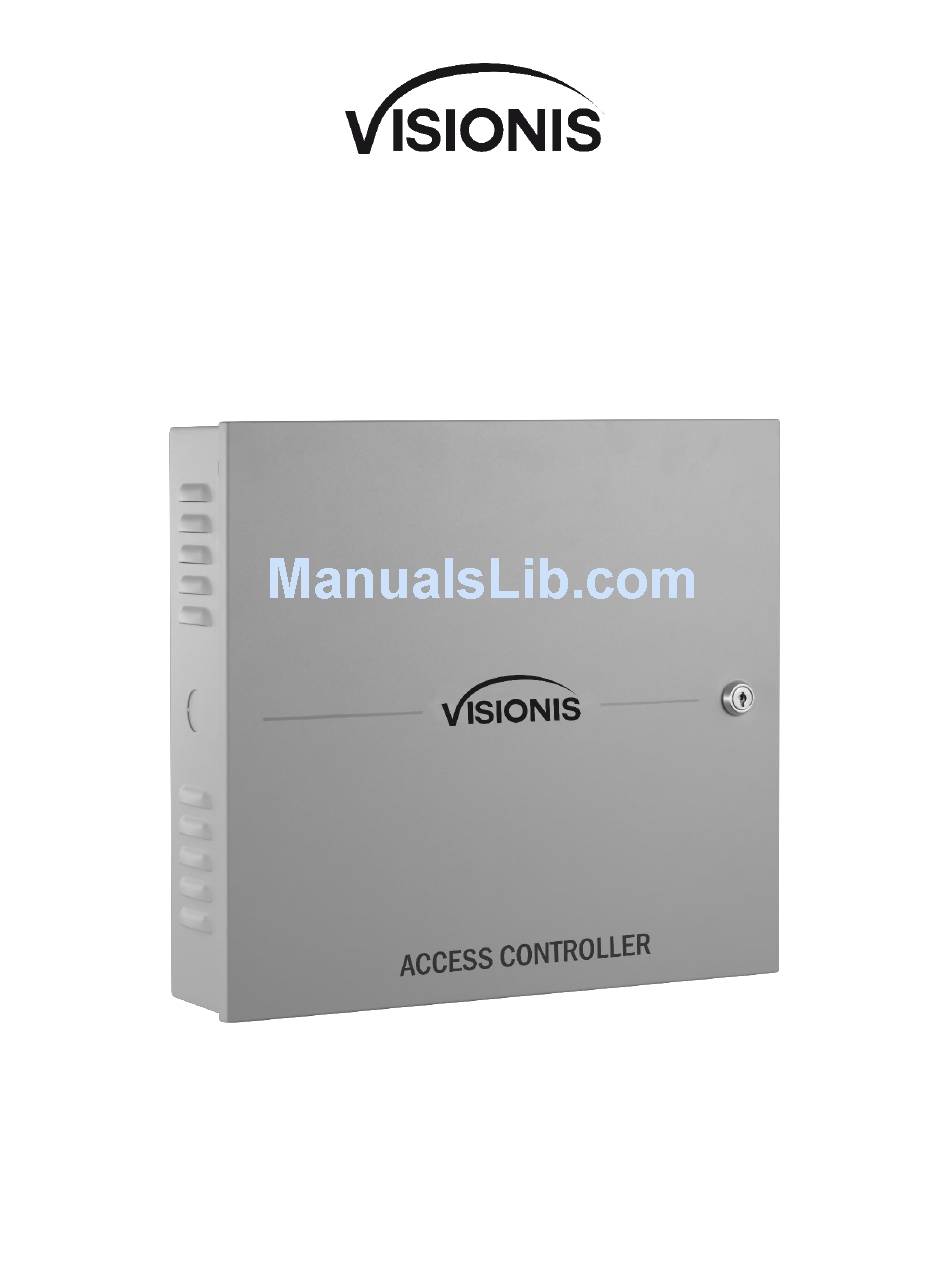

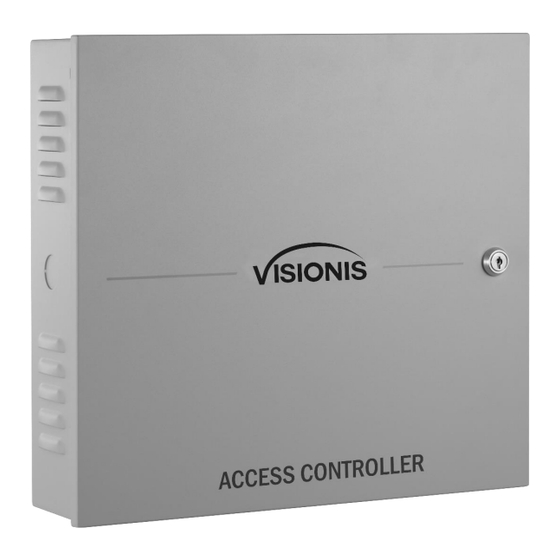

- Page 1 Two Door Access Controller Panel Board TCP/IP Wiegand with Software and Power Supply Included 100,000 Users VS-AXESS-4DLX Installation Manual...
- Page 2 (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Visionis. Unless otherwise stipulated, Visionis does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
- Page 3 Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 4 Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: Ensure unit is installed in a well-ventilated, dust-free environment. Keep all liquids away from the device. Ensure environmental conditions meet factory specifications. ...
-
Page 5: Table Of Contents
Content CHAPTER 1 PRODUCT DESCRIPTION ..................6 OVERVIEW........................ 6 PRODUCT FUNCTION ..................... 6 CHAPTER 2 APPEARANCE ......................7 COMPONENT DESCRIPTION ....................7 CHAPTER 3 TERMINAL CONNECTION ..................9 TERMINALS DESCRIPTION ....................9 CHAPTER 4 CARD READER INSTALLATION ................12 EXTERNAL TERMINAL ....................... 12 CARD READER INSTALLATION .................. -
Page 6: Chapter 1 Product Description
Chapter 1. Product Description 1.1 Overview VS-AXESS-4DLX is a powerful and stable access controller, using the logical architecture design. VS-AXESS-4DLX is designed with TCP/IP network interface and its signal processed with special encryption and can be run offline. Anti-tampering function is also supported. -
Page 7: Chapter 2 Appearance
Chapter 2. Appearance 2.1 Component Description Access Controller Component Schematic Diagram Take VS-AXESS-4DLX as an example, the component schematic diagram is shown below. Figure 2-VS-AXESS-4DLX Component Schematic Diagram... - Page 8 Table 2-1 VS-AXESS-4DLX Component Description Component Description VS-AXESS-4DLX Alarm Relay Output Status (NC/NO) Network Data Indicator RS-485 Communication Indicator Network Status Indicator Door Relay Output Status (NC/NO) Choice Battery Charging Indicator Power Indicator Charging Completing Indicator Running Indicator Hardware Initialization and Normal Working Choice...
-
Page 9: Chapter 3 Terminal Connection
Chapter 3 Terminal Connection 3.1 Terminals Description Figure 3-1 VS-AXESS-4DLX Terminal Description... - Page 10 Table-3-1 VS-AXESS-4DLX Terminal Description VS-AXESS-4DLX Grounding Power for E- Lock +12V Power Supply of E-Lock Output Grounding Power for Card Reader +12V Power Supply of Card Reader Output Grounding Wiegand Head Read Data Input Data0 Wiegand Head Read Data Input Data1...
- Page 11 Arming Region Access Terminal 2 (Only for Linkage of Alarm Relay Output) Arming Region Access Terminal 3 (Only for Linkage of Alarm Relay Output) Grounding Arming Region Access Terminal 4 (Only for Linkage of Alarm Relay Output) E-Lock 1 Door 1 Door Relay Input (Dry Contact) E-Lock 2 Door 2 Door Relay Input (Dry Contact) E-Lock 3...
-
Page 12: Chapter 4 Card Reader Installation
RS485 card ID should be set as 1to 8. For example, the ID of door 1 is 1 and 2 standing for in and out respectively. Chapter 4 Card Reader Installation 4.1 External Terminal VS-AXESS-4DLX External Terminals Figure 4-1 VS-AXESS-4DLX External Terminals... -
Page 13: Card Reader Installation
4.2 Card Reader Installation 4.2.1 The Connection of Wiegand Card Reader Figure 4-2 Wiring diagram of Wiegand card reader Note: You must connect the OK/ERR/BZ, if using access controller to control the LED and buzzer of the Wiegand card reader. -
Page 14: Rs485 Card Reader Connection
4.2.2 RS485 Card Reader Connection Figure 4-3 Wiring diagram of RS485... -
Page 15: Installing E-Lock
4.3 Installing E-Lock 4.3.1 Installation of Cathode Lock Figure 4-4 Wiring diagram of cathode lock 4.3.2 Installation of Anode Lock Figure 4-5 Wiring diagram of anode lock... -
Page 16: Connecting The External Alarm Device
4.4 Connecting the External Alarm Device Figure 4-6 External Alarm Device Connection 4.5 Door Button Wiring Diagram Figure 4-7 Power Button Connection... -
Page 17: The Connection Of Magnetics Detection
4.6 The Connection of Magnetics Detection Figure 4-8 Magnetics Connection 4.7 Connecting Power Supply Figure 4-9 Power Supply Connection... -
Page 18: Arming Region Input Terminal
4.8 Arming Region Input Terminal 4.8.1 Connecting Normally Open Detector Figure 4-10 Normally Open Status 4.8.2 Connecting Normally Closed Detector Figure 4-14 Normally Closed Status... -
Page 19: Chapter 5 Settings
Chapter 5 Settings 5.1 Initializing the Hardware Steps: 1. The jumper cap jumps from Normal to Initial. 2. Disconnect the power and restart the access controller, the controller buzzer buzzes a long warning. 3. After the buzzer stops, jump the jumper cap back to Normal. 4. -
Page 20: Alarm Relay Output Status
Lock Relay Normally Closed Status Figure 5-3 Normally Closed Status 5.2.2 Alarm Relay Output Status Alarm Relay Output Normally Open Figure 5-4 Alarm Relay Output Normally Open Alarm Relay Output Normally Closed Figure 5-5 Normally Closed Status... - Page 21 Work Flow of Software For detailed information, please see the user manual of the client software. Refer to the following work flow: Figure 6-1 Software Client Work Flow...
-
Page 22: Chapter 6 Activating The Control Panel
Chapter 6 Activating the Control Panel Purpose: You are required to activate the control panel first before you can use the control panel. Activation via SADP, and Activation via client software are supported. 6.1 Activation via SADP Software SADP software is used for detecting the online device, activating the device, and resetting the password. - Page 23 STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
-
Page 24: Activation Via Client Software
6.2 Activation via Client Software The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the control panel. Steps: 1. - Page 25 4. Check the device status from the device list, and select an inactive device. 5. Click the Activate button to pop up the Activation interface. 6. Create a password and input the password in the password field, and confirm the password. Click OK button to start activation.
-
Page 26: Specification
8* RS485 Card Reader and 4* Wiegand Card Reader Alarm Input*4, Door Contact *4, Door Button*4, Case Input Port Input*8, Anti-Tamper*1 Output Port Door Relay * 4, Alarm Relay * 4 Working Temperature -20°C -- +65°C Working Humidity 10%--90% (noncondensing) Dimension 370mm(L)*345mm(w)*90mm(H) Table 6-1 VS-AXESS-4DLX Specification...
