Visionis VIS-3009 User Manual

Access control black outdoor ip66 weatherproof card reader standalone no software wiegand 26-37 bits 125khz em cards 1,000 users

Advertisement

Quick Links

Access Control Black Outdoor IP66 Weatherproof
Card Reader Standalone No Software Wiegand 26-37
Bits 125KHz EM Cards 1,000 Users
VIS-3009
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIS-3009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Visionis VIS-3009

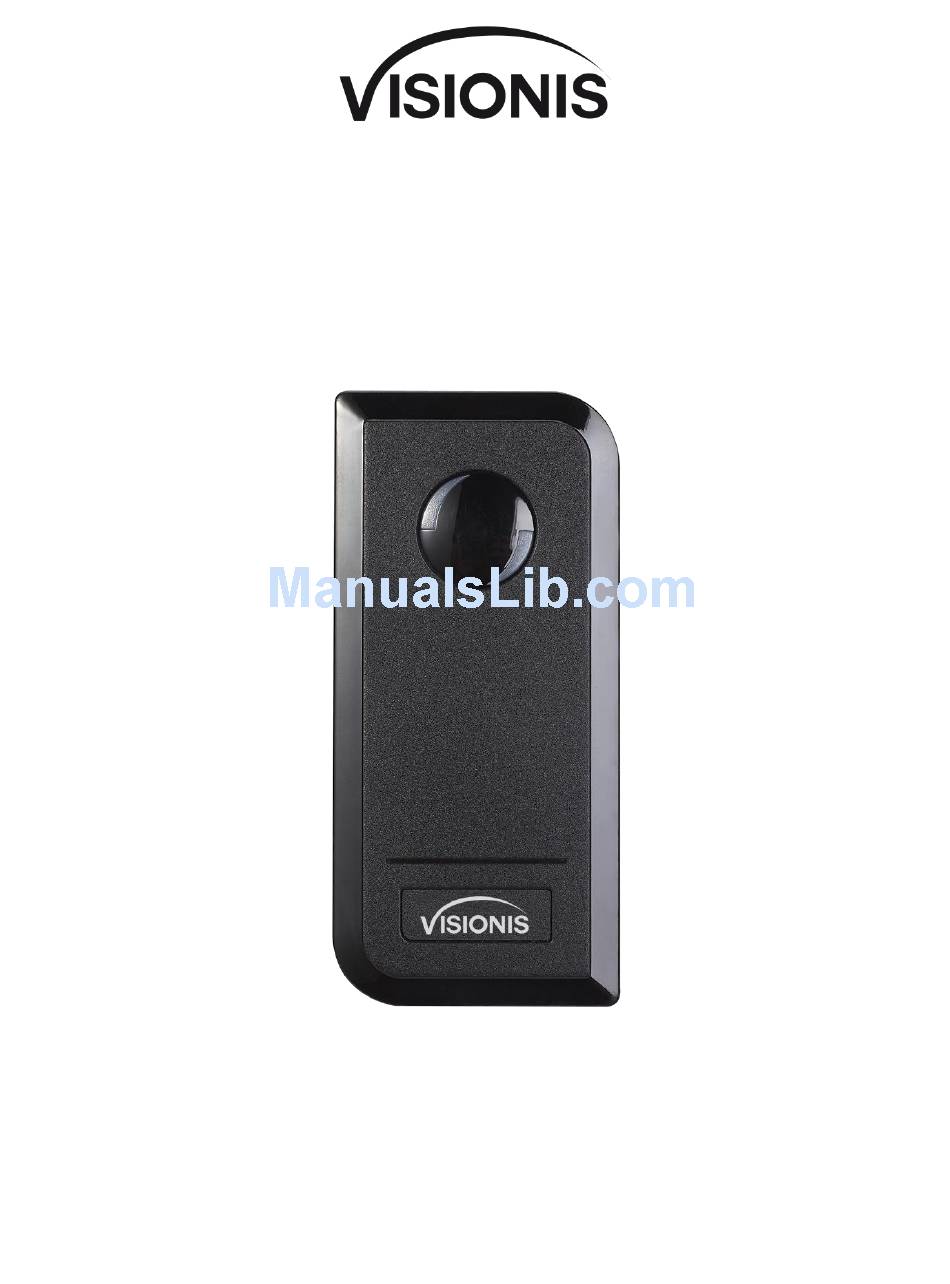

  • Page 1 Access Control Black Outdoor IP66 Weatherproof Card Reader Standalone No Software Wiegand 26-37 Bits 125KHz EM Cards 1,000 Users VIS-3009 User Manual...
  • Page 2: Specifications

    Atmel microcontroller assures maximum performance in any environment, and the low-power circuit makes its service life prolonged. The VIS-3009 supports 1,000 users (998 common users + 2 panic users), all user data can be downloaded and uploaded. It has extra features including block enrollment, interlocked, Wiegand 26~37 bits interface…etc.
  • Page 3: Carton Inventory

    Carton Inventory INSTALLATION Remove the back cover from the unit  Drill 2 holes (A,C) on the wall for the screws and one hole for the cable  Knock the supplied rubber bungs to the screw holes (A,C)  Fix the back cover firmly on the wall with 4 flat head screws ...
  • Page 4: Connection Diagram

    Wiring Wire Color Function Notes Basic Stand Alone Wiring 12-24V AC/ DC 12-24V AC/DC Regulated Power Input Black Negative Pole of DC Power Input Pink 12-24V AC 12-24V AC Regulated Power Input Blue Relay NO Normally Open Relay Output (install diode provided) Purple Relay Common Common Connection for Relay Output...
  • Page 5 AC Power Supply: Attention: Install a 1N4004 or equivalent diode is needed when use a common power supply, or the reader might be damaged. (1N4004 is included in the packing) Access Control Power Supply:...
  • Page 6: Basic Programming

    * (Master Code) # Add Card User 2. Add Card: Using Auto ID 1 (Read Card) # (Allows VIS-3009 to assign Card to next Repeat Step 2 for additional user cards available User ID number) 2. Add Card: Select Specific ID...
  • Page 7 (Allows manager to add up to 998 cards to #(The first card number) # the Reader in a single step.) Takes 2 Cards’ number must be consecutive; minutes to program. Card quantity = number of card to be enrolled. 3. Exit Add Panic Users Programming Step Keystroke Combination...
  • Page 8: Users Operation

    Set Strike-out Alarm The strike-our alarm will engage after 10 failed card attempts. Factory is OFF. The strike-our alarm ca be set to deny access for 10 minutes after engaging or it can be set disengage only after entering a valid card or Master code.
  • Page 9 ADVANCE PROGRAMMING Set Device Operation Mode: Programming Step Keystroke Combination 1. Enter Program Mode * (Master Code) # 2. Controller mode 7 2 # (Factory default) 2. Wiegand Reader mode 7 3 # 3. Exit Set Wiegand Output Options: Programming Step Keystroke Combination 1.
  • Page 10: Wiegand Mode

    VIS-3009 supports a Wiegand 26~37 bit input so an external Wiegand device with a 26~37 bit output can be connected to the Wiegand input terminals on the VIS-3009. Either an ID card reader (125 KHz) or an IC card reader (13.56MHz) can be connected to the VIS-3009. Cards are required to be added at the external reader,...
  • Page 11 APPLICATION How to upload & download user data? Precondition: ● The related devices must support upload & download function ● The connected device must be set to factory default setting and without any user information. ● Make connection for D0 &D0, D1 & D1 of device A, B, and powered at the same time ●...
  • Page 12 VIS-3009 - Simplified Instruction Function description Choose from the relevant functions below and input Enter the programming mode *- 123456 - # then you can do the programming (123456 is the default factory master code) 0 – new code - # - repeat the new code - #...
