Summary of Contents for Visionis VIS-3002

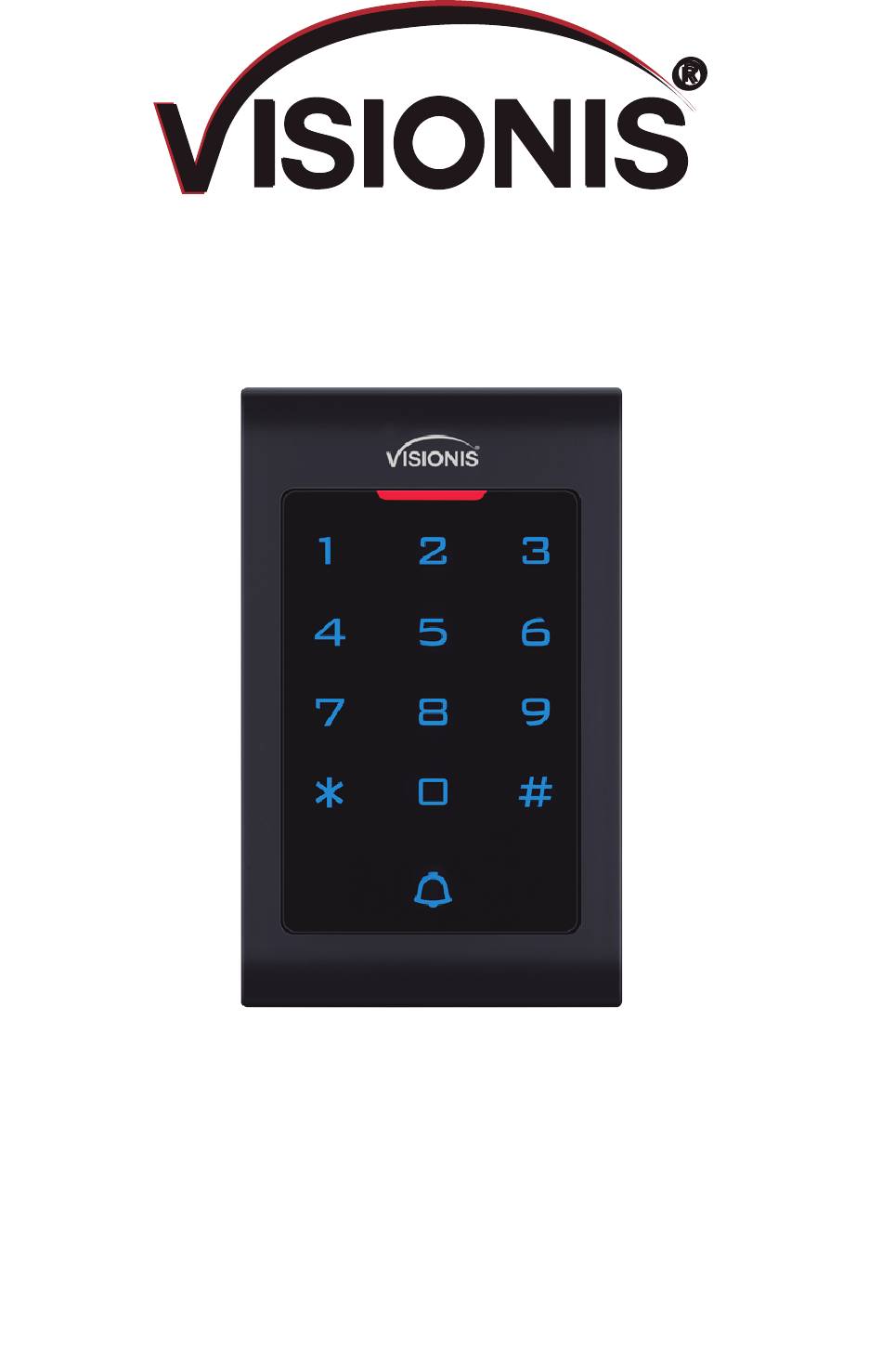

- Page 1 Standalone Access Control for Single Door User Manual VIS-3002 www.visionistech.com...
-
Page 2: Specification

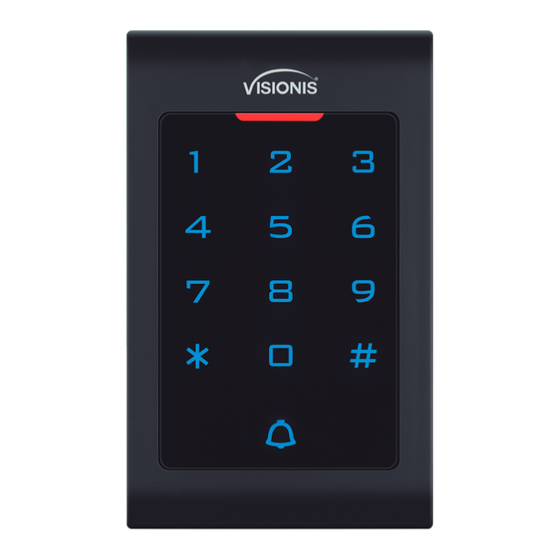

1. Description The device is a standalone as well as a Wiegand access control keypad and proximity card reader which supports EM, HID,a n d Mif ar e ca r d t y p e s , i t ’ s one o f th e most advanced standalone access control .Its build-in USA Atmel microprocessor,with strong anti-interference ability, high security and reliability, powerful function and convenient operation.It is widely used in high-end buildings,... -
Page 3: Sound And Light Indication
5. Wiring Marks Color Description BELL_A Pink Doorbell button BELL_B Pink Doorbell button Green Wiegand output D0 White Wiegand output D1 +12V Positive pole of power supply Black Negative pole of power supply OPEN Yellow Exit button D_IN Brown Door contact ALARM Gray Alarm Output... -
Page 4: Quick Programming Guide
7. Quick Programming Guide 7.1 Administrator Setting Stand Master Menu Setting Remarks Functions Code Orange Flash New master code# Factory Change the master Repeat new master default: code code # 999999 Read Manager Add Set Manager Add Card Card Master code# Read Manager Set Manager Delete... - Page 5 7.3 User Setting Stand Master Menu Setting Remarks Functions Code Orange Flash Read card # ID number # read Users can be card# To add card users added continuously without exiting Card number # programming mode ID number # card number # ID number # To add PIN users...
-
Page 6: Administrator Setting
7.4 User Optional Setting Stand Master Menu Setting Remarks Functions Code Orange Flash Buzzer will be in silence except enter the programming mode Buzzer will sound when press Default 1 the key Master Disable keypad backlight code# (Code Enable keypad backlight length: Default 2 Automatic mode... - Page 7 8.2 Set Manager Card Set manager add card Press 01 read manager add card Set manager delete card Press 02 read manager delete card Note: When add the new manager card, the new one will automatically cover the old card, only one manager card for one device 8.3 Set Anti-duress card Set Anti-duress card Press 03 read anti-duress card...
- Page 8 8.7.4 Use ID number and card number to add user Press 11 ID number # 8-digits card number # ... ID number # 8-digits card number # ... # Note: 1.ID number is 1~4 digits, the range is 1~2000, fox example 1,01,001,0001, all these mean ID number 1.
- Page 9 Every time a valid card/tag read or PIN input, the relay will operate, for the pre-set relay pulse time. (Factory default setting) Relay setting-Toggle mode Press 15 1 # Every time a valid card/tag read or PIN input, the relay changes state, which will not turn back until read card/tag or input PIN again 8.12 Set opening door by multi cards Press 16 card quantity #...
-
Page 10: User Operation
8.18.2 Dead mode Press 35 1 # If read invalid card or input wrong PIN 10 times in 10 minutes, system will be dead for 10 mins 8.18.3 Alarm mode Press 35 2 # if read invalid card or input wrong PIN 10 times in 10 minutes, external alarm and built-in buzzer will work 8.19 User optional setting 8.19.1 Setting buzzer silence in non -setting state... -
Page 11: Alarm Function
9.3 Entry by card and PIN Present card, then press PIN (4 to 6 digits), #, lock will be unlocked. 9.4 Entry by card or PIN mode Present card, lock will be unlocked.Or Press PIN (4 to 6 digits), #, lock will be unlocked. 9.5 Relay mode Relay setting -pulse mode Every time a valid card/tag read or PIN input, the relay will operate, for the pre-set relay... -
Page 12: Connection Diagram
11. Connection Diagram 11.1 NO/NC Locks BELL_A P ink Normally Open BELL_B P ink 1 2 V +12V Door Strike BELL_A P ink Normally closed P ink BELL_B 1 2 V maglocks & electric bolt locks +12V... - Page 13 11.2 Connection with Accessories: Doorbell and Exit button Keypad/Reader Power Supply (COM) PURPLE WIRE FROM KEYPAD/READER Electromagnetic Lock PINK WIRE (NC) (BELL B) ORANGE WIRE FROM KEYPAD/ FROM KEYPAD/READER READER Exit Button (OPEN) YELLOW WIRE FROM KEYPAD/READER 11.3 Connection with Accessories: Doorbell, Exit button, and Wireless Receiver PINK WIRE FROM GREEN WIRE...
- Page 14 11.4 Connection with Accessories: Doorbell, Exit button, and PIR PINK WIRE FROM GREEN WIRE FROM KEYPAD/READER (BELL B) DOOR BELL PINK WIRE FROM KEYPAD/READER (BELL A) YELLOW WIRE ORANGE WIRE Keypad/Reader Exit YELLOW Button WIRE Electromagnetic Lock Power Supply Door Bell Power Supply 11.5 Connection with Access Control Panel BELL_A...
-
Page 15: Reset To Factory Default
12. Reset to Factory Default a. Power off b. Press and hold # key, then power on c. Release # key until hearing short beeps twice. When hearing long beep once, the device is in normal working state and reset to factory default setting, but the user data will not be deleted 13.
