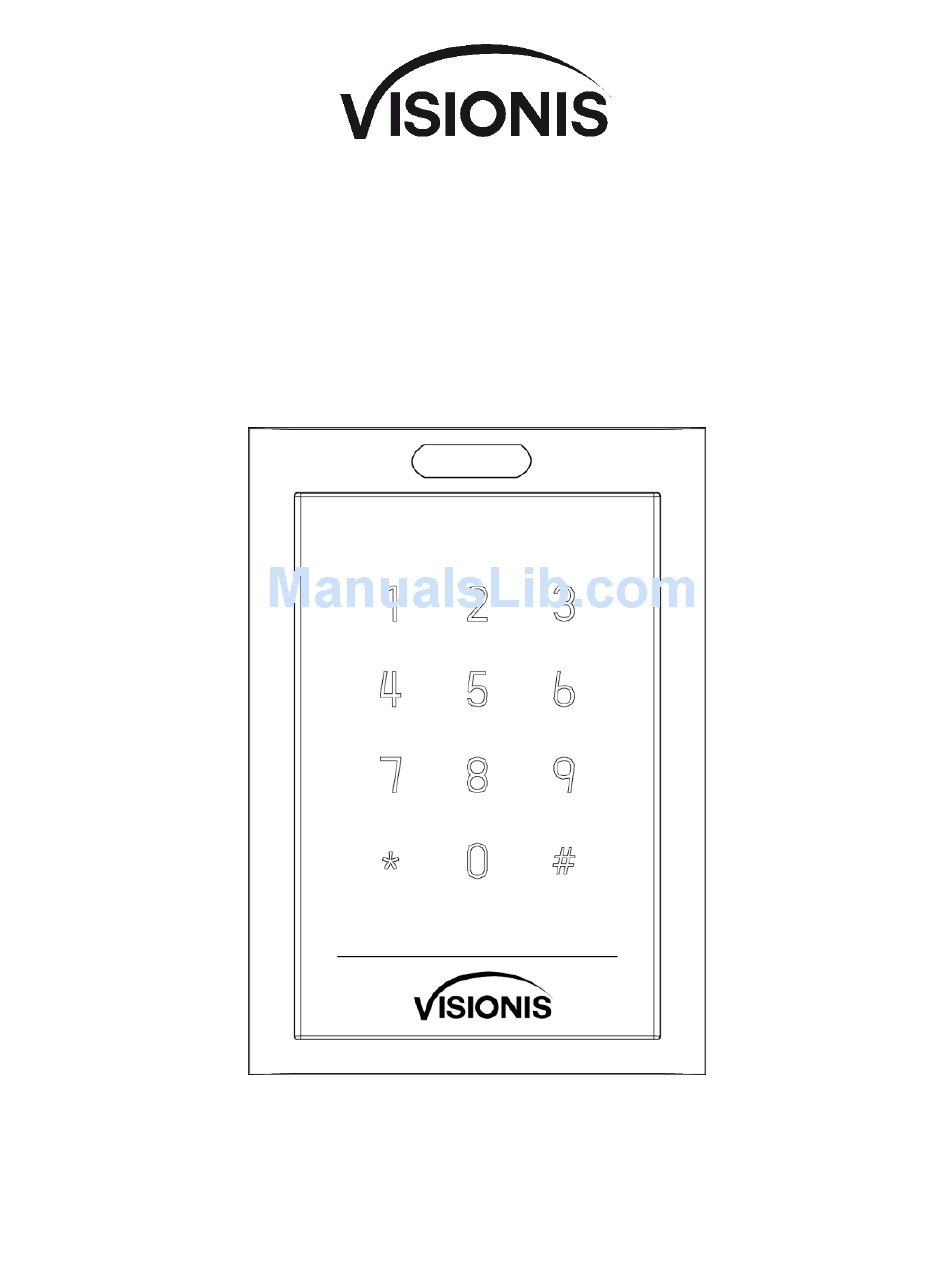

- Page 1 Access Control Black with Clear Border Card Reader and Keypad / Reader Only Compatible with Wiegand 26 and 34 Bit VIS-3103 Installation Manual...
- Page 2 (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Visionis. Unless otherwise stipulated, Visionis does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
- Page 3 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and -if applicable -the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
- Page 4 Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: Ensure unit is installed in a well-ventilated, dust-free environment. Keep all liquids away from the device. Ensure environmental conditions meet factory specifications. ...
-
Page 5: Table Of Contents
Content CHAPTER 1 PREVENTIVE AND CAUTIONARY TIPS CHAPTER 2 INTRODUCTION FRONT VIEW REAR VIEW SIDE VIEW CHAPTER 3 INSTALLATION INTRODUCTION FOR DIPSWITCH DEFINITION OF CABLE WIRING CABLES INSTALLING CARD READER CHAPTER 4 SOUND PROMPT AND INDICATOR... -
Page 6: Chapter 2 Introduction
Chapter 2. Introduction VIS-3103 series card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via either RS-485 protocol or Wiegand protocol. And a build-in tamper-proof module helps to protect card reader from malicious damage. As to the physical appearance, the PC+ABS material makes water proof and dust proof possible in poor environment. -
Page 7: Side View
DIP Switch 2.3 Side View The side view of card reader is shown below: Figure 2-3 VIS-3103 Side View Chapter 3. Installation 3.1 Introduction for DIP Switch The DIP switch module is shown below. The No. of DIP switch from left to right is 1 ~ 8. -
Page 8: Definition Of Cable
Table 3-1 Description of DIP Switch Icon Description Represent1 in binary mode Represent 0 in binary mode For example, binary value of the following status is: 00001100. Figure 3-2 DIP Switch Module Table 3-2 Description of DIP Switch Description DIP Switch Status 1: 1 1 ~ 4 Address of RS-485... -
Page 9: Wiring Cables
3.3 Wiring Cables Purpose: Wire the cables between controller and card reader, thus to establish the communication between them. Steps for RS-485 communication mode: 1. Set the DIP switch of No. 6 as 0. 2. Set the DIP switch of No. 1 ~5 for RS-485 address and reading card mode. For details, please refer to 3.2 Introduction for DIP Switch. -
Page 10: Installing Card Reader
Figure 3-4 Wiring for RS-485 Communication Mode 3.4 Installing Card Reader Before you start: Set the DIP switch. For details, refer to 3.2 Introduction for DIP Switch. Steps: 1. Fix the plate on the wall or other place. 2. Connect the cables between controller and card reader. For details, refer to 3.4 Wiring Cables. -
Page 11: Chapter 4 Sound Prompt And Indicator
Chapter 4. Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn blue and blink for 1 time.Thenit will turn red and blink for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed.
