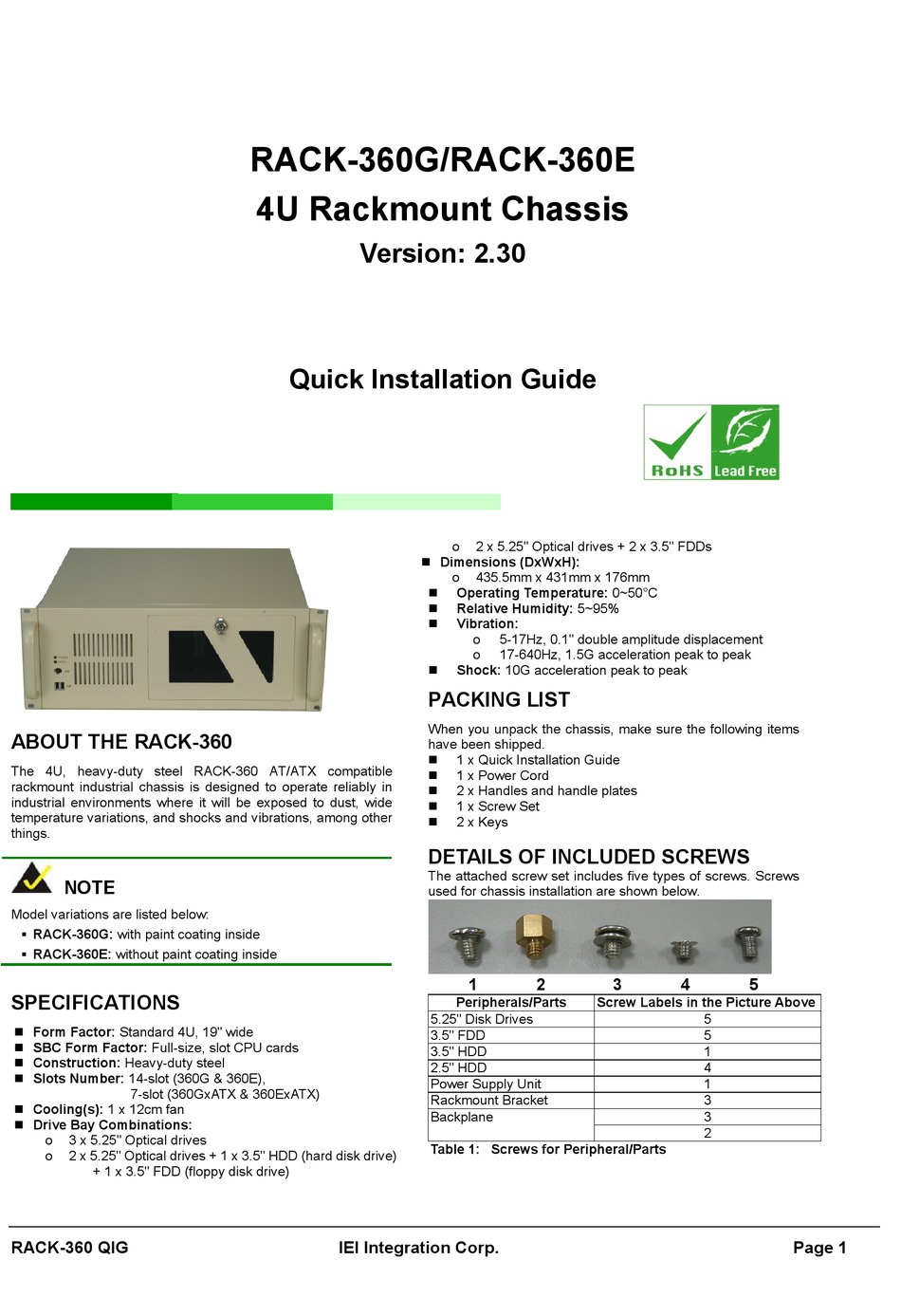

IEI Technology RACK-360 Quick Installation Manual

ABOUT THE RACK-360
The 4U, heavy-duty steel RACK-360 AT/ATX compatible
rackmount industrial chassis is designed to operate reliably in
industrial environments where it will be exposed to dust, wide
temperature variations, and shocks and vibrations, among other
things.
NOTE
Model variations are listed below:
 RACK-360G: with paint coating inside
 RACK-360E: without paint coating inside
SPECIFICATIONS
 Form Factor: Standard 4U, 19" wide
 SBC Form Factor: Full-size, slot CPU cards
 Construction: Heavy-duty steel
 Slots Number: 14-slot (360G & 360E),
7-slot (360GxATX & 360ExATX)
 Cooling(s): 1 x 12cm fan
 Drive Bay Combinations:
o 3 x 5.25" Optical drives
o 2 x 5.25" Optical drives + 1 x 3.5" HDD (hard disk drive)
+ 1 x 3.5" FDD (floppy disk drive)
RACK-360 QIG
RACK-360G/RACK-360E
4U Rackmount Chassis
Version: 2.30
Quick Installation Guide
IEI Integration Corp.
o 2 x 5.25" Optical drives + 2 x 3.5" FDDs
 Dimensions (DxWxH):
o 435.5mm x 431mm x 176mm
Operating Temperature: 0~50°C

Relative Humidity: 5~95%

Vibration:

o 5-17Hz, 0.1" double amplitude displacement
o 17-640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak

PACKING LIST
When you unpack the chassis, make sure the following items
have been shipped.
1 x Quick Installation Guide

1 x Power Cord

2 x Handles and handle plates

1 x Screw Set

2 x Keys

DETAILS OF INCLUDED SCREWS
The attached screw set includes five types of screws. Screws
used for chassis installation are shown below.
1 2
Peripherals/Parts
5.25" Disk Drives
3.5" FDD
3.5" HDD
2.5" HDD
Power Supply Unit
Rackmount Bracket
Backplane
Table 1: Screws for Peripheral/Parts
3 4 5
Screw Labels in the Picture Above
5
5
1
4
1
3
3
2
