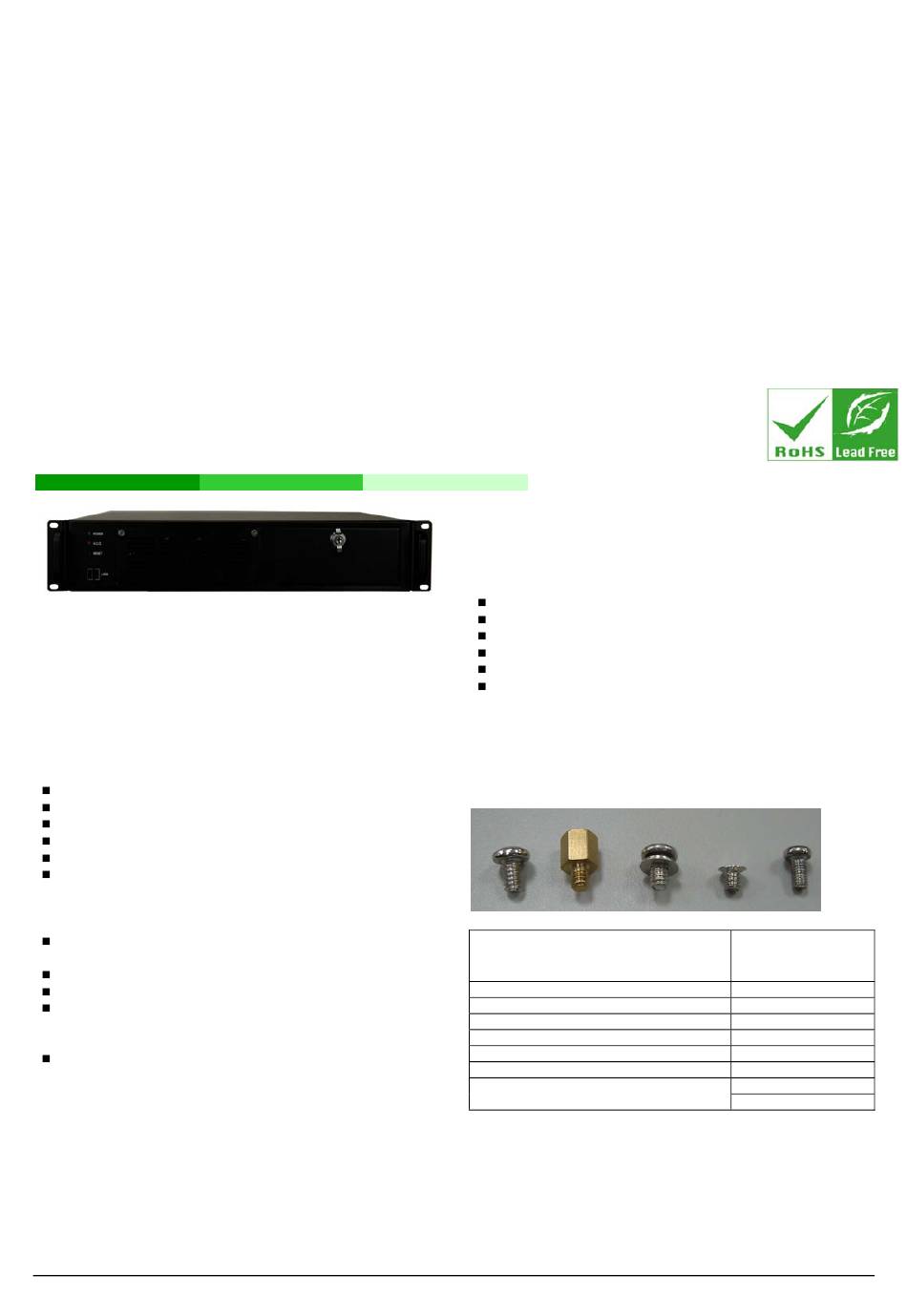

ABOUT THE RACK-220G
The 2U, metal RACK-220G AT/ATX compatible rackmount industrial
chassis is designed to operate reliably in industrial environments
where it will be exposed to dust, wide temperature variations, and
shocks and vibrations, among other things.
SPECIFICATONS
Form Factor: Standard 2U, 19" wide
SBC Form Factor: Full-size, slot CPU cards
Construction: Metal
Slots Number: 6-slot
Cooling: 2 x 8cm fans
Drive Bays:
o
1 x 5.25" Front accessible optical drive bay
o
1 x 3.5" Front accessible FDD (floppy disk drive) bay
o
1 x 3.5" Internal HDD (hard disk drive) bay
Dimensions (DxWxH):
o
487.5mm x 431mm x 88mm
Operating Temperature: 0~40°C
Relative Humidity: 5~95%
Vibration:
o
5 to 17Hz, 0.1" double amplitude displacement
o
17 to 640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak
RACK-220G QIG
RACK-220G
2U Rackmount Chassis
Version: 1.0
Quick Installation Guide
IEI Technology Corp.
PACKING LIST
When you unpack the chassis, make sure the following items have
been shipped.
1 x Quick Installation Guide
1 x Power cord
2 x Handles and handle plates
1 x Screw set
1 x PCI/ISA shock absorber
2 x Keys
DETAILS OF INCLUDED SCREWS
The attached screw set includes five types of screws. Screws used
for chassis installation are shown below.
1
2
Peripherals/Parts
5.25" Disk Drives
3.5" FDD
3.5" HDD
2.5" HDD
Power Supply Unit
Rackmount Bracket
Backplane
Table 1: Screws for Peripheral/Parts
3
4
5
Screw Label (refer to
the picture above)
5
5
1
4
1
3
3
2
Page 1
Advertisement
Table of Contents
Related Manuals for IEI Technology RACK-220G
Summary of Contents for IEI Technology RACK-220G
- Page 1 1 x Power cord ABOUT THE RACK-220G 2 x Handles and handle plates 1 x Screw set The 2U, metal RACK-220G AT/ATX compatible rackmount industrial 1 x PCI/ISA shock absorber chassis is designed to operate reliably in industrial environments 2 x Keys where it will be exposed to dust, wide temperature variations, and shocks and vibrations, among other things.
-
Page 2: Dimension Drawing
DIMENSION DRAWING The dimensions of RACK-220G are shown below. Figure 1: Dimension Drawing (measurement units: millimeter) RACK-220G QIG IEI Technology Corp. Page 2... -
Page 3: Installation Steps
Step 1: Correctly position the PSU at the rear of the chassis The RACK-220G is shipped in a plastic bag that is placed inside a cardboard box. The items are also shipped with the chassis. When making sure the power switch and the cable socket both you unpack the chassis you must face outwards. -
Page 4: Step 4: Backplane Installation
0.8A ACE-841AP-S-RS 400W 0.5A ACE-850AP-RS 500W 0.3A 0.8A Table 2: Compatible IEI PSUs. STEP 4: BACKPLANE INSTALLATION The IEI backplanes listed below are compatible with the RACK-220G chassis. Model No. SBC Type PCI-5SDA-RS-R30 PICMG 1.0 L2+R2 AT/ATX PCI-5SD5-RS-R30 PICMG 1.0... -
Page 5: Step 8: Disk Drives Installation
STEP 6: PCI/ISA EXPANSION CARD INSTALLATION Figure 11: Four Internal 3.5＂HDD Bracket Retention Screws The RACK-220G supports up to five PCI/ISA expansion cards. If you wish to install a PCI expansion card or an ISA expansion card please Step 2: Correctly position the HDD into the bracket. - Page 6 NSTALLATION IN THE RACKET Step 8.3: Optical Drive Installation in the Main The main drive bracket of RACK-220G chassis contains a front Bracket accessible FDD drive bay. To install a FDD in the 3.5” front accessible drive bay, please follow the steps below:...
-
Page 7: Step 11: Cover Reinstallation
STEP 12: FRONT HANDLE INSTALLATION Power LED cable Two handles are shipped with the RACK-220G chassis. The handles are installed on the sides, at the front of the chassis. Each handle is secured to the chassis with four retention screws. To install the... -
Page 8: Cabinet Installation
Reinstall the fan filter cover and fasten the two previously loosened thumbscrews.Step 0: There are two 8cm cooling fans secured to the fan bracket inside the RACK-220G chassis. To replace the fan, please follow the steps ABINET NSTALLATION below. Supporting rails, rack trays, or slide rails can be implemented using Step 1: Remove the top cover.
