ABOUT THE RACK-220GATX
The 2U, metal RACK-220GATX rackmount industrial chassis
supports microATX motherboards. The RACK-220GATX is designed
to operate reliably in industrial environments where it will be exposed
to dust, wide temperature variations, and shocks and vibrations,
among other things.
SPECIFICATONS
Form Factor: Standard 2U, 19" wide
SBC Form Factor: microATX motherboards
Construction: Metal
Expansion Slots: Four
Cooling: 2 x 8cm fans
Drive Bays:
o
1 x 5.25" Front accessible optical drive bay
o
1 x 3.5" Front accessible FDD (floppy disk drive) bay
o
1 x 3.5" Internal HDD (hard disk drive) bay
Dimensions (DxWxH):
o
487.5mm x 431.0mm x 88.0mm
Operating Temperature: 0°C ~50°C
Relative Humidity: 10%~95%
Vibration:
o
5Hz ~ 17Hz, 0.1" double amplitude displacement
o
17Hz ~ 640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak
Weight (Net/Gross): 8.2kg/12.4kg

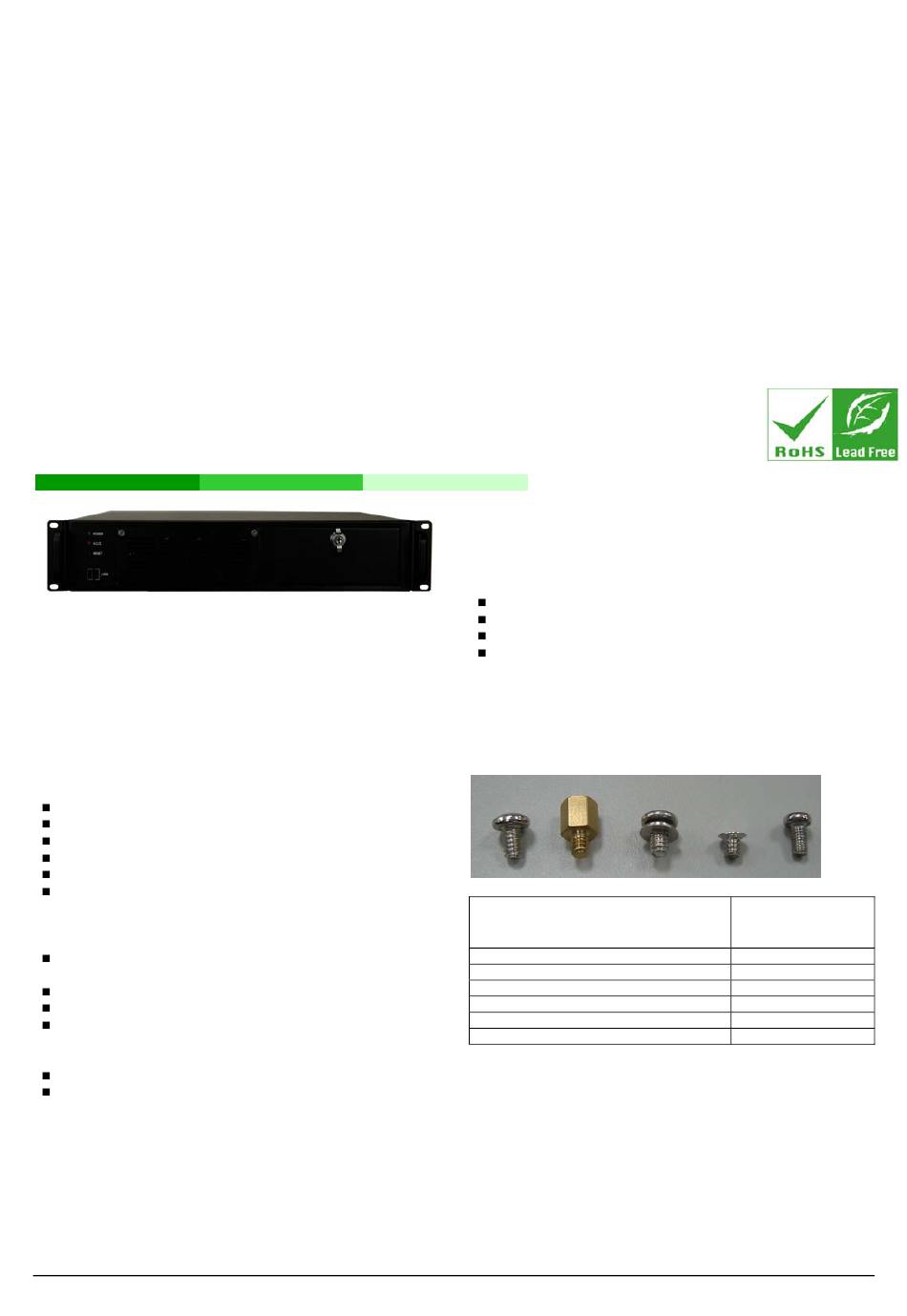

RACK-220GATX QIG
RACK-220GATX
2U Rackmount Chassis
Version: 1.0
Quick Installation Guide
IEI Technology Corp.
PACKING LIST
When unpacking the chassis, make sure the following items have
been shipped.
1 x Quick Installation Guide
1 x Power cord
2 x Handles
1 x Screw set
DETAILS OF INCLUDED SCREWS
The attached screw set includes five types of screws. Screws used
for chassis installation are shown below.
1
2
Peripherals/Parts
5.25" Disk Drives
3.5" FDD
3.5" HDD
2.5" HDD
Power Supply Unit
Rackmount Bracket
Table 1: Screws for Peripheral/Parts
3
4
5
Screw Label (refer to
the picture above)
5
5
1
4
1
3
Page 1
Advertisement
Table of Contents
Related Manuals for IEI Technology RACK-220GATX
Summary of Contents for IEI Technology RACK-220GATX
- Page 1 1 x Power cord ABOUT THE RACK-220GATX 2 x Handles 1 x Screw set The 2U, metal RACK-220GATX rackmount industrial chassis supports microATX motherboards. The RACK-220GATX is designed DETAILS OF INCLUDED SCREWS to operate reliably in industrial environments where it will be exposed to dust, wide temperature variations, and shocks and vibrations, The attached screw set includes five types of screws.
-
Page 2: Dimension Drawing
DIMENSION DRAWING The dimensions of RACK-220GATX are shown below. Figure 1: Dimension Drawing (measurement units: millimeter) RACK-220GATX QIG IEI Technology Corp. Page 2... -
Page 3: Installation Steps
Step 1: Correctly position the PSU at the rear of the chassis The RACK-220GATX is shipped in a plastic bag that is placed inside a cardboard box. Accessory items are also shipped with the chassis. making sure the power switch and the cable socket both When unpacking the chassis please do the following: face outwards. -
Page 4: Step 5: Motherboard Installation
Then, gently push the I/O INSTALLATION shield into the space. The I/O shield should be securely clipped into the preformed space. The RACK-220GATX supports up to four PCI/PCIe expansion cards. Figure 7: Motherboard I/O Shield Installed Figure 9: PCI/PCIe Expansion Slots Step 4: Next, place the motherboard into the chassis. -
Page 5: Step 8: Disk Drives Installation
8.2: FDD I NSTALLATION IN THE RACKET The main drive bracket of the RACK-220GATX chassis contains a front accessible FDD drive bay. To install a FDD in the 3.5” front accessible drive bay, please follow the steps below: Step 1: Remove the main drive bracket by removing the four retention screws that connect it to the chassis. - Page 6 Step 8.3: Optical Drive Installation in the Main Bracket The main drive bracket of RACK-220GATX chassis contains a front accessible 5.25” optical drive bay. To install an optical drive in the 5.25” front accessible drive bay, please follow the steps...
-
Page 7: Step 11: Cover Reinstallation
Power LED cable STEP 12: FRONT HANDLE INSTALLATION Two handles are shipped with the RACK-220GATX chassis. The handles are installed on the sides, at the front of the chassis. Each Reset Switch cable handle is secured to the chassis with four retention screws. To... -
Page 8: Fan Filter Replacement
RACK-220GATX QIG IEI Technology Corp. Page 8...
