ABOUT THE PAC-400AI
The 5-slot, heavy-duty steel PAC-400AI compact wall-mount
industrial chassis is designed to operate reliably in industrial
environments where it will be exposed to dust, wide temperature
variations, and shocks and vibrations, among other things.
SPECIFICATIONS
Form Factor: 5-slot compact chassis
SBC Form Factor: Half-size CPU cards
Construction: Metal
Slots Number: 5-slot
Cooling: 1 x 8cm
Drive Bay: 1 x 3.5" HDD
Dimensions (DxWxH):
o
269mm x 140mm x 230.5mm
Operating Temperature: 0~40°C
Relative Humidity: 5~95%
Vibration:
o
5 to 17Hz, 0.1" double amplitude displacement
o
17 to 640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak

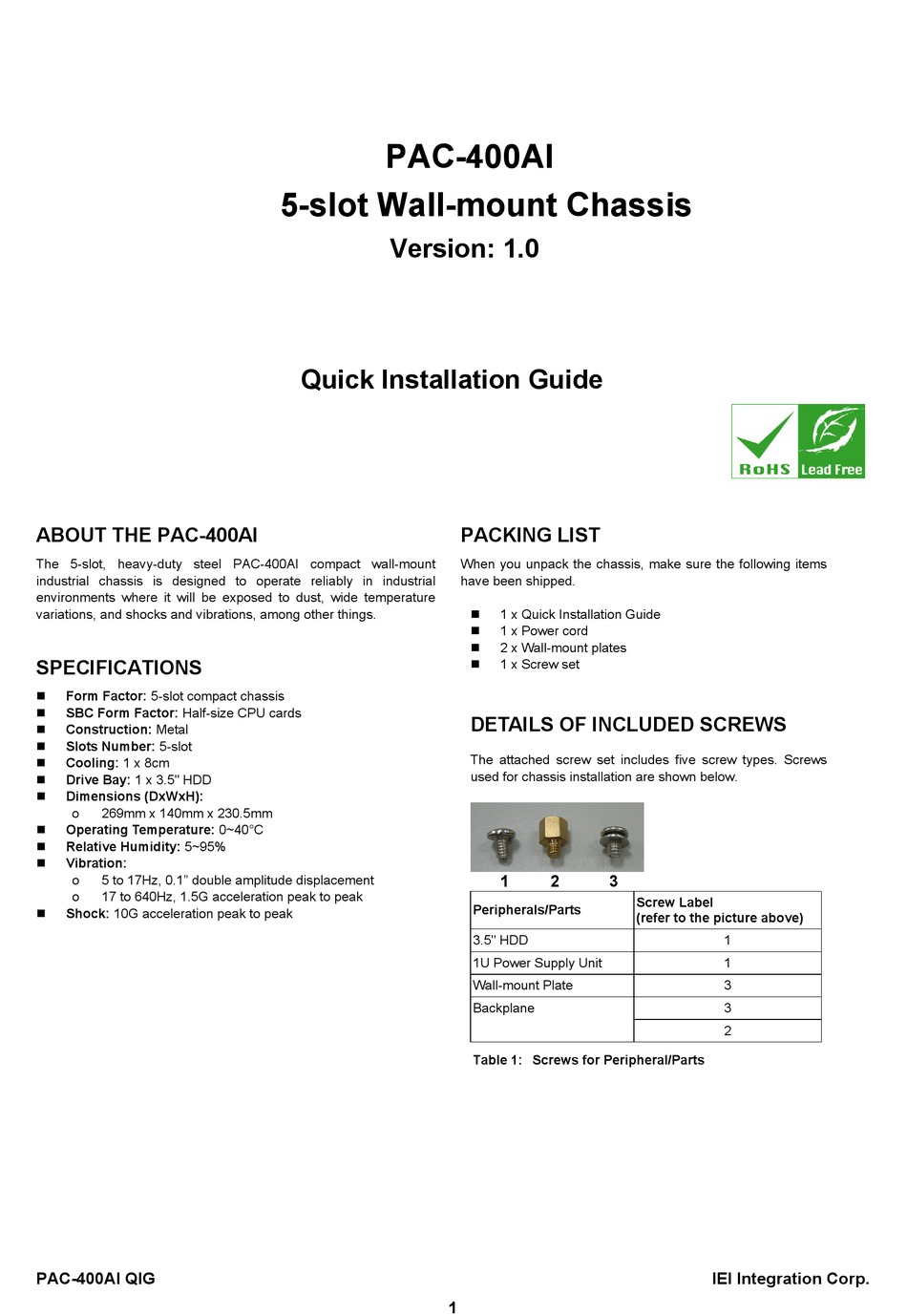

PAC-400AI QIG
PAC-400AI
5-slot Wall-mount Chassis
Version: 1.0
Quick Installation Guide
1
PACKING LIST
When you unpack the chassis, make sure the following items
have been shipped.
1 x Quick Installation Guide
1 x Power cord
2 x Wall-mount plates
1 x Screw set
DETAILS OF INCLUDED SCREWS
The attached screw set includes five screw types. Screws
used for chassis installation are shown below.
1
2
3
Peripherals/Parts
3.5" HDD
1U Power Supply Unit
Wall-mount Plate
Backplane
Table 1: Screws for Peripheral/Parts
Screw Label
(refer to the picture above)
1
1
3
3
2
IEI Integration Corp.
Advertisement
Table of Contents
Related Manuals for IEI Technology PAC-400AI
Summary of Contents for IEI Technology PAC-400AI
- Page 1 Version: 1.0 Quick Installation Guide ABOUT THE PAC-400AI PACKING LIST The 5-slot, heavy-duty steel PAC-400AI compact wall-mount When you unpack the chassis, make sure the following items industrial chassis is designed to operate reliably in industrial have been shipped. environments where it will be exposed to dust, wide temperature variations, and shocks and vibrations, among other things.
-
Page 2: Dimension Drawing
DIMENSION DRAWING The dimensions of the PAC-400AI are shown below. Figure 1: Dimension Drawing (measurement units: millimeter) PAC-400AI QIG IEI Integration Corp. -
Page 3: Installation Steps
The installation steps outlined above are described in detail below. Please refer to the relevant section. STEP 1: UNPACK The PAC-400AI is shipped in a plastic bag that is placed inside a cardboard box. The items are also shipped with the chassis. When you unpack the chassis you must:... -
Page 4: Step 4: Hdd Installation
STEP 4: HDD INSTALLATION Step 3: Reinstall the 3.5" drive bracket and reinsert the four The PAC-400AI chassis can support one 3.5" HDD in the lower previously removed retention screws. compartment. To install a 3.5" HDD, please follow the steps below: Step 4: Connect the 3.5"... -
Page 5: Step 6: Backplane Installation
Connect the power cable to the backplane. STEP 6: BACKPLANE INSTALLATION STEP 7: CABLING The compatible IEI backplanes are listed below: The PAC-400AI has LEDs, buttons and ports on the front ISA/ panel and a power switch at the rear panel: Model No. -
Page 6: Step 8: Cpu Card Installation
Remove the slot cover at the back of the chassis. To do this, remove the slot cover retention screw at the top of the slot cover. Two wall-mount plates are shipped with the PAC-400AI chassis. The wall-mount plates are installed on the sides, at the bottom of the Step 3: Slide the half-size CPU card into the socket on the chassis. -
Page 7: Chassis Maintenance
Reinstall the fan filter bracket and fasten the two fan filter before you replace a fan. bracket thumbscrews. There is one 8 cm cooling fan inside the PAC-400AI chassis. To replace a fan, please follow the steps below: Step 1: Loosen the two fan filter bracket thumbscrews.
