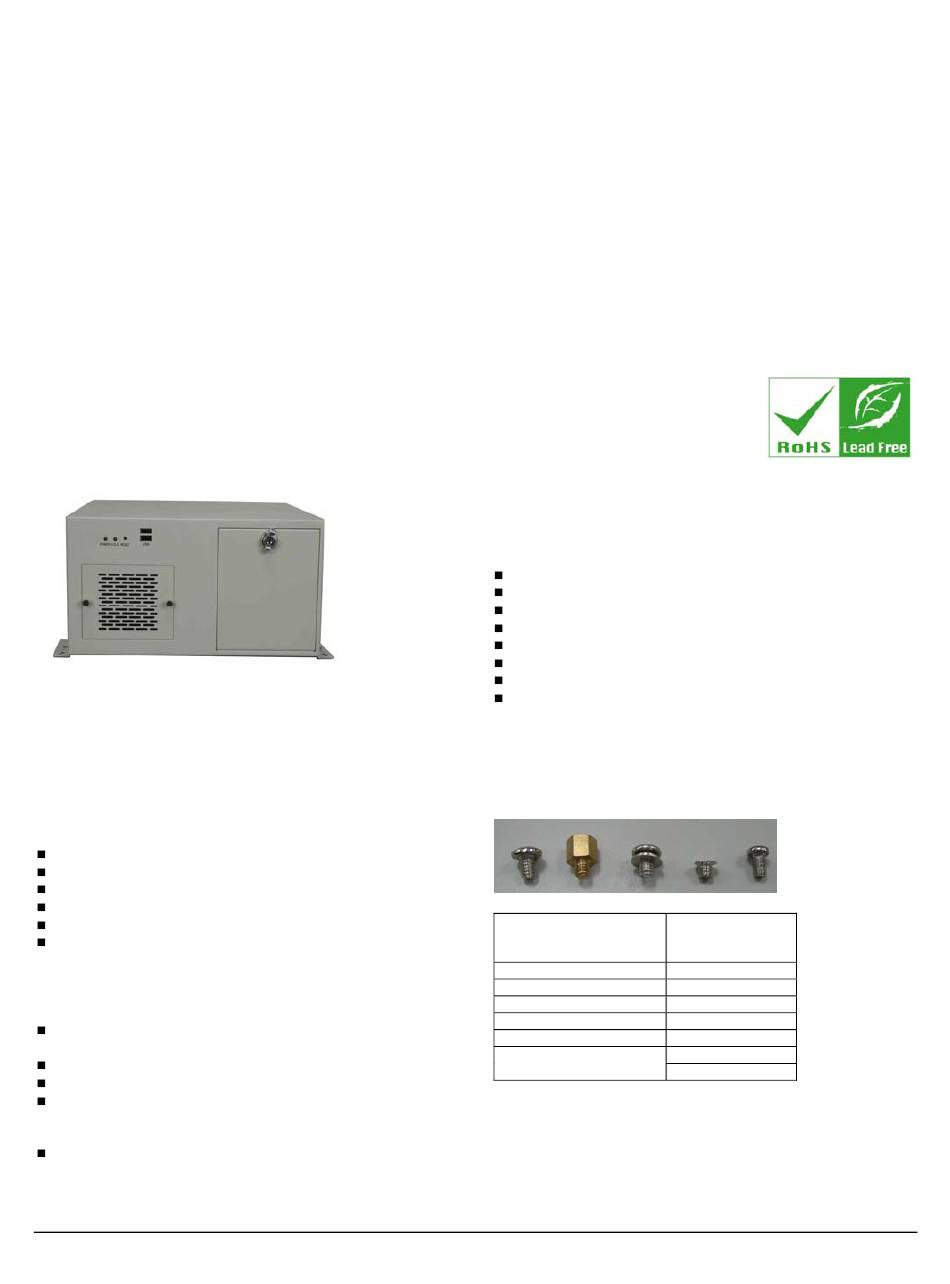

IEI Technology PAC-125G Quick Installation Manual

ABOUT THE PAC-125G
The 10-slot, heavy-duty steel PAC-125G compact wall-mount
industrial chassis is designed to operate reliably in industrial
environments where it will be exposed to dust, wide temperature
variations, and shocks and vibrations, among other things.
SPECIFICATIONS
Form Factor: 10-slot compact chassis
SBC Form Factor: Full-size, slot CPU cards
Construction: Metal
Slots Number: 10-slot
Cooling: 1 x 8cm fan
Drive Bays:
o 2 x 5.25" Optical drive bays
o 1 x 3.5" Front accessible FDD (floppy disk drive) or
HDD (hard disk drive) bay
o 1 x 3.5" Internal HDD bay
Dimensions (DxWxH):
o 420mm x 321mm x 176mm
Operating Temperature: 0~40°C
Relative Humidity: 5~95%
Vibration:
o 5 to 17Hz, 0.1" double amplitude displacement
o 17 to 640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration peak to peak
PAC-125G QIG
PAC-125G
10-slot Wall-mount Chassis
Version: 2.2
Quick Installation Guide
IEI Technology Corp.
PACKING LIST
When you unpack the chassis, make sure the following items
have been shipped.
1 x Quick Installation Guide
1 x Power cord
2 x Wall-mount plates
2 x Long shock absorbers
4 x Short shock absorbers
2 x Clip nuts
1 x Screw set
2 x Keys
DETAILS OF INCLUDED SCREWS
The attached screw set includes five screw types. Screws
used for chassis installation are shown below.
1 2 3
Screw Label (refer
Peripherals/Parts to the picture
above)
5.25" Optical Drives
3.5" FDD
3.5" HDD
Power Supply Unit
Wall-mount Bracket
Backplane
Table 1: Screws for Peripheral/Parts
4 5
4
5
1
1
3
3
2
Page 1
