Pulsar PSD15040 Manual

•
power output 4A/15VDC
•
universal AC input voltage range 90÷264V
•
high efficiency 87%
•
LED optical signalisation
•
standby power <0,3W

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply cameras that require stabilised voltage of 15 V DC.
The unit has a cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family, the
power supply unit can feed more equipments (max. 4 or 8). The power supply unit is protected against short-circuit,
overload and overvoltage.

1.2. Specifications.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Optical signalisation
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature

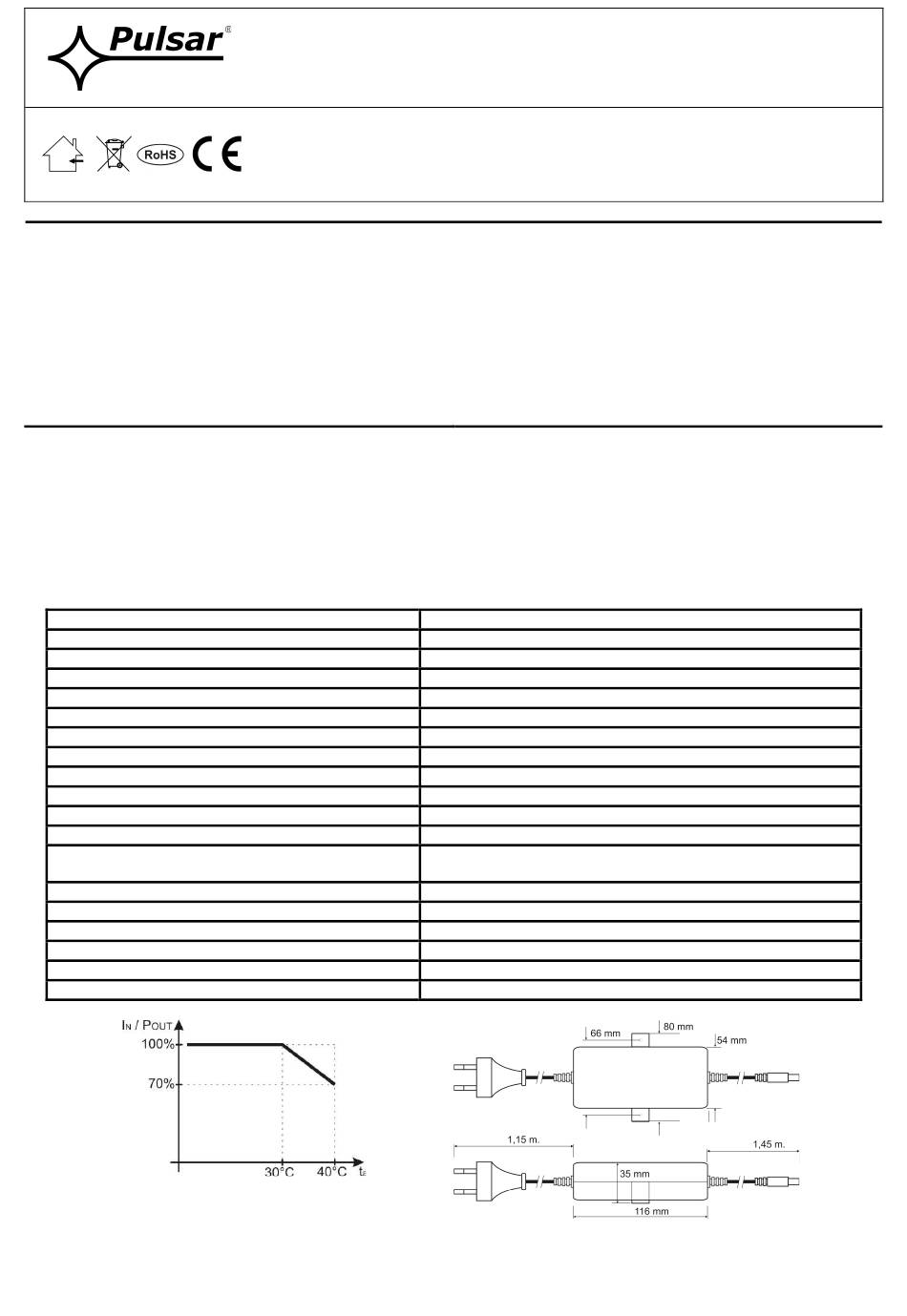

Graph 1.
Relation between output current and ambient
temperature.
PSD 15V/4A switch mode power supply desktop
Features of the power supply unit:
<30° C
=40° C
PSD15040
Edition: 2 from 22.07.2013
Supersedes edition1 from 22.02.2013
•
efficiency level: V
•
protections:
•
SCP short-circuit protection
•
overvoltage protection (AC input)
•
overload (OLP)
•
warranty – 2 year from the production date
90 ÷ 264 V AC 50÷60Hz
0,55A@230VAC max.
60W max.
87%
15V DC
4,0 A
4,0 A - refer to graph 1.
2,8 A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
150-200% of power supply, automatic recovery
LED – presence of DC voltage
o o
temperature 0 C÷40 C
relative humidity 20%...90%, without condensation
116 x 54 (80) x 35 [mm]
0,29kg / 0,34kg
II (second)
1,45m + plug DC5,5/2,1 female
1,15m + mains plug
-20ºC...+60ºC
Fig.1. Dimension of power supply.
