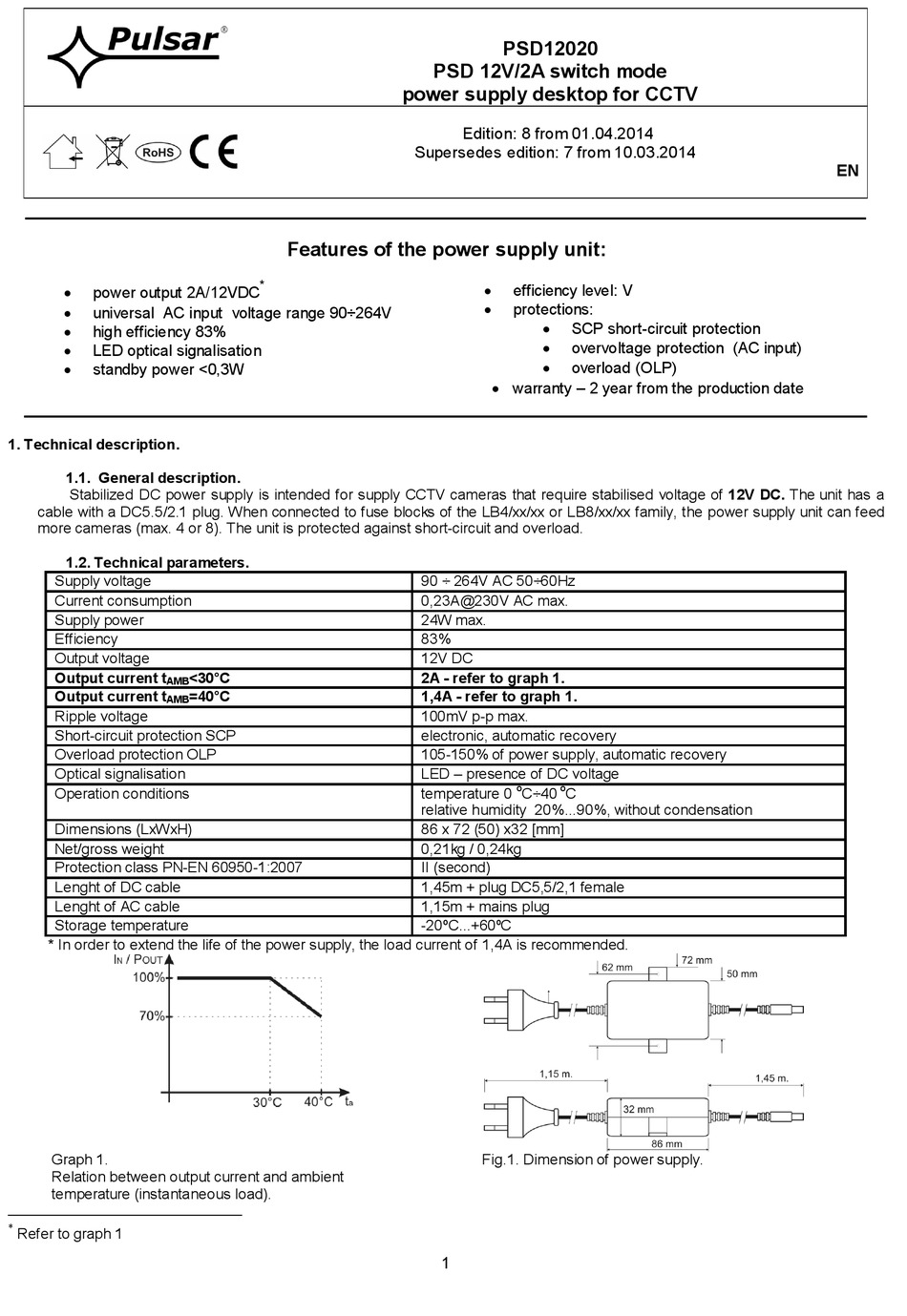

Pulsar PSD12020 Manual

 power output 2A/12VDC
universal AC input voltage range 90÷264V

high efficiency 83%

LED optical signalisation

standby power <0,3W


1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12V DC. The unit has a
cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family, the power supply unit can feed
more cameras (max. 4 or 8). The unit is protected against short-circuit and overload.

1.2. Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Optical signalisation
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature
* In order to extend the life of the power supply, the load current of 1,4A is recommended.
Graph 1.
Relation between output current and ambient
temperature (instantaneous load).
*
Refer to graph 1
Features of the power supply unit:
*
<30°C
=40°C
PSD12020
PSD 12V/2A switch mode
power supply desktop for CCTV
Edition: 8 from 01.04.2014
Supersedes edition: 7 from 10.03.2014
efficiency level: V

protections:




 warranty – 2 year from the production date
90 ÷ 264V AC 50÷60Hz
0,23A@230V AC max.
24W max.
83%
12V DC
2A - refer to graph 1.
1,4A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
LED – presence of DC voltage
o o
temperature 0 C÷40 C
relative humidity 20%...90%, without condensation
86 x 72 (50) x32 [mm]
0,21kg / 0,24kg
II (second)
1,45m + plug DC5,5/2,1 female
1,15m + mains plug
-20ºC...+60ºC
Fig.1. Dimension of power supply.
1
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
EN
