Pulsar PSD12080 Manual

•
power output 8A/12VDC
•
universal AC input voltage range 90÷264V
•
built-in active PFC function
•
high efficiency 87%
•
LED optical signalisation
•
standby power <0,5W

1. Technical description.

1.1.General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12 V DC.
The unit has a cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family, the
power supply unit can feed more cameras (max. 4 or 8). The unit is protected against short-circuit and overload.

1.2. Technical parameters.

Supply voltage
Current consumption
Power factor
Supply power
Efficiency
Output voltage
Output current
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Overvoltage protection
Optical signalisation
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature
PSD 12V/8A desktop switch
mode power supply for CCTV
Features of the power supply unit:
90 ÷ 264 V AC 50÷60Hz
0,55A@230VAC max.
>0,9@230VAC at full load
96W max.
87%
12V DC
8,0 A
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
varistors (AC input)
LED – presence of DC voltage
temperature 0
relative humidity 20%...90%, without condensation
180 x 68 x 32 [mm]
0,65kg / 0,73kg
II (second)
1,0m + plug DC5,5/2,1 female
1,5m + mains plug
-20ºC...+60ºC

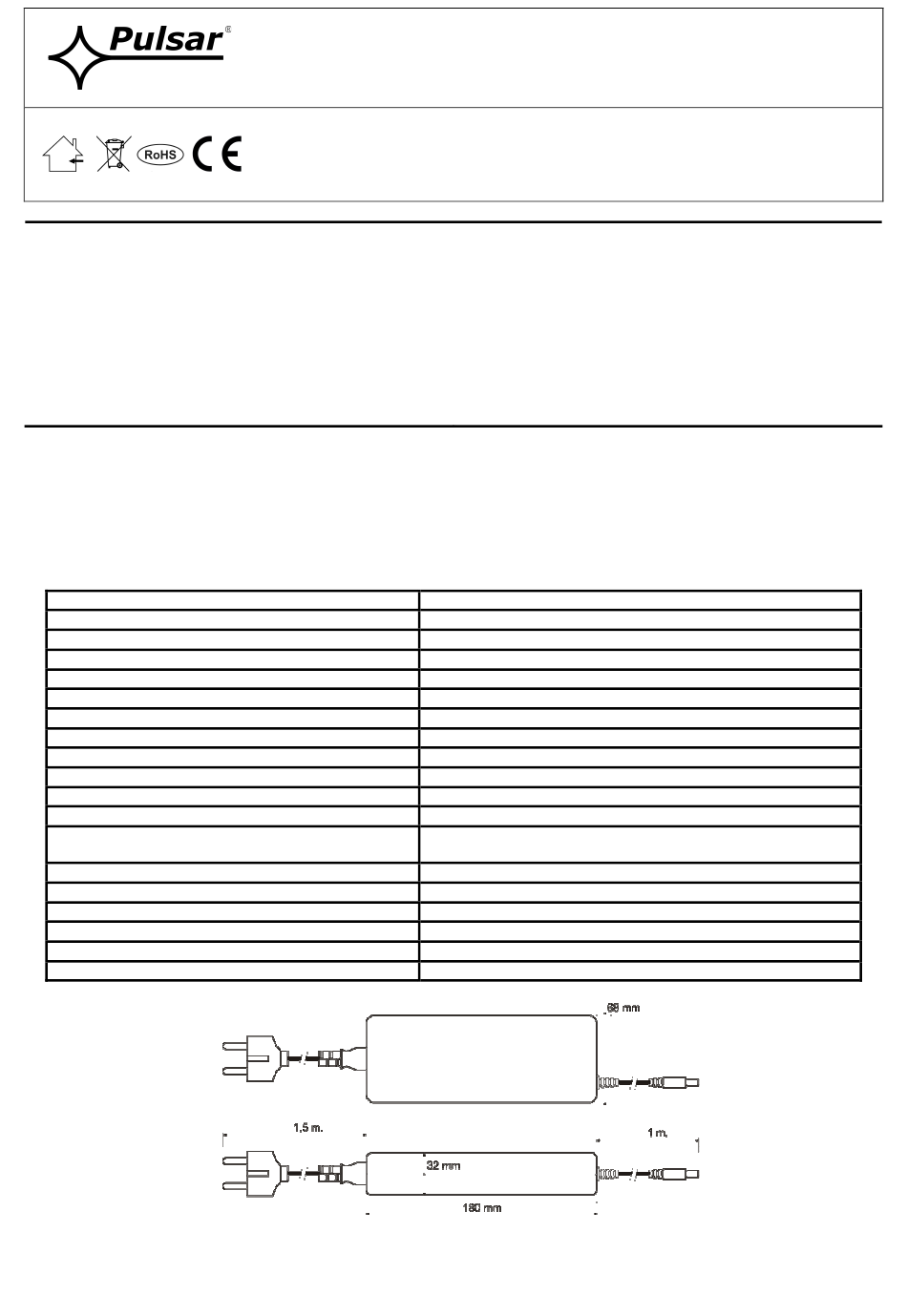

Fig.1. Dimension of power supply.
1
PSD12080
Edition: 1 from 10.09.2012
Supersedes edition: --------
•
efficiency level: V
•
protections:
•
SCP short-circuit protection
•
overvoltage protection (AC input)
•
overload (OLP)
o o
C÷40 C
EN
