This user's guide is provided with the DRV8837C customer evaluation module (EVM) as a supplement to
the DRV8837C data sheet (SLVSD61). This document details the hardware implementation of the EVM.
...................................................................................................................
1
...................................................................................................................
2
2.1
2.2
2.3
Speed Control Potentiometer (R7)
2.4
3
4
Hardware Source Files
5
DRV8837CEVM Schematic
1
Connections
2
Motor Speed Control Potentiometer
3
1
Test Point Labels and Descriptions
2
Motor Input Pins and Assigned Headers
3
Motor Input Pin States and Output Conditions
All trademarks are the property of their respective owners.
SLVUAS3 - June 2016
Submit Documentation Feedback
DRV8837C Evaluation Module User's Guide

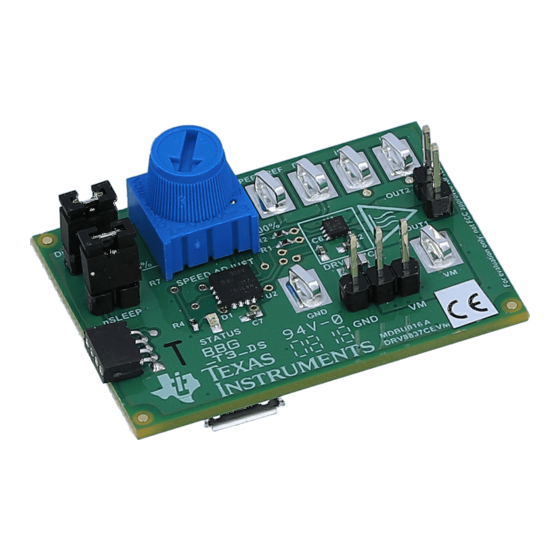

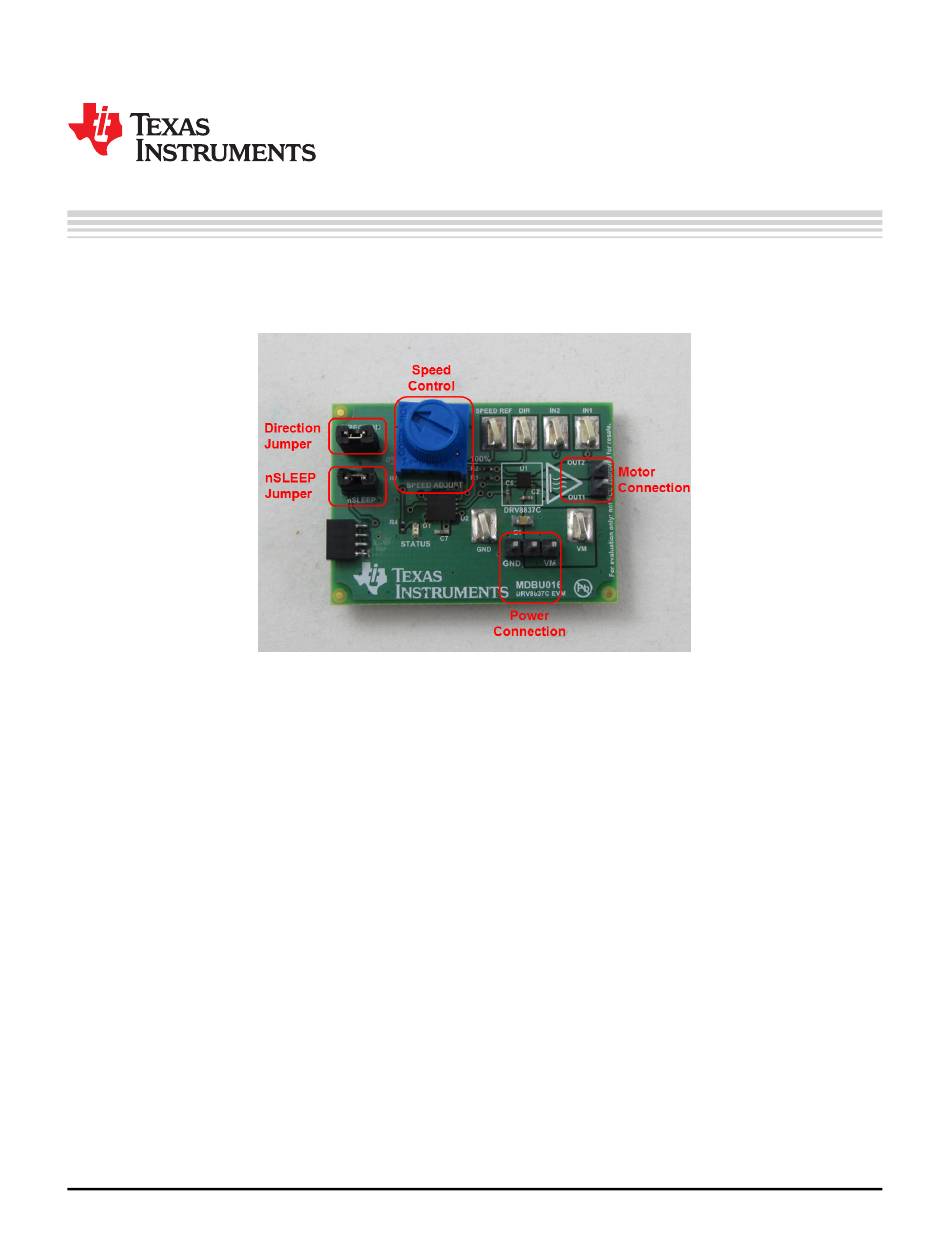

Typical Board Configuration (EVM Provided May Very)
...........................................................................................................
.................................................................................................
.......................................................................................................
.......................................................................................................
......................................................................................................
................................................................................................
..................................................................................................................
.......................................................................................
................................................................................................
.......................................................................................
.................................................................................
Copyright © 2016, Texas Instruments Incorporated
Contents
...............................................................................
List of Figures
List of Tables
...........................................................................
DRV8837C Evaluation Module User's Guide
User's Guide
SLVUAS3 - June 2016
2
2
3
3
4
4
5
5
6
2
4
6
3
3
3
1
Advertisement
Related Manuals for Texas Instruments DRV8837C
Summary of Contents for Texas Instruments DRV8837C
-
Page 1: Table Of Contents
SLVUAS3 – June 2016 DRV8837C Evaluation Module User's Guide This user's guide is provided with the DRV8837C customer evaluation module (EVM) as a supplement to the DRV8837C data sheet (SLVSD61). This document details the hardware implementation of the EVM. Typical Board Configuration (EVM Provided May Very) Contents ........................ -
Page 2: Introduction
Introduction The DRV8837C customer EVM is a platform built around the DRV8837C device which is a single H-bridge brushed DC-motor driver. This device drives one brushed DC motor with up to 1 A of output current and is controlled using a PWM (IN/IN) input interface. -
Page 3: Test Points
ADC pin on MSP430G2131 and 10-kΩ potentiometer Drive Configuration The DRV8837C EVM can control the speed and direction of the motor by varying the signals supplied to the IN1 and IN2 pins on the DRV8837C device. The MSP430G2131 device varies the duty cycle of the PWM signal supplied to the driver based on the voltage measured between the 10-kΩ... -
Page 4: Motor Outputs
Figure 2. Motor Speed Control Potentiometer Motor Outputs One brushed DC motor can be connected to JP3 as shown in Figure DRV8837C Evaluation Module User's Guide SLVUAS3 – June 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 5: Operation Of The Evm
The complete design files can be found in the tools folder, including the schematic, Gerber files, designs files, PCB views, and bill of materials (BOM). SLVUAS3 – June 2016 DRV8837C Evaluation Module User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 6: Drv8837Cevm Schematic
P1.6 P1.6/TA0.1/A6/SDO/SCL/TDI/TCLK DRV8837CDSG P1.7 P1.7/A7/SDI/SDA/TDO/TDI DVSS RESET RST/NMI/SBWTDIO DVSS TEST TEST/SBWTCK MSP430G2131IRSA16R Copyright © 2016, Texas Instruments Incorporated Figure 3. DRV8837CEVM Schematic DRV8837C Evaluation Module User's Guide SLVUAS3 – June 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 7 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
