Balmar ARS-5-H Installation And Operation Manual

MULTI-STAGE
VOLTAGE REGULATOR
Introduction

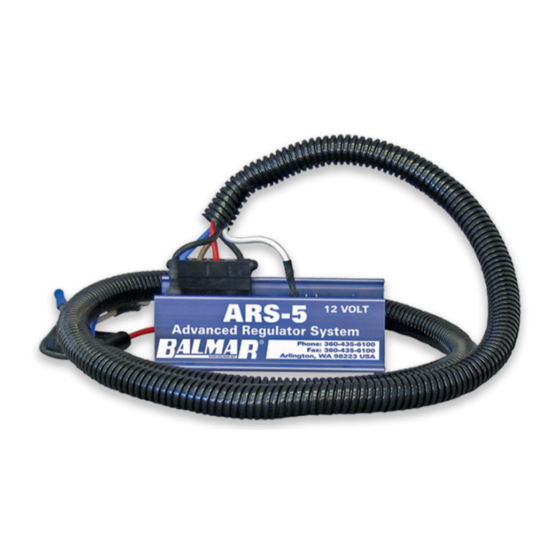

The Balmar ARS-5 provides precise voltage control for Balmar
high-output 12-volt alternators and other externally regulated
P-type (positive field) alternators, the ARS-5 features user
selectable programs for the following battery types: Deep cycle
flooded, gel, AGM and spiral wound (Optima) batteries.
In addition, the regulator features a universal default (UFP)
program that's safe for most battery types.
In addition to the user selectable preset programs, the
ARS-5 features a wealth of advanced programming modes
which make it possible to tailor charging to a wide variety of
environments and battery types
When used in conjunction with optional MC-TS-A and MCTS-B
alternator and battery temperature sensors, the ARS-5 features
the ability to monitor and respond to a range of ambient
temperature conditions, including reduction or discontinuation
of charging voltages, should a catastrophic over-temperature
condition occur at the alternator or the batteries.

Table of Contents

Introduction
Safety Considerations
Regulator Installation
Unpacking Box
Locate/Mount Regulator
Basic Wiring Installation
LiFePO
4
Regulator Terminal Layout
Installation By Wire
Initial Start Up
Regulator Operation
Regulator Display Modes
Using Magnetic Tool
www.balmar.net / Customer Service: +1 (360) 435-6100 x1 / Technical Support: +1 (360) 435-6100 x3
ARS-5
INSTALLATION AND OPERATION MANUAL
1 Regulator Programming
1 Basic Programming
2 Adjust For Battery Type
2 Belt Load Manager
2 Dash Lamp Source
2 Advanced Programming
3 Unlock Adv. Programming
4 Adjust Adv. Programming
5-7 Default Program Settings
7 Battery Equalization
8 Add'l. Regulator Features
9 Troubleshooting
12 Warranty
Tech Service is available Monday - Friday (8:30am - 7:30pm EST)
Safety Considerations
1.
Always disconnect your battery banks and
ensure that switches are "OFF" prior to
installing your regulator.
2.
Remove loose-fitting clothing or jewelry,
which could become entangled in your
motor or other machinery prior to installing
regulator.
3.
Wear ANSI-approved safety eye-wear and
protective gear.
4.
DO NOT attempt to modify the regulator.
Modifications could result in damage to
your charging system, and will void your
warranty.
5.
DO NOT attempt installation if you are tired
or fatigued.
6.
Ensure that the engine has cooled before
initiating installation.
7.
DO NOT attempt regulator installation while
using alcohol or medication that could
impair your judgment or reaction time.
11
8.
Always use the right tool for the job.
12
Improper tool use may damage regulator
12 or your vessel, and could result in personal
injury.
13
10 9.
Take time to read the manual. Equipment
14 damage and possible injuries may result
from an incomplete understanding of the
14
installation and operation of the MC-612-
11-12
DUAL regulator. If you are unfamiliar with
12
marine electrical systems, consult with a
12
licensed marine electrician.
16
13-15
16
1
©2019 Balmar LLC SUP-0203 REV.C 11/6/19
