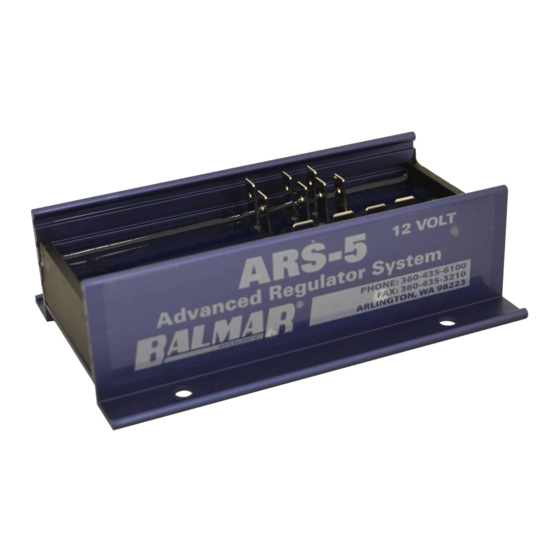

ARS-5
QUICK START GUIDE
HOUSE BATTERY
+
BANK
1
5
6
2
7
8
3
9
10
4
11
1. Ground Input
7. Stator In
2. Power Input
8. Tach. Out
3. Ignition Input
9. Alt. Temp. (+)
4. Field Output
10. Alt. Temp. (-)
5. Bat. Temp.(+)
11. Dash Lamp
6. Bat. Temp.(-)
MC-ARS-5
Installation &
Operation Manual
www.balmar.net / Customer Service: +1 (360) 435-6100 x 1 / Technical Support +1 (360) 435-6100 x 3
Positive Battery Sense
(Required for Internal Regulator Only)
Ignition
Connector 1
Connector 2
External Regulator
Plug

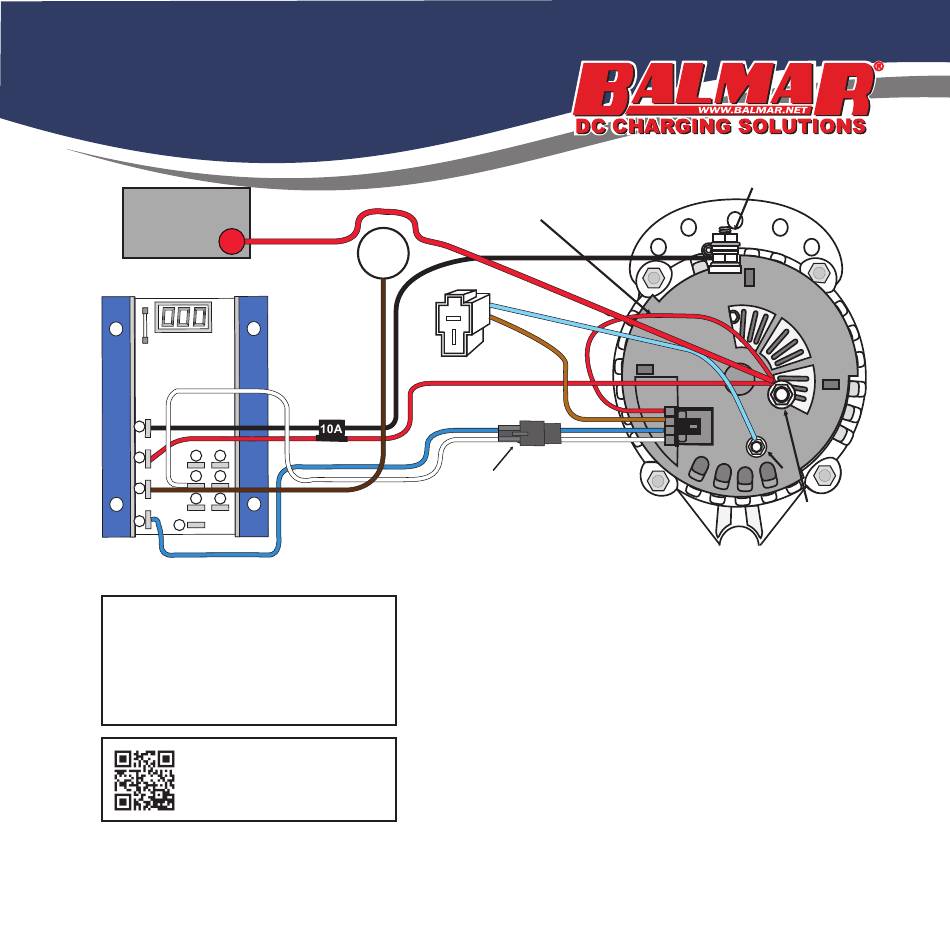

The wire diagram above shows a typical set-up for a
6-Series alternator to a ARS-5 regulator. Connector 1
is for use with the internal regulator which connects to
a Yanmar engine harness. Connector 2 is used with
the ARS-5 or MC-614 (as shown).
Alternators other than the 6-Series have similar, but
slightly different connections. If programming for
specific battery type, 12.5 volts on the battery are
necessary. Please refer to the Alternator Installation
Guide for specific connections.
FLIP OVER FOR MORE INFORMATION
Isolated Ground Terminal
MUST be connected to system ground
D+
Positive Output
SUP-0242 REVA
Terminal
