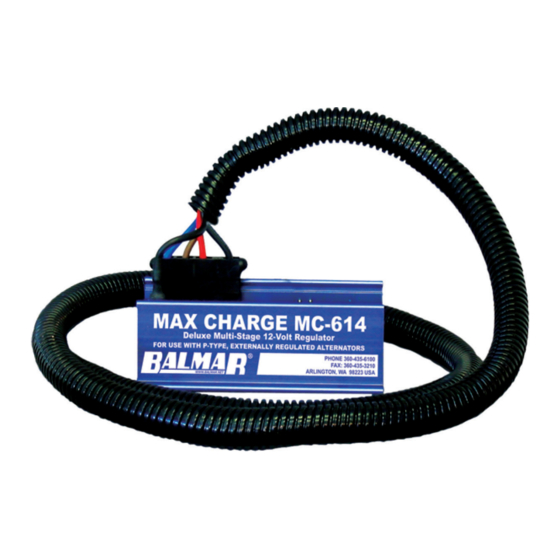

Balmar MC-614 Quick Start Manual

MC-614
QUICK START GUIDE
HOUSE BATTERY
BANK
17
16
14 15
4
12 13
3
10 11
2
9
7 8
5 6
1
1. Ground Input
2. Power Input
3. Ignition Input
4. Field Output
5. Alt. Temp.(-)
6. Alt. Temp.(+)
7. Bat. #1 Temp.(-)
8. Bat. #1 Temp.(+)
9. Positive Voltage Sensor
MC-614
Installation &
Operation Manual
www.balmar.net / Customer Service: +1 (360) 435-6100 x 1 / Technical Support +1 (360) 435-6100 x 3
(Required for Internal Regulator Only)
+
Ignition
Connector 1
External Regulator
Plug
10. Data TX

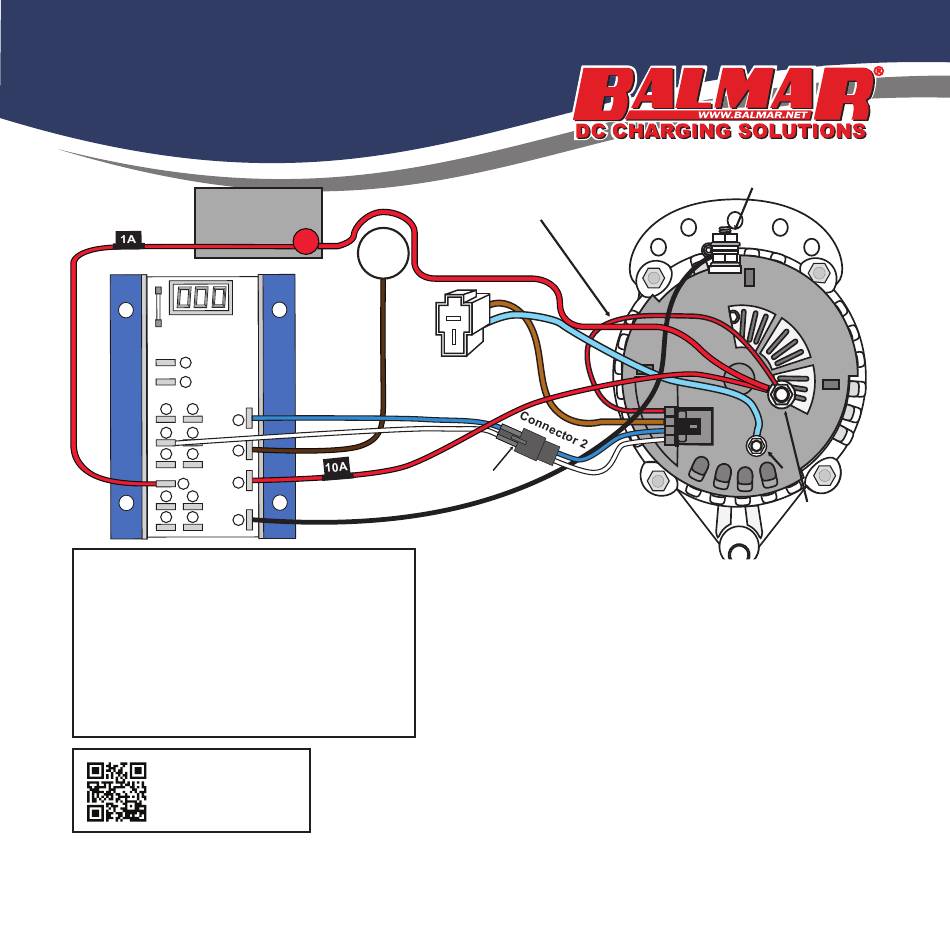

The wire diagram above shows a typical set-up for a
11. Data RX
6-Series alternator to a MC-614 regulator. Connector 1
12. Stator In
is for use with the internal regulator which connects to a
13. Tach. Out
Yanmar Engine harness. Connector 2 is used with the
14. Bat. #2 Temp. (-)
MC-614 or ARS-5 (as shown).
15. Bat. #2 Temp. (+)
16. Aux. #1 Lamp
Alternators other than the 6-Series have similar, but
17. Dash Lamp
slightly different connections. If programming for specific
battery type, 12.5 volts on the battery are necessary.
Please refer to the Alternator Installation Guide for
specific connections.
FLIP OVER FOR MORE INFORMATION
MUST be connected to system ground
Positive Battery Sense
Isolated Ground Terminal
D+
Positive Output
Terminal
SUP-0239 REVA
