Trycom Technology TRP-C34X User Manual page 29

32 bit ethernet to 1 rs232 and 1 rs422/485 optical isolated 32 bit ethernet to 1 rs232 and 1 rs422/485 optical isolated converter

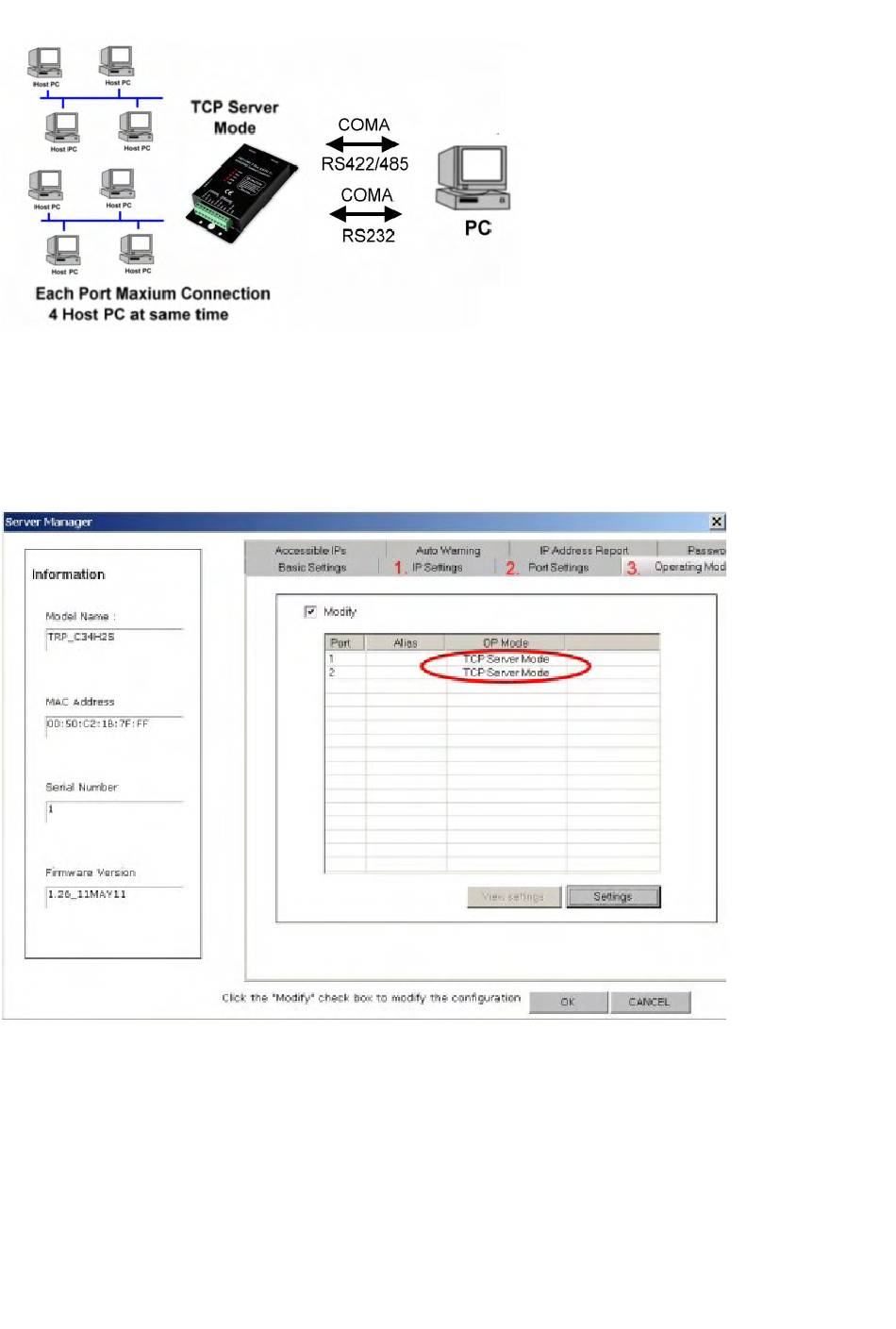

Example:

Step1: Connect Host PC 1~8-----Ethernet-----TRP-C34X-----PC .

Step2: Run "Serial Server Admin Utility" and Right Click on the selected device and click on

configure to go to Configuration menu.

Step3: Be sure "IP Setting"," Port Setting" and "Operating Mode" is correct.

Step4: Select "Server Monitor" then right clicks "Add Device".

Step5. Select "Go".
