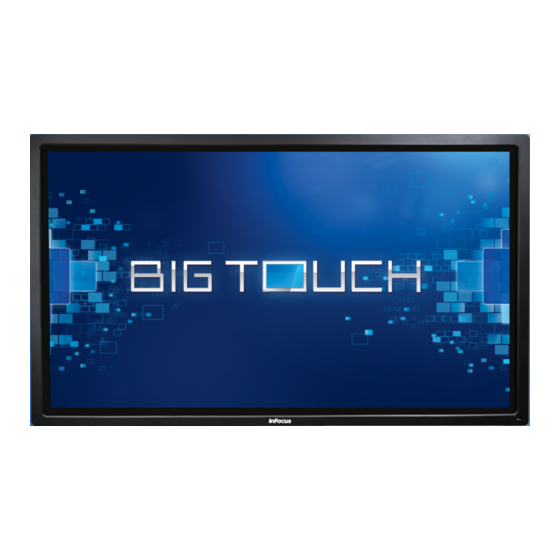

InFocus BIG TOUCH INF8511 Hardware Manual
  1. Manuals
  2. Brands
  3. InFocus Manuals
  4. Monitor
  5. BIG TOUCH INF8511
  6. Hardware manual

InFocus BIG TOUCH INF8511 Hardware Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HARDWARE GUIDE
INF8511
009-1647-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG TOUCH INF8511 and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus BIG TOUCH INF8511

Summary of Contents for InFocus BIG TOUCH INF8511

  • Page 1 HARDWARE GUIDE INF8511 009-1647-00...

  • Page 3: Table Of Contents

    CONTENTS Declaration of Conformity ..............................3 Safety Considerations .................................4 安全資訊 ....................................5 What’s Included ..................................7 Setup ....................................8 Mounting ..................................8 Connecting to other devices ............................9 Connecting AC power ..............................12 External PC touchscreen control setup ........................12 Turning the Display On/Off ..............................12 Standby behavior ................................12 Setting up the Wireless Mouse and Keyboard ........................13 Wireless mouse ................................13 Wireless keyboard ...............................13...

  • Page 5: Declaration Of Conformity

    Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. SRS TruSurround HD and SRS TruVolume are trademarks of SRS Labs, Inc. TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

  • Page 6: Safety Considerations

    SAFETY CONSIDERATIONS Please read and follow all safety instructions provided below and on the display before connecting the display to a power source. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by the equipment.

  • Page 7: 安全資訊

    • Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty.
  • Page 8 • 如果您需要使用附帶的超細纖維清潔布進行清潔，請拔掉顯示器插頭。電源關閉時，可使用清潔布擦拭螢幕。切勿在顯 示器上使用酒精、溶劑或含氨 液體。 • 操作顯示器附帶的線纜後需要洗手。 • 顯示器遙控器利用電池工作。一些型號在發運時還附有採用電池工作的滑鼠和鍵盤。請確保電池極性 (+/-) 正確對齊。按 照當地廢棄物品處理法規處理 廢舊電池。 • 僅使用符合此產品規格的適當耐火等級牆和支架安裝硬體，並遵守製造商的安裝指示。由額定安裝硬體使用不當或安裝 不當造成的任何損壞均不在保 修範圍內。 • 請向專業維修人員諮詢所有維修資訊。請勿卸下封蓋或封底。自行維修顯示器不僅會對您造成傷害，而且也會使保修失 效。 • 僅使用 InFocus 指定的更換零件。未經授權進行更換可能會造成火災、電擊或人身傷害，並可能使保修失效。 • 將顯示器安裝到牆上時，必須使用 8 枚公制（12 毫米）螺絲。此外，安裝介面應符合北美地區的 UL1678 標準。安裝方 法應結實牢固，足以承受顯 示器的重量（參見產品技術規格）。 • 遵守這些指示有助於確保使用壽命內顯示器的圖像品質。不遵守這些指示可能會影響保修。 • 鋰電池注意事項（僅適用于發運時配有內嵌 PC 箱的型號）：如果更換的電池類型不正確，可能會有爆炸的風險。應按 照製造商的建議，使用相同或同類型的電池進行更換。按照當地廢棄物品處理法規處理廢舊電池。 Page 6...

  • Page 9: What's Included

    (batteries not included) *Not included for all countries. For setup purposes, a keyboard and mouse are recommended. For additional accessory options, such as stands, feet, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. INF8511 Hardware Guide...

  • Page 10: Setup

    SETUP Mounting This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this product's specifications and follow the manufacturer installation instructions. • Only use properly rated wall and stand mounting hardware that meet this product’s specifications and follow the manufacturer installation instructions.

  • Page 11: Connecting To Other Devices

    Connecting to other devices A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on the back and side of the display. Available jacks include: USB-B for touch control (2), USB 3.0-A (6), HDMI In (4), DisplayPort (1), PC In (1), Component RCA (1), DisplayPort Out (1), RJ45 (2), RS232 (1), Line In (1), Audio In 3.5mm (2), Audio In RCA (1-R/L), and Audio Out RCA (1-R/L).
  • Page 12 Connect an HDMI cable from the display to an HDMI external device HDMI (such as a computer or DVD player). TOUCH Connect a Type A to Type B USB cable from the display to an external CONTROL computer in order to use the touchscreen gestures on the display. Connect a wireless mouse, USB thumb drive or other USB device one USB-A of these USB 3.0 Type A connectors.
  • Page 13 Connect the antennas to these jacks in order to receive and transmit ANTENNAS Antennas wireless data. POWER Press to turn the PC on and off. Connect a DisplayPort cable from the embedded computer to another DISPLAYPORT display. Connect a wireless mouse, USB thumb drive or other USB device one USB-A USB-A of these USB Type A connectors.

  • Page 14: Connecting Ac Power

    Connecting AC power Connect one end of the AC power cord to the AC In jack on the back of the display. Connect the other end of the AC power cord to an AC outlet. Press the power switch. (The LED on the front of the display turns on.) NOTES: • Your display should only be operated from the power source indicated on the label.

  • Page 15: Setting Up The Wireless Mouse And Keyboard

    SETTING UP THE WIRELESS MOUSE AND KEYBOARD NOTE: The wireless mouse and keyboard is not included as a standard accessory for some countries. For initial setup and/or configuration, it may be easier to use a mouse and keyboard. Any standard wired or wireless mouse or keyboard can be connected through the display's USB ports.

  • Page 16: Using The Remote

    USING THE REMOTE The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the + and – ends of the batteries, sliding them in place and replacing the cover. To operate, point the remote at the display sensor at the bottom right-hand corner of the display.
  • Page 17 Remote buttons Power: Switches the power on or puts the display into Standby. POWER Home: Changes the active source back to the embedded PC. HOME Input: Toggles the Input Source menu on and off, which allows the user to INPUT change sources.

  • Page 18: Using The Keypad

    Freeze: When enabled, freezes the image which is currently displayed. Blank: Toggles between the source and a blank black screen. Dimming: Adjusts brightness level. USING THE KEYPAD The keypad, located on the side of the display, has the following buttons: Power button: Switches the power on or puts the display into Standby.

  • Page 19: Osd (On-Screen Display) Menu System

    OSD (ON-SCREEN DISPLAY) MENU SYSTEM The OSD provides the user the ability to control the display display. To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the display. Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu.

  • Page 20: Picture

    Picture PICTURE BRIGHTNESS CONTRAST SHARPNESS NATIVE COLOR TEMPERATURE COLOR CONTROL GREEN BLUE STANDARD PICTURE MODE PICTURE RESET < > Adjust Enter Back Quit Brightness: changes the intensity of the image. Range: 0-100. (Default 70.) Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.

  • Page 21: Screen

    Screen SCREEN H POSITION V POSITION CLOCK CLOCK PHASE BLANK DIMMING ASPECT RATIO WIDE SCREEN RESET < > Adjust Enter Back Quit H Position: adjusts the horizontal position of the image. Range: 0-100. (Default 50.) V Position: adjusts the vertical position of the image. Range: 0-100. (Default 50.) Clock: adjusts the width of the image (For VGA input only).

  • Page 22: Audio

    Audio AUDIO SPEAKER INTERNAL AUDIO SOURCE HDMI 1 AUDIO RESET < > Adjust Enter Back Quit Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options include: Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal.

  • Page 23: Pip

    PIP MODE PIP INPUT PIP POSITION TOP-RIGHT PIP SWAP PIP SIZE SMALL PIP AUDIO MAIN PIP RESET < > Adjust Enter Back Quit PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No. PiP Input: selects the source input for the PiP window. Options include: HDMI1, HDMI2, HDMI3, DisplayPort, Mondopad, VGA, Component.

  • Page 24: Configuration 1

    Configuration 1 CONFIGURATION 1 LANGUAGE ENGLISH AUTO SOURCE USB HUB SWITCH AUTO CONFIGURATION RESET FACTORY RESET < > Adjust Enter Back Quit Language: switches the OSD menu language. Auto Source: When enabled, automatically searches for an active source. If no source is detected, the device will revert to the previously active source.

  • Page 25: Configuration 2

    Configuration 2 CONFIGURATION 2 OSD TURN OFF FREEZE OSD H POSITION OSD V POSITION OSD ROTATION PORTRAIT MONITOR INFORMATION < > Adjust Enter Back Quit OSD Turn Off: controls how many seconds the OSD menu remains on the screen Range: 5-120 (seconds). (Default: 10) Freeze: When enabled, freezes the image which is currently displayed.

  • Page 26: Advanced Option

    Advanced option ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN IR CONTROL NORMAL KEYPAD CONTROL LOCK DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode 2, Mode 3.

  • Page 27: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE SOLUTIONS No power • Verify the power cord is properly connected to the power outlet and to the display. • Verify the power switch is ON and that the Power button on the remote or keypad has been turned on (the front LED should be green). • Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage.
  • Page 28 Keypad and/or mouse is not • Make sure the batteries are installed in the proper orientation and are not dead. working • Press the Connect button on the bottom of the keypad. • Verify the USB adapter is installed into the display's USB port. • Verify that the Keyboard Control setting in the Advanced Option OSD menu is set to Unlock.
  • Page 29 3) Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage. For additional troubleshooting support, please contact: InFocus Corporation - Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support...

  • Page 30: Limited Warranty

    If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or refurbished...
  • Page 31 (l) if the product is not used under normal operating conditions which are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced.
  • Page 32 InFocus will provide it. You must assist in diagnosing issues with your product and follow InFocus’s warranty processes. InFocus may restrict service to the country where InFocus or its Authorized Distributors originally sold the hardware product. InFocus will provide warranty service either (i) at an ASP location, where service is performed at the Page 30...
  • Page 33 If during the diagnosis period, InFocus identifies that the repair can be accomplished by the use of a CSR part, InFocus will ship that part directly to you for replacement. There are two categories of CSR parts: • Parts for which customer self repair is mandatory. ...
  • Page 34 InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, OR 97223-8368 USA © 2016 InFocus Corp. All rights reserved. InFocus and the InFocus logo are trademarks of InFocus Corp., registered in the U.S. and other countries.

  • Page 35: 安全注意事項

    安全注意事項 在將顯示器連接到電源之前，請仔細閱讀並遵守顯示器上提供的下述安全說明。如不遵守安全說明則可能導致火災、觸電或 人身傷害，並可能損壞或 損害對設備所提供的保護。 請妥善保存所有安全說明。 • 這種顯示器是非常沉重的，應由至少兩個人進行搬動和安裝。不要試圖自行搬動或安裝顯示器，否則可能造成傷害和/ 或損害。 • 搬動顯示器時，利用手柄和側板或底板始終牢固地把持住顯示器。不要把持頂板。 • 在搬動顯示器紙箱時，不要傾斜或倒置紙箱。始終將其保持在豎直方向。 • 在移動顯示器前，請斷開所有配件和電纜。 • 如果顯示器安裝在牆上，顯示器與牆壁之間的距離至少保持為 1.98 英寸（5釐米），以提供足夠的通風。 • 請參閱正確的開機和關機程式方面的指南。 • 遵循本手冊和顯示器上的所有警告和注意事項。 • 顯示器的安放位置遠離加熱和冷卻通風孔至少 4 英尺（1.2米）。 • 請勿堵塞通風口。顯示器放在通風良好且不阻礙進氣口和排氣口的地方。 • 不要在諸如散熱器、熱記錄器、火爐或其他發熱設備（包括放大器）等熱源附近安裝或使用顯示器或揚聲器。 • 不要將顯示器放置在陽光直射、潮濕、油膩或灰塵較多的地方，或顯示器可能接觸到雨水、煙霧或蒸汽的地方。 • 顯示器使用的電源線不應該靠近水，例如靠近浴缸、洗臉盆、廚房水槽、游泳池等。 • 不要在靠近水的地方使用顯示器的任何元件，包括揚聲器。警告：為減少火災或觸電的危險，請勿將本設備和該設備的 任何元件淋雨或受潮。 • 請勿摔落顯示器。 • 不要將液體灑在顯示器上。濺落的液體可能損壞顯示器。...
  • Page 36 • 只使用富可視公司指定的更換零部件。未經認可的代用品可能會導致火災、觸電或人身傷害，並可能導致保修失效。 • 在將顯示器安裝到牆上時，必須使用 M8 (12 毫米) 規格的螺栓。此外，安裝介面應符合北美 UL1678 標準。安裝方 式應牢固到足以承受顯示器的重量。 • 請遵照以下說明，以確保顯示器使用壽命期間的圖像品質。不遵守這些說明可能會影響保修。 • 鋰電池（PC 主機殼中的）注意事項：如果更換的電池類型不正確，則有爆炸的危險。更換的電池應為相同類型，或製 造商推薦的等效類型。根據當地 處理法規處理廢舊電池。 Page 34...

  • Page 37: Bigtouch 85"顯示器I/O Port 介紹前/後面板

    BIGTOUCH 85"顯示器I/O PORT 介紹前/後面板 Antennas USB-A USB-A RJ45 RJ45 INF8511 Hardware Guide Page 35...
  • Page 38 HDMI 接收外部裝置的HDMI信號。 TOUCH 將USB纜線從顯示器連接至外部電腦，以便使用觸控模組。 CONTROL 连接无线鼠标、U盘等其他连接USB Type-A的设备，兼容 USB-A USB2.0&USB3.0 。 從顯示到外部硬碟或其他類似的週邊設備連接到 B 型 USB 電纜的 A 型。 HDMI 1 - 3 接收外部裝置的HDMI信號。 DisplayPort 接收外部裝置的DisplayPort信號。 PC IN 接收來自外部裝置（例如電腦）的類比RGB訊號。 接收來自外部裝置（例如DVD播放器,HDTV裝置或雷射光碟播放器）的色 COMPONENT 差視訊(YPbpr)訊號。 Page 36...
  • Page 39 ANTENNAS 無線數據的接收和發射。 Antennas POWER 開啟/關閉主機。 DISPLAYPORT 將內部信號通過DISPLAYPORT線纜輸出至另一台顯示器上。 USB-A 连接无线鼠标、U盘等其他连接USB Type-A的设备，兼容 USB-A USB-A USB2.0&USB3.0 。 RJ45 RJ45 RJ45 連接到乙太網絡 (10/100/1000 Mbps)。 LINE IN 連接至麥克風。 RS232 通过远程操作控制设备。 AUDIO IN1 接收來自外部裝置（例如iPod播放器）所發出的音頻訊號。 AUDIO IN2 接收來自外部裝置（例如DVD播放器）所發出的音頻訊號。 AUDIO OUT 連接到外接式立體聲喇叭。 INF8511 Hardware Guide Page 37...
  • Page 40 開啟或關閉顯示器。 功能1: 切换屏幕显示Source功能 。2: 选取/确认OSD功能表中的选 。 在OSD 功能表中向上捲動瀏覽各個設定和選項。 在OSD 功能表中向下捲動瀏覽各個設定和選項。 在OSD 功能表中向左捲動瀏覽各個設定和選項。 当OSD 菜单关闭时，这个按钮降低音 量。 在OSD 功能表中向右捲動瀏覽各個設定和選項。 当OSD 菜单关闭时，这个按钮增加音 量。 開啟或關閉OSD 功能表。 Page 38...
