USB 3.0\eSATA 1:5 SATA HDD Duplicator Dock
SATDOCK5U3ER
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/31/2016
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STSATDOCK5U3ER
Summary of Contents for StarTech.com 8STSATDOCK5U3ER
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/31/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Hardware Setup ..................3 Basic Operation ..................3 Advanced Operation................4 User Menu Table of Contents ........................ 5 LED Indicators ..................11 Technical Support ..................12 Warranty Information ................12 Instruction Manual... -
Page 4: Product Diagram

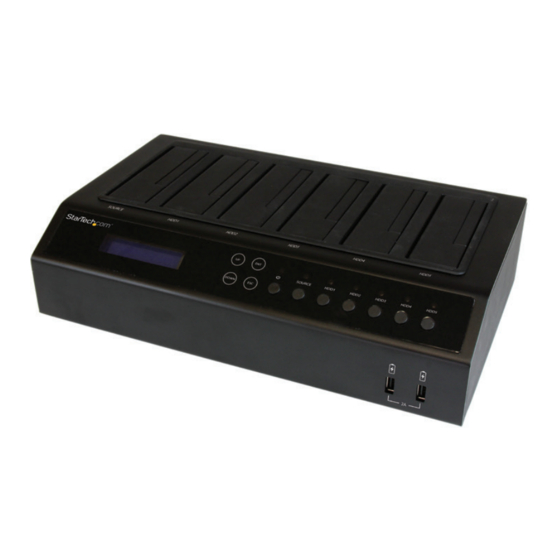

Product Diagram Front View 1. Source 2.5/3.5in HDD/SSD Top Loading Slot Bay 2. Destination 2.5/3.5in HDD/SSD Top Loading Slot Bays 3. LCD Display 4. Menu Operation buttons 5. Power button 6. Drive Power Buttons/LEDs Rear View 1. Fan Speed Controls 2. -
Page 5: Introduction
Introduction Packaging Contents • 1 x USB 3.0/eSATA 1:5 SATA HDD duplicator dock • 1 x USB 3.0 cable • 1 x eSATA cable • 4 x rubber feet (installed) • 1 x universal power adapter (NA/JP, EU, UK, ANZ)) •... -
Page 6: Hardware Setup
Hardware Setup WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Advanced Operation
For Drive Erasing: WARNING! Any Data remaining on drives connected to the destination port will be deleted. Please back up all data before performing any Erase function. 1. Using the up and down arrow keys, locate “5. Erase HD” from the On Screen LCD display and press ENT. -
Page 8: User Menu Table Of Contents
User Menu Table of Contents 1. Copy HD 2. Compare HD 3. Copy & Compare 4. PreScan HD 5. Erase HD 6.Source HD Size 7. Setup 7.1 Copy Size 7.2 Copy Disk 7.3 Startup Menu 7.4 Button Sound 7.5 Device Info 7.6 System Info 7.7 Erase Mode 7.7.1 - Quick Erase... - Page 9 1. Copy The copy function copies data from the source HDD to the destination HDDs. Notes: • If an error occurs during the copy process, it will be reported on the OSD and the offending drive will have a Purple LED. •...
- Page 10 unresponsive drive then the offending drive will have a red LED. However, the OSD will not report an error because the drive was not part of the copy process. • If failure occurs during the erasing process, and more than one drive is connected, you will be alerted of the failure at the end of the erasing process.
- Page 11 current Firmware on your duplicator dock. 7.7 Erase Mode The Erase Mode Function enables you to define 7.7.1 - Quick Erase Deletes the partition table on your hard drive. 7.7.2 – 1 Pass Overwrite Completely deletes all data on each individual drive, by writing over each sector with a 0 one time.
- Page 12 7.7.4 - 7 Pass Overwrite Completely deletes all data on each individual drive, by writing over each sector seven times. With a combination of 0, 1, and random. Pass Binary 11110110 0xF6 00000000 0x00 11111111 0xFF Random Random 00000000 0x00 11111111 0xFF Random...
- Page 13 8.3 Upgrade Firmware If an update to the device firmware is available on the StarTech.com product page, this option can be used to update the device. The steps below outline the steps for executing a system update. Note: A firmware update should only be done if recommend by StarTech.com.
-
Page 14: Led Indicators
LED Indicators The duplicator dock offers a LED indicators for each drive bay, to monitor drive activity and alert you to potential drive failure. Please review the below table for specifications details regarding LED activity. Status LED Colour Activity Drive powered on and detected Blue Solid Drive activity... -
