StarTech.com USB3SMDOCKHV Instruction Manual

Instruction Manual
USB 3.0 Mini Docking Station with HDMI® or VGA, GbE, and USB Pass-through
USB3SMDOCKHV
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x USB 3.0 Mini Docking Station
• 1x Instruction Manual
• 1x Driver CD
System Requirements
• USB enabled computer system with an available USB 3.0 port
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP SP3 (32),
Mac OS® 10.6 and up (Tested up to 10.9)
• HDMI® or VGA enabled display device if desired
Note: Only a single video output port can be used at one time,
HDMI® or VGA. If two displays are connected, the HDMI port will
take priority.
Installation
Depending on your Operating System version and whether or not
you have an active network connection, the Mini Docking Station
may auto-install once connected to an available USB 3.0 port on the
host system.
If the Mini Docking Station does not auto-install, follow the steps
below to complete the Driver Installation process.
Driver Installation
Windows / Mac
1. Download the latest drivers from the www.startech.com website
(recommended) applicable to your host Operating System that
you are connecting to, or, insert the included Driver CD into your
computer's CD/DVD-ROM drive.
2. If AutoPlay is enabled, select the "Open folder to view files"
option when the dialog appears and run the DisplayLink ".exe"
application.
3. If AutoPlay is disabled, browse to your CD/DVD drive location (or
to where the driver was downloaded) and run the DisplayLink
".exe" application.
4. Follow any on-screen instructions to complete the driver
installation.
Note: You may be prompted to restart your system.
For the most up-to-date information, please visit: www.startech.com

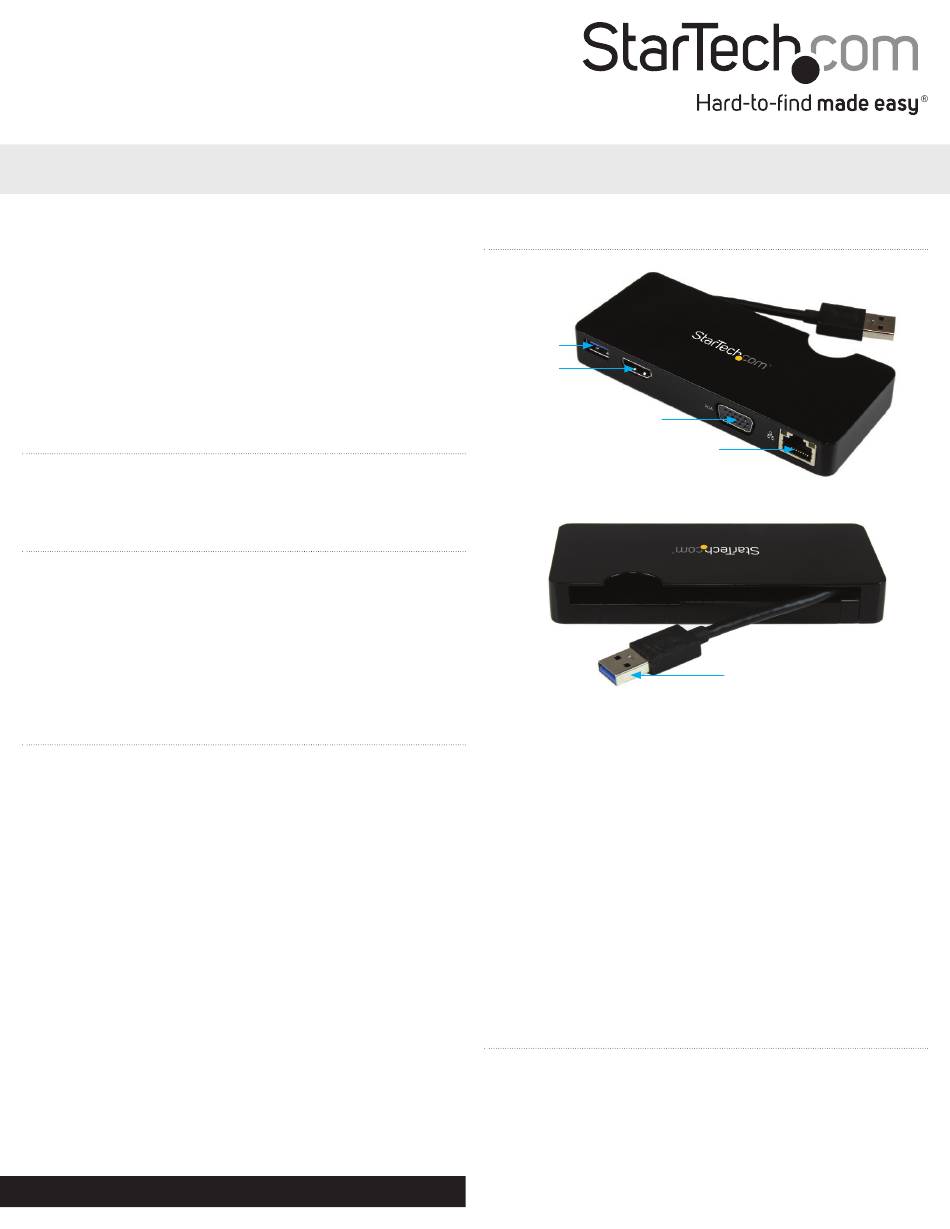

Product Overview

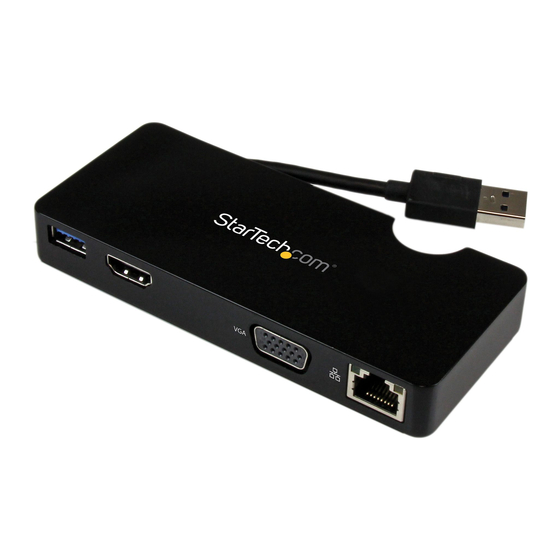

Front View
USB 3.0
HDMI®
VGA
Rear View
Hardware Installation
1. Connect the Mini Docking Station to an available USB 3.0 port
on the computer via the built-in USB Upstream Cable.
2. Connect a HDMI® monitor to the HDMI® port on the adapter,
or, connect a VGA monitor to the VGA port on the adapter and
power on the monitor.
Note: Only a single video output can be used at one time, HDMI®
or VGA. If a display is connected to each video output port at the
same time, then the HDMI® port will take priority.
3. Connect your Cat 5e/6 network connection to the RJ-45 port on
the adapter if desired
4. Connect your USB 3.0 peripheral to the USB 3.0 downstream
(USB Pass-through) port on the adapter if desired.
Display Configuration
Use your Windows or Mac operating system to adjust display
settings for multiple monitors.
RJ-45
USB 3.0 Upstream Cable
Manual Revision: 09/10/2015
