Levelflex FMP53 FOUNDATION Fieldbus
8.3

Device configuration

8.3.1 Configuring level measurement

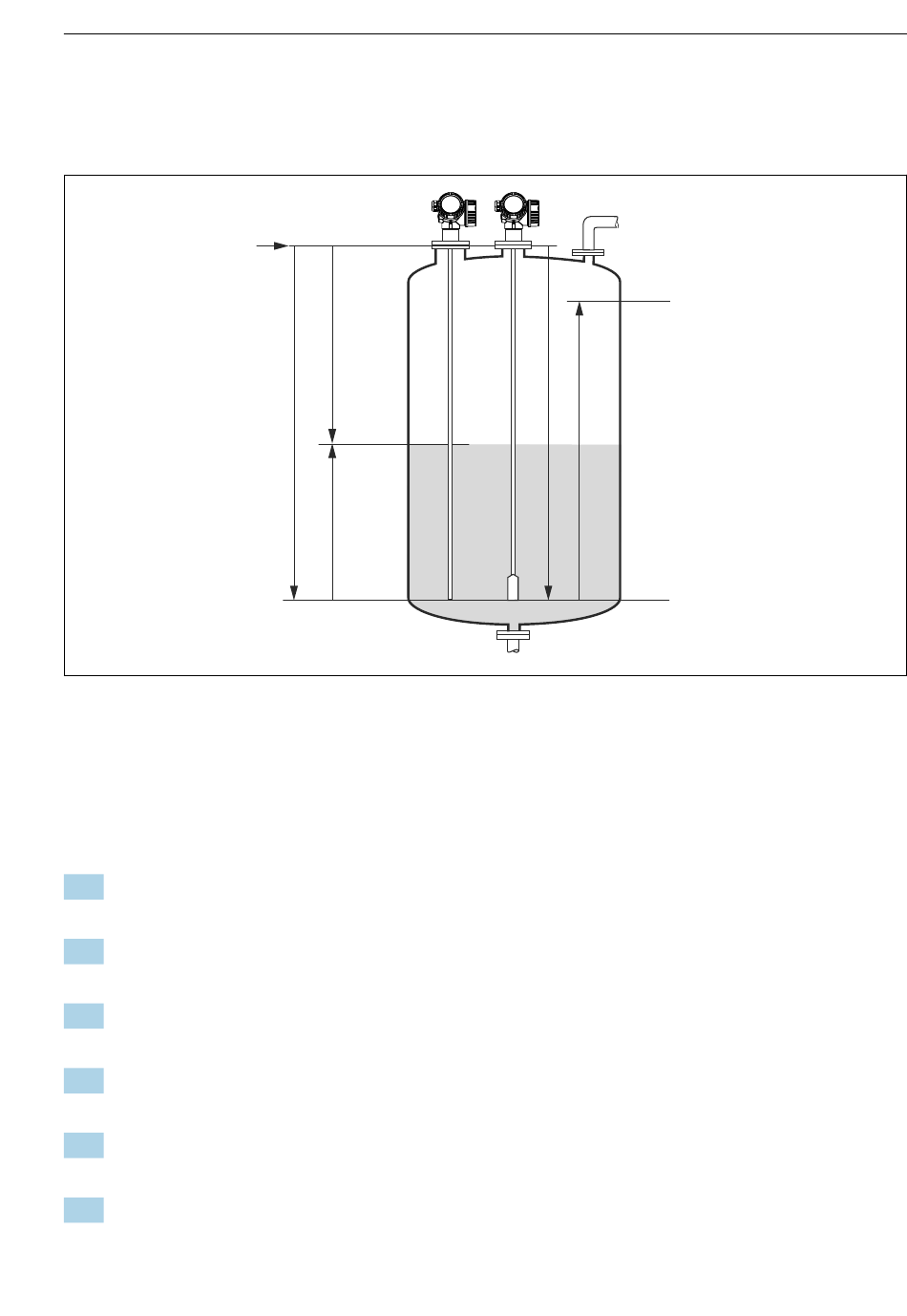

 10 Configuration parameters for level measurement in liquids
LN = Probe length
D = Distance
L = Level
1. Setup → Device tag
 Enter device tag.
2. Setup → Distance unit
 Select the length unit.
3. Setup → Tank type
 Select tank type.
4. Setup → Tube diameter (only for "Tank type" = "Bypass / pipe")
 Specify the diameter of the bypass or stilling well.
5. Setup → Medium group
 Specify the medium group (Others or Water based (DC >= 4))
6. Setup → Empty calibration
 Specify the empty distance E (distance from the reference point R to the 0% mark).
Endress+Hauser
R
D
LN
L
R = Reference point of measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
20 mA
100%
E
F
4 mA
0%
Commissioning
A0011360
21
