Levelflex FMP53 FOUNDATION Fieldbus
5.2

Mounting the device

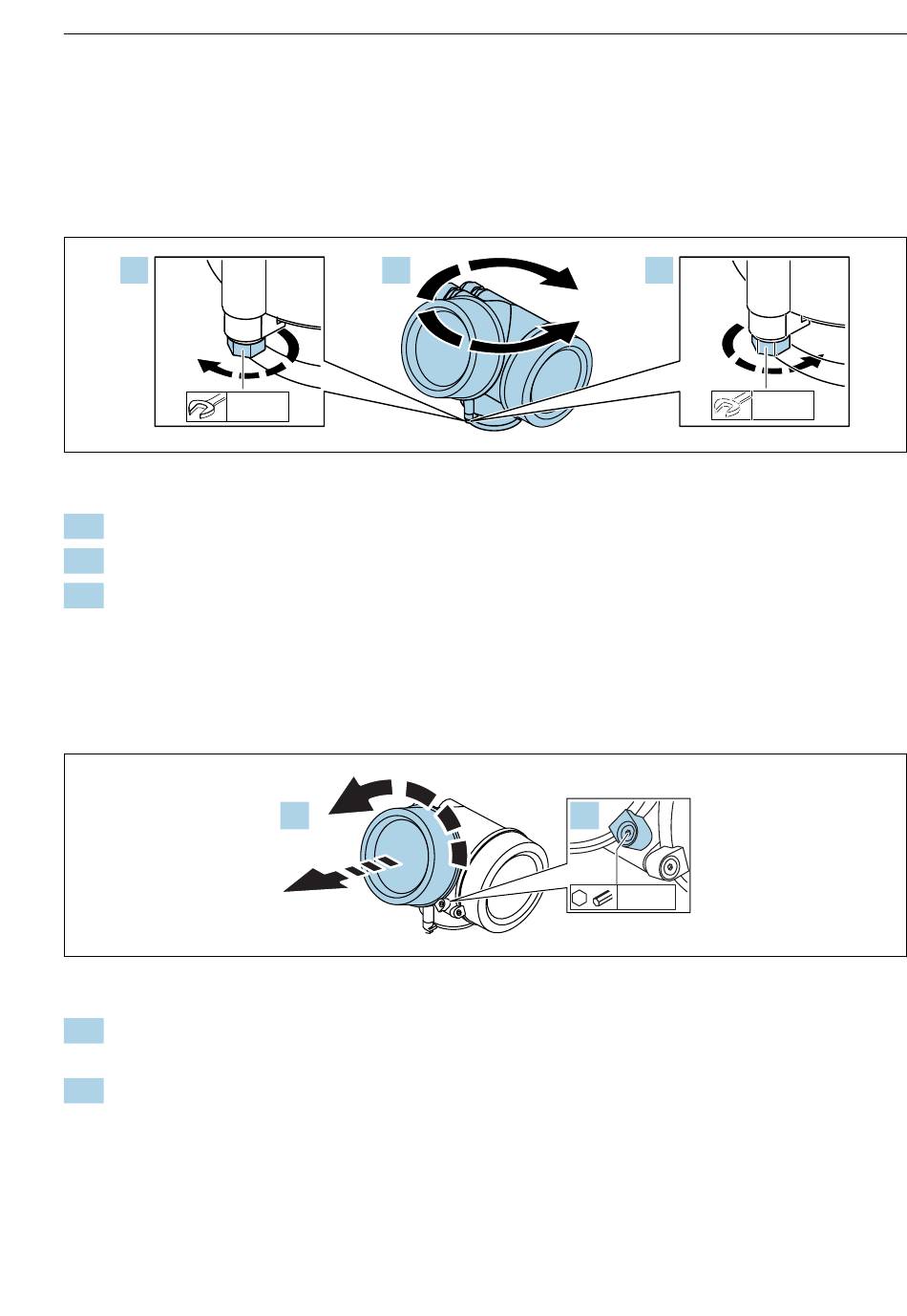

5.2.1 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
1.
8 mm
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or
stainless steel housing).
5.2.2 Turning the display
Opening the cover
1. Loosen the screw of the securing clamp of the electronics compartment cover using an
Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2. Unscrew the electronics compartment cover and check the cover seal; replace it if
necessary.
Endress+Hauser
2.
2.
3.
max. 350°
1.
3 mm
Mounting
8 mm
A0032242
A0021430
9
