Device configuration

8.3.1 Configuring level measurement

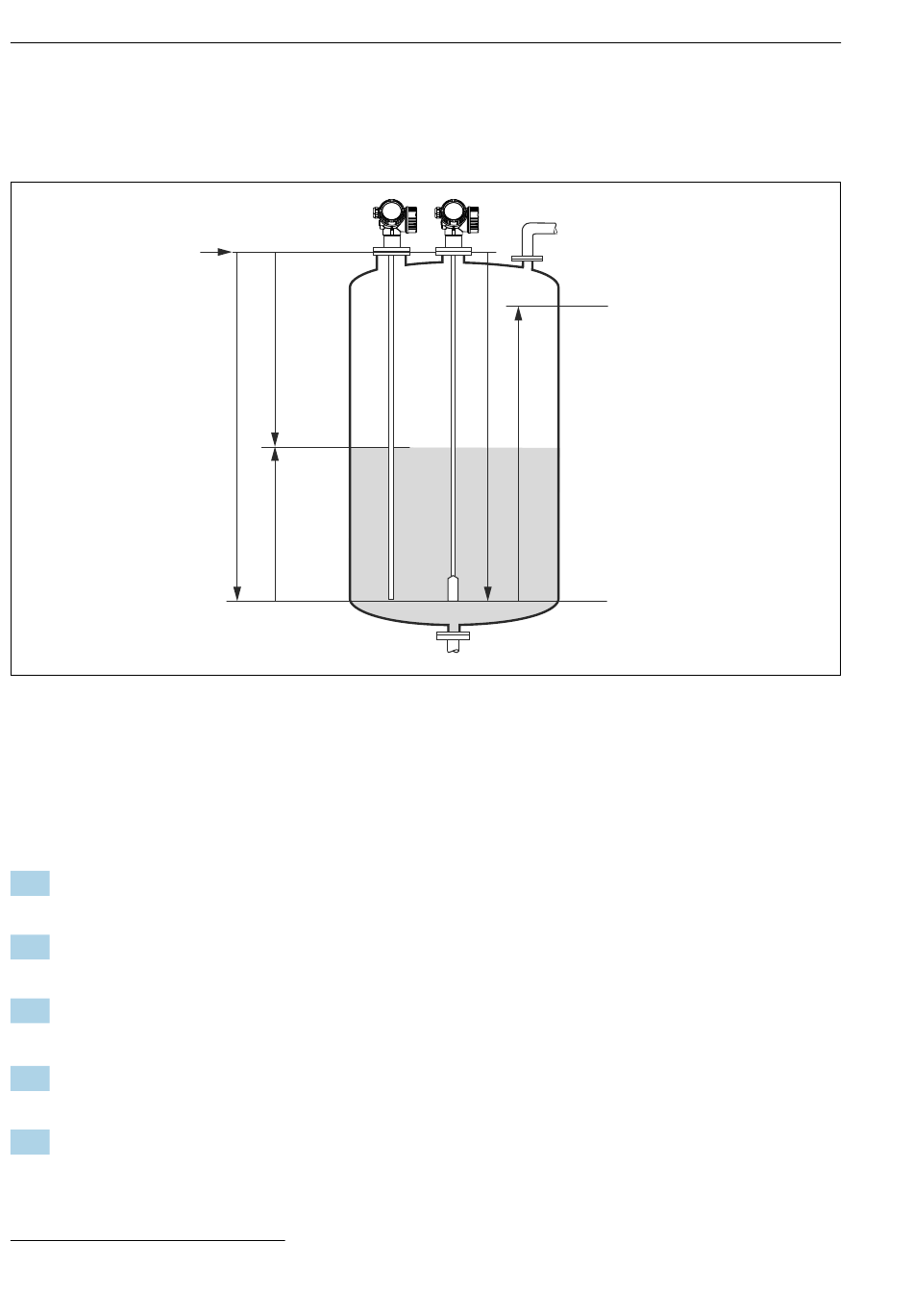

 10 Configuration parameters for level measurement in liquids
LN = Probe length
D = Distance
L = Level
1. Setup → Device tag
 Enter device tag.
2. Setup → Distance unit
 Select the length unit.
3.
Setup→Operating mode
 Select Level option.
4. Setup → Tank type
 Select tank type.
5. Setup → Tube diameter (only for "Tank type" = "Bypass / pipe")
 Specify the diameter of the bypass or stilling well.
1) Only available in devices with the "Interface measurement" application package
28
R
D
LN
L
R = Reference point of measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
1)
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
20 mA
100%
E
F
4 mA
0%
A0011360
