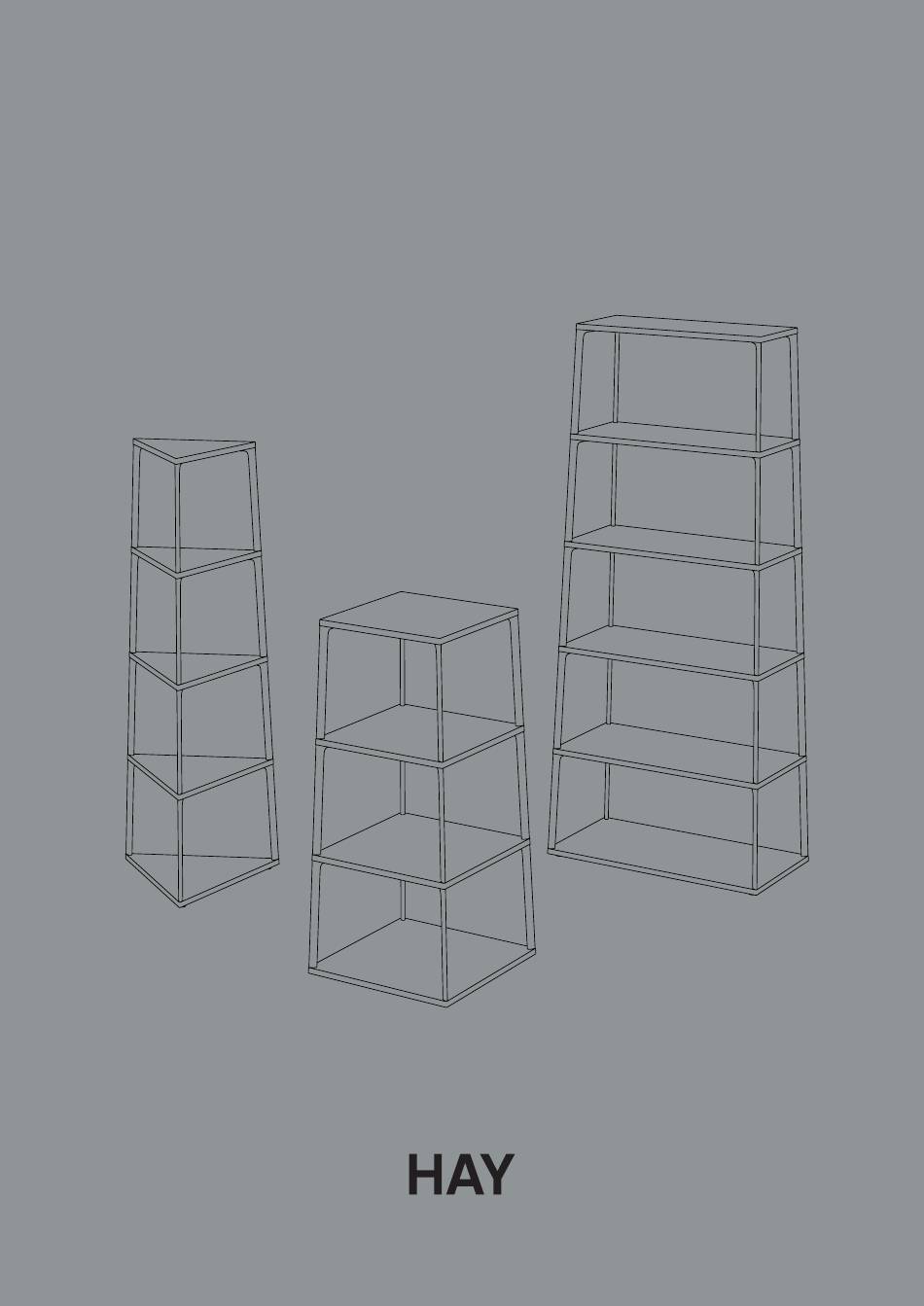

- Page 1 – INSTRUCTION MANUAL – EIFFEL SHELF DESIGN BY DEPPING & JØRGENSEN...
- Page 3 – PARTS – Shelf x1 Shelf x1 Shelf x1 Shelf x1 Shelf x1 Shelf x1 Upright x20 Screw x40 Screw x20 Screw x4 Allen key x1 5Mx12 M5x25...
- Page 4 Protect the shelves from scratches and other damage while assembling.
- Page 5 Mount 4 x parts onto the part using the parts. NOTICE Make sure to use the correct screws. The correct screws for this step are the short screws M5x12 ( parts)
- Page 6 Mount the part onto the 4 x parts using the parts.
- Page 7 Mount 4 x parts onto the part using the parts. NOTICE Make sure to use the correct screws. The correct screws for this step are the short screws M5x12 ( parts)
- Page 8 Repeat the last two steps for the parts.
- Page 9 Mount the parts onto the part.
- Page 10 Turn the shelf over (two people are recommended).
- Page 11 Done!
-
Page 12: Care And Maintenance
– CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance... - Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com 10/01/2022...
