Summary of Contents for SIGLENT SHA800A

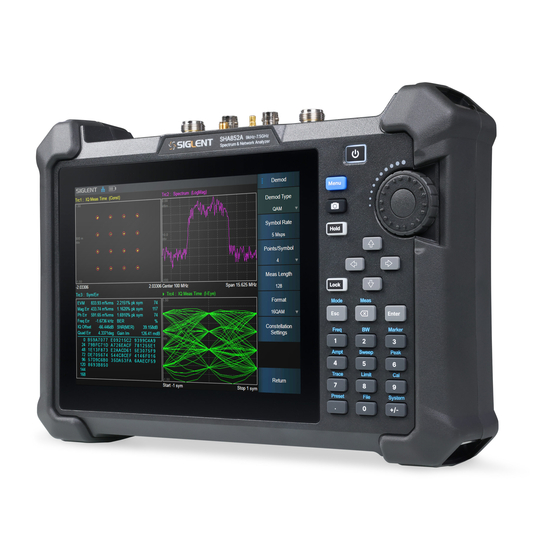

- Page 1 SHA800A Spectrum & Network Analyzer Quick Guide EN_01A Quick Guide...
-
Page 3: Guaranty And Declaration
⚫ SIGLENT products are protected by patent law worldwide. ⚫ SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. ⚫ Information in this publication replaces all previous corresponding material. -
Page 4: Table Of Contents
Guaranty and Declaration ................I Contents ...................... II Important Safety Information ............... 1 Safety Compliance..................8 General Inspection..................9 Preparing for Use..................10 Firmware Operation ................... 23 Remote Control..................25 Service and Support .................. 25 Troubleshooting ..................26 SHA800A QuickGuide... -
Page 5: Important Safety Information
Be sure to pull out the power supply when repairing the equipment. Live line operation is strictly prohibited. The equipment can only be powered on when the maintenance is completed and the maintenance is confirmed to be successful. SHA800A QuickGuide... - Page 6 Any parts of the device and its accessories are not allowed to be changed or replaced, other than authorized by the manufacturer or agent. SHA800A QuickGuide...
- Page 7 The “WARNING” symbol indicates a potential hazard. It calls attention to a procedure, practice, or condition which, if not WARNING followed, could cause bodily injury or death. If a WARNING is indicated, do not proceed until the safety conditions are fully understood and met. SHA800A QuickGuide...
- Page 8 Direct sunlight, radiators, and other heat sources should be considered when assessing the ambient temperature. Humidity Operating: 5% ~ 90 %RH, 30 ℃ , derate to 50 %RH at 40 ℃ Non-operating: 5% ~ 95% RH Altitude Operating: ≤ 3,000 m, 25 ℃ Non-operating: ≤ 12,000 m SHA800A QuickGuide...
- Page 9 15 cm (6 inch) minimum gap around the sides of the instrument. CAUTION: Do not block the ventilation holes located on both sides of the analyzer. CAUTION: Do not allow any foreign matter to enter the analyzer through the ventilation holes, etc. SHA800A QuickGuide...
- Page 10 Intentional interruption is prohibited. The position of the instrument should allow easy access to the socket. To make the instrument completely power off, unplug the instrument power cord from the AC socket. SHA800A QuickGuide...
- Page 11 Proper use of the instrument depends on careful reading of all instructions and labels. Warning: Any use of the analyzer in a manner not specified by the manufacturer may impair the instrument’s safety protection. This instrument should not be directly connected to human subjects or used for patient testing. SHA800A QuickGuide...
-
Page 12: Safety Compliance
Electrical Equipment for Measurement, Control, and Laboratory Use – Part 1: General Requirements. CAN/CSA-C22.2 No. 61010-2-030:2018. Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part 2 - 030: Particular requirements for testing and measuring circuits. SHA800A QuickGuide... -
Page 13: General Inspection
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement. Inspect the instrument If the instrument is found to be damaged, defective or fails in electrical or mechanical tests, please contact SIGLENT. -
Page 14: Preparing For Use
To deploy the tilt bracket, pull the bottom of the tilt bracket away from the back of the instrument. To retract the tilting bracket, push the bottom of the bracket toward the back of the instrument. Side View SHA800A QuickGuide... - Page 15 Power Supply Information The battery that comes with the SHA800A may need to be recharged before use. The device can use the supplied AC-DC adapter (refer to the product technical data sheet for ordering information). The specifications of the input AC power supply are: 100-240V, 50/60Hz;...
- Page 16 Complete the function control and parameter input of the analyzer, and most operations can be completed by the touch screen. Function Keys Press Lock to turn off/on the keyboard and touch functions. Three-dimensional Complete the quick adjustment and selection of knob parameters. SHA800A QuickGuide...
- Page 17 When the button light is off, the measurement is resumed. Key and touch screen lock control. When the button light is on, all key pad buttons and touch screen buttons except the Lock button are locked to prevent misoperation. SHA800A QuickGuide...
- Page 18 In menu selection mode, frequency parameters are controlled. In time domain analysis, length (distance) parameters are controlled. Menu selection mode, bandwidth class parameter control, such as RBW, VBW, IFBW and so on. SHA800A QuickGuide...
- Page 19 In the menu selection mode, you can perform file operations, such as saving and invoking files, and viewing file browsers. In menu selection mode, the system general information view, version and calibration operation, as well as input and output port Settings, screen display Settings, etc. SHA800A QuickGuide...
- Page 20 10 MHz reference clock, it Ref In automatically uses the signal as the analyzer's reference clock source. At this time the screen status bar frequency reference display external; When the external 10 MHz reference signal is lost, SHA800A QuickGuide...
- Page 21 USB slave port, TypeB. The analyzer can be used as the main device and is connected to external USB USB Host devices through this port. For example, Connect external extended memory to read files in memory, or store the current instrument state, data, SHA800A QuickGuide...
- Page 22 VXI, Socket protocol, or a web browser. 2.5mm x 5.5mm barrel connector, connected to 12V External 4A power adapter charging port, center positive. power supply Used to power devices and charge batteries. SHA800A QuickGuide...
- Page 23 RF signal should not exceed +20 dBm. WARNING Before connecting any signal, short connect the inner core of the test cable to the housing floor to release the static electricity accumulated on the inner core of the test cable. SHA800A QuickGuide...
- Page 24 SIGLENT logo Indicate the current working mode and Mode/ measurement function of the analyzer, and click to Measure switch, such as spectrum analysis mode, real-time spectrum mode, etc. Hardware Indicates the status of hardware, interfaces, etc. status bar SHA800A QuickGuide...
- Page 25 ◆ Open and drag the cursor ◆ When the mouse is connected, clicking the left mouse button has the same effect as a single touch You can turn the touch screen function on and off via Lock . SHA800A QuickGuide...
- Page 26 You can release pull items in and out, such as frequency spans, by touching and holding the trace in two locations, then pulling your finger closer to narrow the span or pulling your finger further to widen it. SHA800A QuickGuide...
-
Page 27: Firmware Operation
Enter the license key in the onscreen window. Press Enter to confirm your input and terminate the license key input. > “Load” from internal Or load the .lic file provided by pressing File memory or USB stick. The option will be enabled after rebooting. SHA800A QuickGuide... - Page 28 Firmware Upgrade Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website. Extract and copy the .ADS file into the root directory of an USB storage device. Plug the USB stick into the USB Host connector. Press System >...
-
Page 29: Remote Control
Service and Support SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor. -
Page 30: Troubleshooting
Troubleshooting Before calling SIGLENT, or returning an analyzer for service, perform the quick checks listed below. These checks may eliminate the problem. If the problem remains still, please contact SIGLENT and provide your device information in the back of the analyzer. - Page 31 Check whether the analyzer is locked in a remote control; if so, press Esc to unlock it. Do not disassemble the instrument by yourself and contact SIGLENT. The traces on the screen do not update for a long period of time: Check whether the traces are in View or other status;...
- Page 32 Calibrate the instrument regularly to reduce or avoid errors that might occur over time. If you need a specific calibration after the stated calibration period, contact SIGLENT or get paid service from authorized measurement agencies. System Message: The instrument may display prompt messages, error messages or state messages according to the current working status.
- Page 33 LAN_PLUG_OUT (151) Ethernet cable plug out IP_CONFLICT (152) IP address conflict IP_INVALID (153) IP address invalid NETM_INVALID (154) Netmask address invalid GWAY_INVALID (155) Gateway address invalid S21_NORMALIZE_DONE (183) Normalization of S21 done VNA_AUTO_CAL_DONE (184) Auto calibration of VNA done SHA800A QuickGuide...
- Page 34 Firmware upgrade failed, due to the file error FUF_DTFVERR (603) Firmware upgrade failed, due to verify the file error FUF_DTUZFERR (604) Firmware upgrade failed, due to unzip the file error LIC_INVALID (605) License is invalid! ADC_ERROR (606) Warning, ADC Overload! SHA800A QuickGuide...
- Page 36 DC power supplies, electronic loads and other general purpose test instrumentation. Since its first oscilloscope was launched in 2005, SIGLENT has become the fastest growing manufacturer of digital oscilloscopes. We firmly believe that today SIGLENT is the best value in electronic test & measurement. Headquarters: SIGLENT Technologies Co., Ltd...
