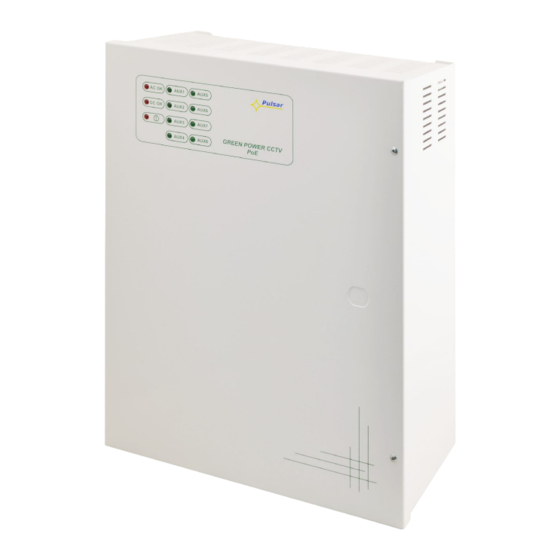

- Page 1 POE084824B v.1.0 PoE 54V/8x0,3A/4x7Ah PoE buffer power supply for up to 8 IP camera. Edition: 4 from 25.05.2015 Supersedes the edition: 3 from 15.05.2014...
-
Page 2: Table Of Contents
GREEN POWER CCTV PoE www.pulsar.pl POE084824B PSU features: FPS technical output – indication of the output DC 54V uninterruptible power supply to 8 cameras IP fuse activation– relay and OC type battery housing: 4x7Ah/12V Wide range of AC supply voltage: 88÷264V LED optical indication ... -
Page 3: Technical Description
GREEN POWER CCTV PoE www.pulsar.pl POE084824B 1. Technical description. 1.1. General description. The PSU is designed for supply of up to 8 webcams requiring stabilized voltage of 48V DC(+/-15%). The PSU supplies voltage of 54V DC and total current capacity of I=8x0,3A+0,2A Battery charging*. In case of mains power loss, the unit will instantly switch to battery operation. - Page 4 GREEN POWER CCTV PoE www.pulsar.pl POE084824B [11] Optional, external optical indication connector (factory setting) PE – grounding the shield of the RJ45 connectors (factory setting) [12] Table 1. The description of components of the PoE module. Fig. 2. Components arrangement.
-
Page 5: Technical Parameters
GREEN POWER CCTV PoE www.pulsar.pl POE084824B TAMPER – microswitch (contacts) of antisabotage protection (NC) Plate for mounting the network switch (Ethernet switch / hub) Tab. 2. Components of the PSU (see Fig. 3). 1.4 Technical parameters. - electrical parameters (Table 3) -
Page 6: Installation
GREEN POWER CCTV PoE www.pulsar.pl POE084824B Safety of use (Table 5). Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Insulation electrical strength: - between input (network) circuit and the output circuits of the PSU (I/P-O/P) 3000V/AC min. -
Page 7: Installation Procedure
GREEN POWER CCTV PoE www.pulsar.pl POE084824B 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the PSU in a selected location and lead the connecting cables. 3. If required, mount the switch network (Ethernet Switch / Hub) on the mounting plate (element 6, Figure 3) using cable ties supplied with the PSU. -
Page 8: Power Supply Operation Indication
GREEN POWER CCTV PoE www.pulsar.pl POE084824B - battery output (0V): BAT- cable / black 10. Check the optical indication of the PSU status: green LED light on the PoE module. 11. Close the cover after installing and checking the operation of the power supply. -
Page 9: Service And Operation
GREEN POWER CCTV PoE www.pulsar.pl POE084824B CAUTION! The arrangement of contacts at the figure 7 shows a potential-free status of the relay, which is equivalent to a state with no voltage at any of the AUX1 ÷ AUX8 outputs. TAMPER – output indicating enclosure opening: - volt free contact input indicating the status of the power supply doors, PSU closed: contacts closed (NC), PSU open: contacts open (NO). - Page 10 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
