Summary of Contents for Pulsar POE084832

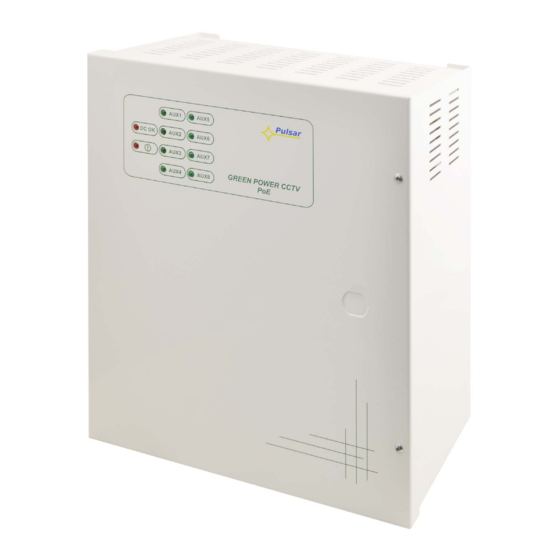

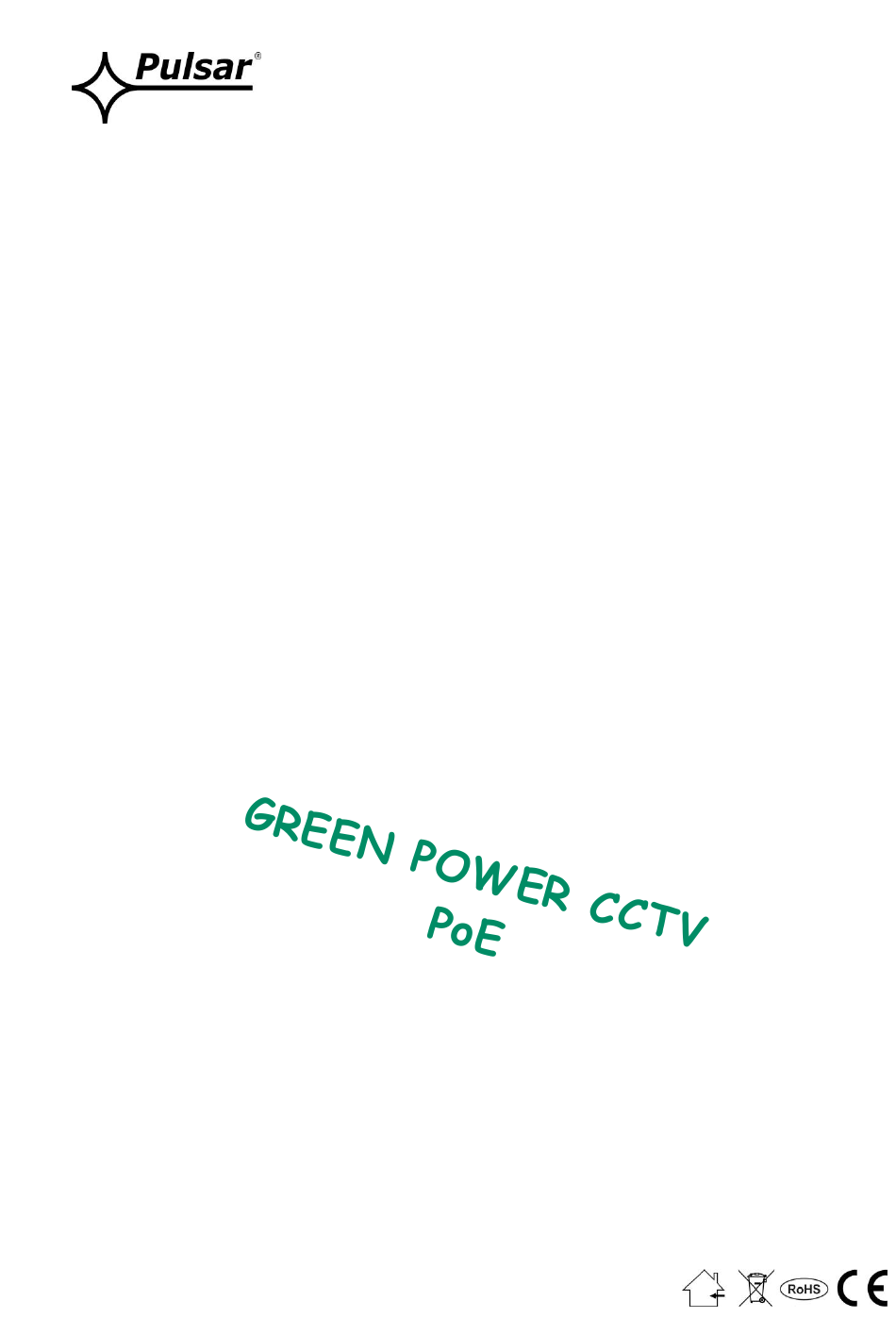

- Page 1 POE084832 v.1.0 PoE 48V/8x0,4A Switch mode power supply unit for CCTV. EN** Edition: 2 from 19.03.2014 Supersedes the edition: 1 from 26.11.2013...
-
Page 2: Table Of Contents
GREEN POWER CCTV PoE www.pulsar.pl POE084832 PSU features: FPS technical output – indication of the output supply output 8x0,4A/48V DC output voltage adjustment 46V÷ 52V DC fuse activation– relay and OC type protections: wide range of supply voltage: 176÷264V AC ... -
Page 3: Block Diagram
GREEN POWER CCTV PoE www.pulsar.pl POE084832 1.2. Block diagram. Fig. 1. Block diagram of the PSU. 1.3. The description of components and connectors of the PSU. Table 1. Component No. Description [Fig. 2] LED optical indication: – indication of voltage at the IN input... -
Page 4: Technical Parameters
GREEN POWER CCTV PoE www.pulsar.pl POE084832 Fig. 3. The view of the PSU. Component No. Description [Fig. 3] The module of the switch mode PSU LED light indicating correct operation of the switch mode PSU ADJ potentiometer – regulation of the power supply output voltage PoE module TAMPER –... -
Page 5: Installation
GREEN POWER CCTV PoE www.pulsar.pl POE084832 105% ÷ 150% of PSU power, electronic current limiting 105% ÷ 150% of PSU power, electronic current limiting Overload protection OLP 55,2÷64,8V DC Overvoltage protection OVP Surge protection 8 x varistor Antisabotage protection: - TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed), 0,5A@50V DC (max.) -
Page 6: Installation Procedure
GREEN POWER CCTV PoE www.pulsar.pl POE084832 The power supply is designed for a continuous operation and is not equipped with a power-switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an appropriate fuse in the fuse box). -
Page 7: Power Supply Operation Indication
GREEN POWER CCTV PoE www.pulsar.pl POE084832 Fig. 5. Connection of cameras and network devices to the IN and AUX terminals. 6. Use the F1/PTC1 ÷ F8/PTC8 jumpers to select the type of short circuit / overload protection of individual circuits. -
Page 8: Technical Outputs
GREEN POWER CCTV PoE www.pulsar.pl POE084832 3.1. Technical outputs. The PSU has the following indication outputs: FPS – technical output of the PSU status: - OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground – L state (0V). - Page 9 GREEN POWER CCTV PoE www.pulsar.pl POE084832...
- Page 10 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
